SF 26 DNT Multispindle автоматичний токар

SCHÜTTE SF 26 DNT Multispindle automatic lathe
Make an offer
SCHÜTTE
SF 26 DNT
1992
Belgium
Lathes - CNC multi-spindle lathes
P250618236
+32 494 …
Max. Ø
26 mm
Type of CNC
Spindle speed
3750 rpm
Weight
6500 kg
as-is, where-is
visible
24/04/2026

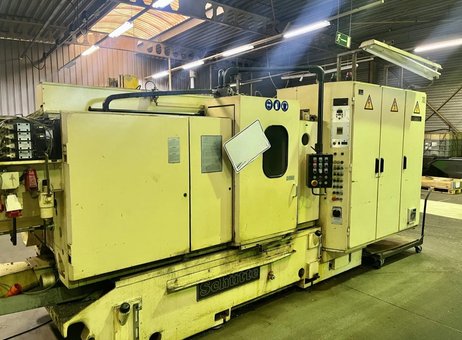

The SCHÜTTE SF 26 DNT is a large industrial multispindle automatic lathe manufactured in 1992. This machine is designed to handle rods with a maximum diameter of 26 mm for normal or round shapes, 19 mm for square, 22 mm for hexagonal, and 24 mm for octagonal profiles. It features a spindle diameter of 270 mm with a center hole diameter of 70 mm. The machine offers various slide travels including longitudinal slide travel with normal total and working travels of 80 mm and 63 mm respectively, and special total and working travels of 125 mm and 98 mm. The cross slide travels include a top slide with 40 mm total and 25 mm working travel, a middle slide with similar travel distances, and a bottom slide with 50 mm total and 31 mm working travel. The lathe provides 49 spindle speeds, ranging from 530 to 3750 rpm in range I and 236 to 1700 rpm in range II. The machine measures 3970 mm in length and 1595 mm in width, with a total weight of approximately 6500 kg. It has a yellow exterior with visible signs of wear and dirt accumulation, particularly near the base and wheels. The SCHÜTTE branding is clearly displayed on the lower front side. The machine is mounted on wheels, facilitating mobility. The control panel is equipped with multiple buttons and switches and is located on the front right side. Safety warning signs, including electrical hazard symbols, are present on the right side panel and the electrical cabinet door. The electrical cabinet itself contains wiring and control units and shows signs of use but remains intact. Internally, the lathe houses precision-machined metal components such as shafts, connectors, flexible hoses, metal tubing, hydraulic or pneumatic hoses, and metal guide rails. A transparent cylindrical fluid reservoir is mounted inside. The rotating spindle and tool holder assembly include metal cutting tools and fixtures, with metal shavings observed around the tool area, indicating recent or current use. Some dirt and metal shavings are also visible inside the machine interior. Overall, the machine presents a well-maintained interior despite external wear. SCHÜTTE multi-spindle automatic lathe
Type:SF 26 DNT
Year:1992
Largest rod diameter: normal/round:26mm, square:19mm, hexagon:22mm, octagonal:24mm
Spindle diameter:270mm
Diameter of the center hole:70mm
Longitudinal slide travel, normal (total travel/working travel):80/63mm
Special (total travel/working travel):125/98mm
Cross slide travel (total travel/working travel):
Top slide:40/25mm
Middle slide:40/25mm
Bottom slide:50/31mm
Number of spindle speeds:49
Spindle speeds:
range I:530-3750rpm
range II:236-1700rpm
Machine size-LWH:3970x1595mm
Machine weight:6500kg
