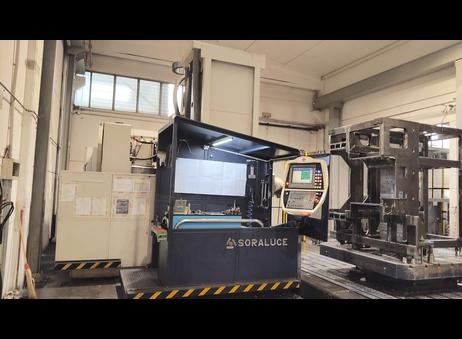

SORALUCE FS8000 cnc

SORALUCE FS8000 cnc lathe
Make an offer
SORALUCE
FS8000
2006
Italy
Lathes - CNC lathes
P250626032
+39 030 …
Turning length
1500 mm
Ø above the bed
600 mm
Ø above transversing slide
365 mm
Type of CNC
CNC Fagor 8055
Spindle taper
CL8
Spindle bore
105 mm
Number of tools on turret
8
Turning speed
1800 rpm
Tailstock
no
Bar feeder
no
revised
yes
visible
25/03/2026
This SORALUCE FS8000 CNC lathe, manufactured in 2006, offers a versatile working range suitable for various turning operations. It supports a maximum turning length of 1500 mm, with a maximum workpiece diameter of 600 mm above the bed and 365 mm above the transversing slide. The spindle bore measures 105 mm, allowing the machining of bars up to this diameter. The main spindle reaches speeds up to 1800 rpm, with a spindle nose type CL8, and a maximum power output between 9 and 13 kW, supporting efficient machining processes. The machine is equipped with an 8-position turret for tool holding, enhancing productivity and flexibility in operations. The carriage offers rapid traverse speeds of 5000 mm/min in both X and Z axes, facilitating quicker machining cycles. The counterpoint includes a quill with a 220 mm stroke and 68 mm diameter, fitted with a CM5 cone. Additional features include a Forkhardt self-centering chuck with a quick coupler, contributing to ease of workpiece setup. The machine complies with CE certification standards and includes wiring diagrams as well as use and maintenance documentation. The lathe is housed within a protective enclosure that includes internal lighting, ensuring safe and efficient operation. The control panel, located on the right side of the machine, features a screen along with various buttons and knobs for precise control. The machine and its surrounding area appear clean and well-maintained, reflecting good upkeep. Overall, this SORALUCE FS8000 is a robust and capable CNC lathe suitable for demanding turning tasks. WORKING RANGE
Max workable diameter from bar 105 mm
Max workpiece diameter 600 mm
Max diameter on carriage 365 mm
Max machinable length 1500 mm
CNC
CNC FAGOR 8055
CARRIAGE
Rapid X 5000 mm/min
Rapido Z 5000 mm/min
MAIN SPINDLE
Max rotation speed 1800 rpm
Spindle Nose CL8"
Spindle bore 105 mm
Max power 9/13 Kw
Range Change YES
COUNTERPOINT
Quill stroke 220 mm
Quill diameter 68 mm
Cone CM5
TORRET
Number of positions 8
EXTRA
Total installed power 13 Kw
Closed bezels 1
Forkhardt self-centering chuck with quick coupler
CE certification Yes
Wiring diagrams Yes
Use and maintenance books Yes
