TTS 42 cnc токар

SPINNER TTS 42 cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
SPINNER
Model
TTS 42
Year
2020
Location
Germany
Category
Lathes - CNC lathes
Product id
P231211102
Buy this machine
Language
Language
cnc струг SPINNER TTS 42
Soustruh cnc SPINNER TTS 42
cnc drejebænk SPINNER TTS 42
SPINNER TTS 42 Drehmaschine CNC
cnc τόρνος SPINNER TTS 42
SPINNER TTS 42 cnc lathe
Torno cnc SPINNER TTS 42
Tour cnc SPINNER TTS 42
cnc tokarski stroj SPINNER TTS 42
SPINNER TTS 42 cnc eszterga
Tornio cnc SPINNER TTS 42
cnc tekinimo staklės SPINNER TTS 42
SPINNER TTS 42 cnc-draaibank
Tokarka CNC SPINNER TTS 42
Torno CNC SPINNER TTS 42
strung cnc SPINNER TTS 42
SPINNER TTS 42 Токарный станок с ЧПУ
cnc strug SPINNER TTS 42
SPINNER TTS 42 cnc svarv
Cnc torna SPINNER TTS 42
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Type of CNC
FANUC Series 31i-MODEL B
Spindle taper
Turning speed
7000 rpm
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
25585
hours
state
good
At local norms
---------
status
Last availability date
24/04/2026
Show more
Automatic description (AI-Generated)

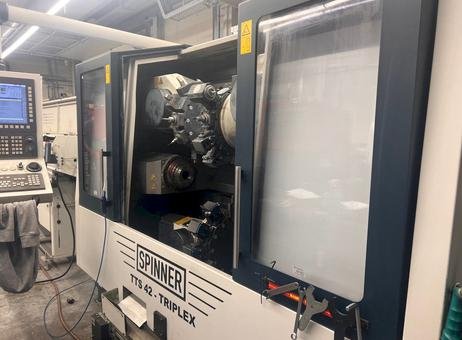

This listing features a SPINNER TTS 42 CNC lathe, manufactured in Germany in 2020. It is equipped with a FANUC Series 31i-MODEL B control unit, providing advanced CNC control capabilities. The machine's spindle speed reaches up to 7000 rpm, suitable for a variety of turning operations.

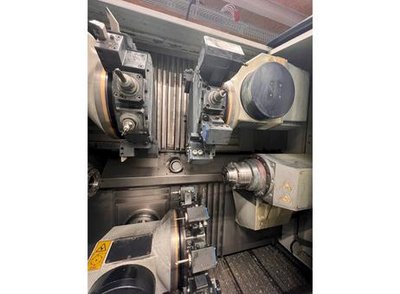

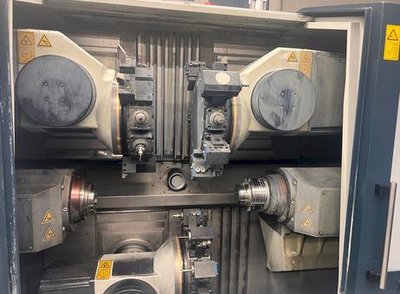

The TTS 42 is a triplex lathe, meaning it includes three spindles for simultaneous machining, enhancing productivity. It has a 12-fold tool turret with CNC servo drive, allowing for flexible and efficient tool changes. The counter spindle supports up to 42 mm diameter material, and an integrated ejector unit facilitates part removal into the parts catcher.
Additional features include a signal lamp with red, yellow, and green indicators for machine status, a hinged belt conveyor for part discharge to the right, and an integrated coolant tank with a return pump. The coolant system includes an additional tank with a submersible pump (80 liters/4 bar) and a high-pressure pump capable of up to 80 bar at 19.5 liters per minute. A flushing gun is available in the work area for cleaning purposes.
The machine bed is prepared for tool measurement with a holder for a messtaster, allowing for tool measurement switching in three axes. There is also an extraction port (diameter 200 mm) for connection to an extraction system.
The lathe is compatible with the Spinner servo bar loading machine, accommodating material diameters from 4 to 42 mm and lengths up to 3200 mm. Tool holders include 10 external turning holders, 12 boring bar holders (32 mm diameter), 3 recessed boring bar holders, 6 straight AGW holders, and 3 axial AGW holders. Materials processed include aluminum and brass.
The machine enclosure includes a control panel with buttons and a display screen on the left side. The enclosure door is closed, with tools hanging on the handle, and warning labels are visible on the machine, indicating safety considerations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This SPINNER TTS 42 Lathe was manufactured in the year 2020 in Germany and has 25585 production hours. It is equipped with a Fanuc Series 31i-MODEL B control unit. The machine has a spindle speed of 7000 rpm.
CNC: FANUC Series 31i-MODEL B
Spindle speed range: 7000 rpm
Spindle 2 (counter spindle) in version up to 7,000 rpm - 42mm
Revolver 1 : 12-fold with cnc servo drive revolver 2 : 12-speed with cnc servo drive revolver 3 : 12-speed with cnc servo drive dmjgmx
Ejector unit integrated in counter spindle for ejecting parts into the parts catcher
Signal lamp on top of machine in three colors red/yellow/green as status display
Late conveyor as hinged belt conveyor exiting to the right, incl. Integrated coolant tank and return pump
Coolant system as additional tank incl. Submersible pump 80l/4bar, high-pressure pump up to 80bar / 19. 5l/min
Flushing gun in the work area
Holder for messtaster on the machine bed as preparation for the use of a
Messtaster for tool measurement switching in 3 axes.
Extraction d=200 to the working area for connection to extraction system
Unimag interface for bar loading magazines
Parts conveyor belt

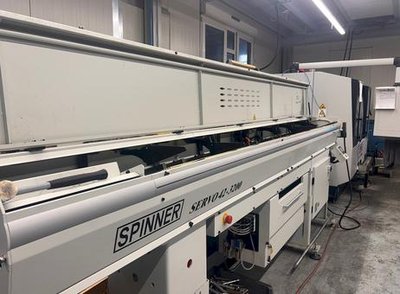

Spinner bar loading machine type servo. Make spinner, for spindles up to 42mm passage, for material d=4-42mm, length up to 3,200 mm
10x external turning holder
12x boring bar holders d=32
3x recessed boring bar holders
6x straight agw
3x axial agw
Material processed so far: aluminum, brass
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
