Зірка SV-38R Multispindle автоматичний токар

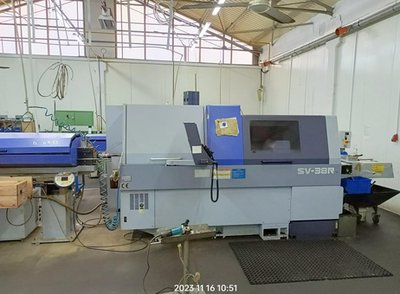

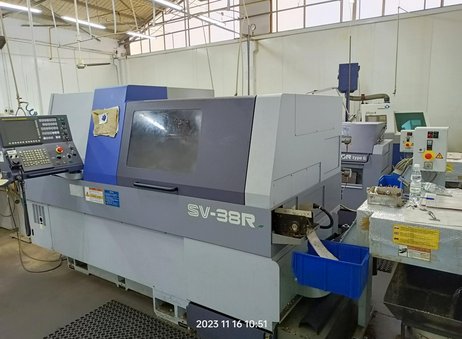

Star SV-38R Multispindle automatic lathe
Verified seller
Price on request
View price
Manufacturer
Star
Model
SV-38R
Year
2015
Location
Poland
Category
Lathes - CNC multi-spindle lathes
Product id
P231206008
Buy this machine
Language
Language
Многошпинделен автоматичен струг Star SV-38R
Multivřetenový automatický soustruh Star SV-38R
Multispindlet automatisk drejebænk Star SV-38R
Star SV-38R Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων Star SV-38R
Star SV-38R Multispindle automatic lathe
Torno multihusillos automático Star SV-38R
Tour multibroche Star SV-38R
Viševreteni automatski strug Star SV-38R
Star SV-38R Többorsós automata eszterga
Tornio multimandrino Star SV-38R
Daugialypės automatinės tekinimo staklės Star SV-38R
Star SV-38R Meerassige automatische draaibank
Wielowrzecionowy automat tokarski Star SV-38R
Torno automático multifuso Star SV-38R
Strung automat cu mai multe arbori Star SV-38R
Star SV-38R Многошпиндельный токарный станок
Automatski strug sa više vretena Star SV-38R
Star SV-38R Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı Star SV-38R
Get price & details
Details
About this seller
Specifications
Max. Ø
38 mm
Nbr of spindles
2
Max. length
350 mm
Type of CNC
FANUC Series 31i-MODEL B5
Nbr of axes
11
Number of tools
10
Spindle speed
7000 rpm
Spindle power
7.5 kW
-------------------
Length x width x height
3320.0
× 1440.0
× 1865.0
Weight
4300 kg
worked hours
hours under power
state
good
At local norms
---------
status
Last availability date
21/04/2026
Show more
Automatic description (AI-Generated)
The STAR SV-38R is a CNC automatic lathe designed for high-precision machining, manufactured by Star in 2015. This multispindle automatic lathe is engineered to handle complex and precise details, making it suitable for industries such as automotive and aerospace. It features 11 axes (X1, X2, X3, Y1, Y2, Y3, Z1, Z2, Z3, C1, C2) and two headstocks, including a main spindle and an intercepting spindle, both powered by robust engines to deliver versatile cutting capabilities.
The machine supports a maximum turning diameter of 38 mm and a maximum spindle stroke length of 350 mm. The main spindle operates at speeds up to 7000 rpm with a continuous power rating of 7.5 kW. It utilizes a combination of tool systems, including a 10-position turret and a 5-position tool post, allowing the use of rotary and driven tools. Powered tools include up to 4 tools on the tool post and 2 on the head, with rotation speeds up to 6000 rpm and 5700 rpm respectively.
Equipped with a FANUC Series 31i-MODEL B5 CNC controller, the lathe offers intuitive operation. Additional equipment includes an FMB turbo 5-55 / 3200 A bar feeder capable of handling bar diameters from 5 to 65 mm and lengths up to 3200 mm, a workpiece transporter, and an 8-spindle rear machining unit. The machine also features automatic central lubrication, hydraulic and pneumatic units, coolant level indicator, leakage switch, and workspace lighting.
The lathe measures 3320 mm in length, 1440 mm in width, and 1865 mm in height, weighing approximately 4300 kg. The enclosed work area ensures safety and cleanliness during operation. The control panel is mounted on the left side and includes a screen, multiple buttons, and an emergency stop button for operational safety. A blue plastic bin is attached on the right side for collecting parts or scrap. Overall, the machine appears clean and well-maintained with no visible damage.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
The STAR SV-38R CNC automatic lathe, manufactured in 2015 in Japan, was designed to offer unrivaled flexibility and to streamline the processing of complex details. Thanks to its wide functionality, the machine can be used in many industries, such as: automotive or aerospace industry, for precise machining of inclined surfaces, including angular holes at the front and back.
The offered STAR SV38R longitudinal automatic lathe stands out from other lathes available on the market by using as many as 11 axes and two headstocks (main spindle and intercepting spindle), driven by reliable, high-power engines. This power is used for versatile use of cutting tools taken from a tool post or a 10-position turret. To guarantee high stiffness and stability at the cutting point, the double-spindle CNC lathe uses a special system for guiding the Z-axis spindle tip through the head.
The extensive equipment of the machine includes, among others: FMB turbo 5-55 / 3200 A bar feeder, workpiece transporter and intuitive FANUC Series 31i-MODEL B5 CNC controller. The STAR MICRONICS CNC turning center weighs 4,300 kg.
Technical specifications of the STAR SV-38R CNC turning center
General information
- number of axes: 11 (X1, X2, X3, Y1, Y2, Y3, Z1, Z2, Z3, C1, C2)
- accelerated feeds in axes X1, X2, X3, Y1, Z1, Z2, Z3: 30 m/min
- accelerated feeds in the Y2 axis: 20 m/min
- accelerated feeds in the Y3 axis: 15 m/min
- maximum turning diameter: 38 mm
- coolant tank capacity: 220 l
- power consumption: 9.5 kVA
- power supply: 3x 200 V; 50/60 Hz
- noise level: 75.6 dB (A)
- dimensions (length x width x height): 3320 x 1440 x 1865 mm
- machine weight: 4300 kg
Main spindle
- maximum rotational speed: 7000 rpm
- maximum spindle stroke: 350 mm
- C axis
- engine power: 7.5 kW (continuous operation) / 11 kW (10 min/25% ED)
Intercepting spindle
- maximum rotational speed: 7000 rpm
- C axis
- engine power: 5.5 kW (continuous operation) / 7.5 kW (10 min/40% ED)
Tool heads
- tool system (tool post): rotary tools + driven tools
- tool system (turret): 10 positions
- maximum number of tools (imak): 5
- maximum number of tools (turret): 10
Pass-through handle
- number of tools: 3/socket
- maximum drilling diameter: 23 mm
- maximum threading diameter: M16 x 2.0
Powered tools
- number of tools (imak): 4
- tool rotation speed (imak): 6000 rpm
- number of tools (head): 2/socket
- tool rotation speed (head): 5700 rpm
- maximum drilling diameter (post & head): 10 mm
- maximum threading diameter (post & head): M8 x 1.25
- engine power (imak): 2.2 kW
- engine power (head): 2.7 kW (continuous operation) / 4 kW (5 min/30% ED)
Equipment of the STAR SV 38R CNC lathe

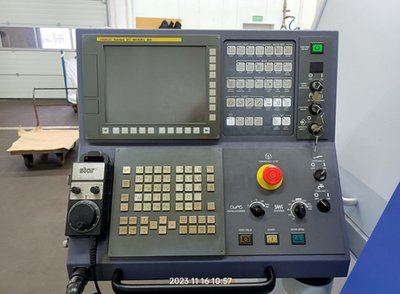

- CNC control: FANUC Series 31i-MODEL B5

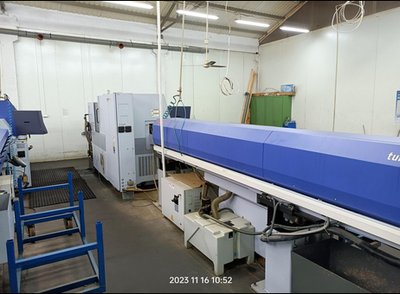

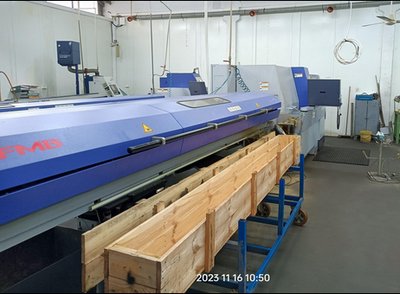

- bar feeder: FMB turbo 5-55 / 3200 A
bar diameter range: 5-65 mm
maximum bar length: 3200 mm
feed speed: 0-1000 mm/s
return speed: 0-1000 mm/s
- bar feeder connection
- 8-spindle rear machining unit
- 10-position turret
- 5-position tool post
- intercepting spindle with air blowing
- synchronous rotary guide sleeve assembly with air blowing
- collet (main spindle and intercepting spindle)
- detail transporter
- cutter breakage sensor
- automatic central lubrication
- hydraulic unit
- pneumatic unit
- coolant level indicator
- leakage switch
- lighting of the working space
- RS-232C interface
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
