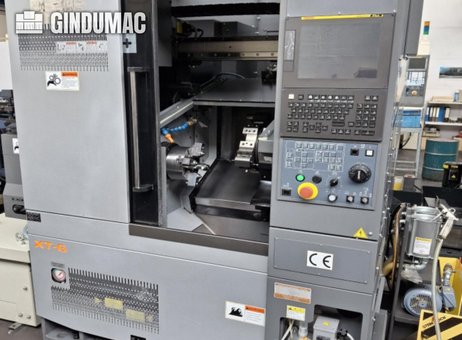

Takamaz XT 6 CNC lathe

Takamaz XT 6 CNC lathe
Top seller
Low working hours
Price on request
View price
Manufacturer
Takamaz
Model
XT 6
Year
2020
Location
Germany
Category
Lathes - CNC lathes
Product id
P260608568
Buy this machine
Language
Language
CNC струг Takamaz XT 6
CNC soustruh Takamaz XT 6
Takamaz XT 6 CNC-drejebænk
Takamaz XT 6 CNC-Drehmaschine
Τόρνος CNC Takamaz XT 6
Takamaz XT 6 CNC lathe
Torno CNC Takamaz XT 6
Tour CNC Takamaz XT 6
CNC tokarski stroj Takamaz XT 6
Takamaz XT 6 CNC esztergagép
Tornio CNC Takamaz XT 6
Takamaz XT 6 CNC tekinimo staklės
Takamaz XT 6 CNC-draaibank
Tokarka CNC Takamaz XT 6
Torno CNC Takamaz XT 6
Strung CNC Takamaz XT 6
Takamaz XT 6 Токарный станок с ЧПУ
CNC strug Takamaz XT 6
Takamaz XT 6 CNC-svarv
CNC torna Takamaz XT 6
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
240 mm
Turning Ø
180 mm
Type of CNC
Fanuc Series 0i-TF Plus
X-axis
120 mm
Z-axis
280 mm
Max workpiece weight
1 kg
Spindle taper
A25 short taper
Spindle bore
75 mm
Number of turrets
1
Number of tools on turret
8
Turning speed
4500 rpm
Spindle motor power
5.5 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
1360.0
× 1370.0
× 1700.0
Weight
2300 kg
worked hours
1559
hours
hours under power
4525
hours
state
as-is, where-is
At local norms
yes
status
Last availability date
17/06/2026
Show more
Automatic description (AI-Generated)
We present to you the Takamaz XT 6 horizontal CNC lathe, manufactured in 2020. This machine is suitable for precision turning with a maximum machined part diameter of Ø180 mm and a maximum turning length up to 240 mm, depending on the clamping device used. The spindle, with a power of 5.5 kW, reaches speeds up to 4500 rpm and provides a maximum torque of 63.6 Nm. The center height of the spindle above the floor is 950 mm, facilitating easier operation and adjustments of the machine.
The lathe features an 8-position turret head that allows direct mounting of drilling cartridges, providing flexibility in machining. The maximum bar diameter for machining is 35 mm, and the chuck size reaches up to 203 mm (8 inches). The machine has two main strokes – along the X-axis with a length of 120 mm and along the Z-axis with 280 mm, as well as rapid traverse rates of 18 m/min on X and 24 m/min on Z.
The control is a FANUC brand, model Series 0i-TF Plus, equipped with a 10.4-inch touchscreen display, ensuring easy operation and precise programming. The machine weighs 2300 kg and measures 1360 x 1370 x 1700 mm (height including the loading device).
Included is an automated Fanuc Compact Loader FC60 with 2-axis servo drive and two pneumatic grippers, suitable for parts with a diameter up to 60 mm and weight up to 1 kg, as well as integrated belt conveyor systems for feeding (800 mm) and discharge (600 mm) of parts, which facilitates automation and increases productivity.
This machine is suitable for various applications in metalworking, offering reliability and precision in performing complex tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This Takamaz XT 6 was manufactured in 2020. It features a maximum turning diameter of Ø180 mm and a maximum turning length of 240 mm. If you are looking to get high-quality turning capabilities, consider the Takamaz XT 6 horizontal turning machine we have for sale. Contact us for further details.
Brand: Takamaz
Year: 2020
Model: XT 6
Production hours: 1559
Application type: Turning
Horizontal Turning Machine
Control unit brand: FANUC
Control Unit
Control Brand: FANUC
Control Model: Series 0i-TF Plus with 10.4" Touch Display
Dimensions
Machine Height: 1700 mm
Machine Length: 1360 mm
Machine Weight: 2300 kg
Machine Width: 1370 mm
Movement
Number of Axes: 2
X-axis Travel: 120 mm
Z-axis Travel: 280 mm
Technical Specification
Counter Spindle: No
Driven Tools: No
Spindle Power: 5.5 kW
Spindle Speed: 4500 RPM
Additional Information
- Maximum Turning Diameter: Ø180 mm
- Maximum Turning Length: 240 mm (depending on clamping device)
- Rapid Traverse (X / Z): 18 / 24 m/min
- Maximum Spindle Torque: 63.6 Nm
- Spindle Bearing Inner Diameter: Ø75 mm
- Spindle Nose: A2-5 short taper
- Maximum Bar Capacity: 35 mm
- Maximum Chuck Size: 203 mm (8 inch)
- Spindle Center Height Over Floor: 950 mm

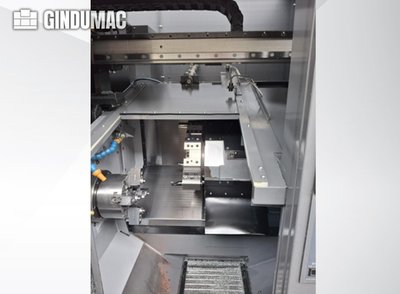

- Tool Turret: 1 x 8-station turret (Direct mounting / boring cassettes)
- Shank Height for External Turning: 20 x 20 mm
- Maximum Shank Diameter for Boring Bars: 25 mm
- Base Machine Dimensions (Footprint without accessories/transformer): 1,360 x 1,370 mm
- Overall Height with Loader: 1,700 mm
- Power Connection / Supply: 18 kVA / AC200V, 3-Phase, 50/60Hz
- Rated Power (Nameplate): 13.0 kVA
- Full Load Current: 36 A
- Interrupting/Short-Circuit Rating: 2.5 kA
- Working Hours (As of 2026/05/22 08:51:21):
- Control On Time: 4525 Hours
- Operating/Running Time: 1975 Hours
- Processing Time: 1559 Hours
- Free Use Time: 1733 Hours
- Total Parts Counter: 25,600 pieces
- Workpiece Counter: 21,801 pieces
- Included Automation Equipment:

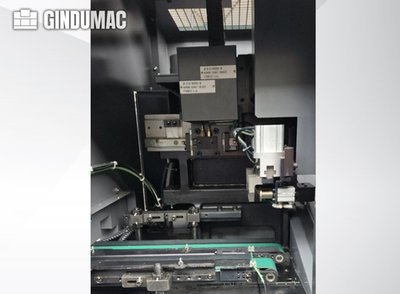

- Fanuc Compact Loader FC60 (2-axis servo loader with two parallel pneumatic grippers, max workpiece diameter 60 mm, max weight 1.0 kg per hand, 90° pneumatic tilting unit)

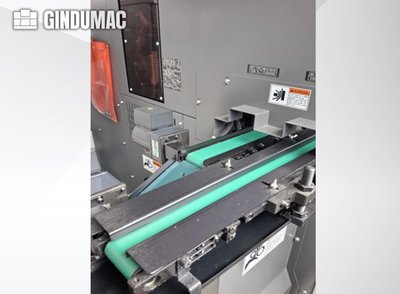

- Integrated parts infeed conveyor belt (length 800 mm)
- Integrated parts outfeed conveyor belt (length 600 mm)
Additional Equipment, not included:
- Chip conveyor
- Reinforced high-pressure coolant pump
- Power chuck
- Tool holders
- Hydraulic power pack
- SMW-Autoblok VNK 70-37 hydraulic hollow clamping cylinder
- Complete coolant system with standard pump
- Leveling elements / alignment plates
- Control cabinet with fan ventilation
- Electrical transformer
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
