TORNOS Multideco 20/6 Multispindle автоматичний токар

TORNOS Multideco 20/6 Multispindle automatic lathe
Top seller
Price on request
View price
Manufacturer
Tornos
Model
Multideco 20/6
Year
2001
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P00528081
Buy this machine
Language
Language
Tornos Multideco 20/6
Multivřetenový automatický soustruh TORNOS Multideco 20/6
Tornos Multideco 20/6
TORNOS Multideco 20/6 Automatische Mehrspindel-Drehmaschine
Tornos Multideco 20/6
TORNOS Multideco 20/6 Multispindle automatic lathe
Torno multihusillos automático TORNOS Multideco 20/6
Tour multibroche TORNOS Multideco 20/6
Tornos Multideco 20/6
Tornos Multideco 20/6
Tornio multimandrino TORNOS Multideco 20/6
Tornos Multideco 20/6
Tornos Multideco 20/6
Wielowrzecionowy automat tokarski TORNOS Multideco 20/6
Tornos Multideco 20/6
Tornos Multideco 20/6
TORNOS Multideco 20/6 Многошпиндельный токарный станок
Tornos Multideco 20/6
Tornos Multideco 20/6
Otomatik çok milli torna tezgahı TORNOS Multideco 20/6
Get price & details
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
2
Max. length
160 mm
Type of CNC
PNC-DECO
Nbr of axes
18
Spindle speed
6000 rpm
Spindle power
15 kW
-------------------
Length x width x height
3500.0
× 1600.0
× 1950.0
Weight
8500 kg
worked hours
hours under power
state
good
At local norms
---------
status
Datasheet
Tornos Multideco 20/6
Last availability date
10/03/2026
Show more
Automatic description (AI-Generated)
This listing is for a Tornos Multideco 20/6 multispindle automatic lathe, manufactured in 2001. It is a CNC machine featuring a total of 18 axes and 6 cross slides, designed for high-precision machining tasks. The lathe supports a maximum bar diameter of 20 mm and can handle workpieces up to 160 mm in length, with a longitudinal carriage way of 160 mm. The machine is equipped with 2 spindles, each spindle capable of speeds up to 6000 rpm and powered by a 15 kW motor.
The machine dimensions are 3500 mm in length, 1600 mm in width, and 1950 mm in height, with a total weight of approximately 8500 kg. It requires a total power input of 43 kVA and operates on a 50 Hz, 3-phase 400 Volt electrical supply.

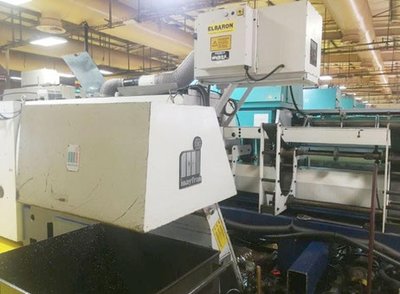

Included with the lathe are several accessories that enhance operational efficiency and convenience. These include a ROBOBAR bar loader (type MSF 522/6), a coolant system to maintain optimal machining temperatures, an ELBARON oil mist extractor for improved air quality, a chip conveyor for efficient removal of machining debris, a pick-up device, a lamp for better visibility during operation, and a status light for operational monitoring.

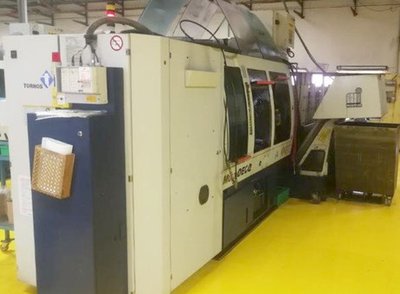

The machine features multiple doors with windows allowing internal access and visual monitoring of the machining process. The control panel is positioned on the right side of the machine for ease of operation. The lathe and its surrounding area appear well maintained and clean, indicating careful upkeep. This multispindle lathe is suitable for high-volume production, with a production capacity of approximately 45 pieces per minute, making it a robust solution for precision turning applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Technical data
Number of axis total 18
Number of cross slides 6
Plain turning slide number 5
Longitudinal carriage way 160 mm
Number back spindle 1
Capacity round bar 5 - 20 mm
Workpiece length max. 100 mm
Spindle speeds: up to 6000 rpm
Production capacity 45 pce/min
Voltage 50 Hz 3x 400 Volt
Spindle power 15 kW
Total power required 43 kVA
Various accessories:
Bar loader number of bars ROBOBAR
Type MSF 522/6
Coolant system
Oil mist extractor ELBARON
Chip conveyor
Pick-up device
Lamp
Status light
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
