TOS SU 100 VARIANT cnc lathe

TOS SU 100 VARIANT cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
TOS
Model
SU 100 VARIANT
Year
Location
Belgium
Category
Lathes - CNC lathes
Product id
P251112104
Buy this machine
Language
Language
cnc струг TOS SU 100 VARIANT
Soustruh cnc TOS SU 100 VARIANT
TOS SU 100 VARIANT cnc drejebænk
TOS SU 100 VARIANT Drehmaschine CNC
cnc τόρνος TOS SU 100 VARIANT
TOS SU 100 VARIANT cnc lathe
Torno cnc TOS SU 100 VARIANT
Tour cnc TOS SU 100 VARIANT
cnc tokarski stroj TOS SU 100 VARIANT
TOS SU 100 VARIANT cnc eszterga
Tornio cnc TOS SU 100 VARIANT
cnc tekinimo staklės TOS SU 100 VARIANT
TOS SU 100 VARIANT cnc-draaibank
Tokarka CNC TOS SU 100 VARIANT
Torno CNC TOS SU 100 VARIANT
strung cnc TOS SU 100 VARIANT
TOS SU 100 VARIANT Токарный станок с ЧПУ
cnc strug TOS SU 100 VARIANT
TOS SU 100 VARIANT cnc svarv
Cnc torna TOS SU 100 VARIANT
Get price & details
+32 (0 )…
Show phone
Details
About this seller
Specifications
Ø above the bed
1050 mm
Ø above transversing slide
730 mm
Length between centers
4000 mm
Type of CNC
FAGOR 8050/55TC
Spindle taper
Spindle bore
100 mm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
17/05/2026
Show more
Automatic description (AI-Generated)
This listing features a TOS SU 100 VARIANT CNC lathe, suitable for heavy-duty machining tasks. It has a large diameter capacity of 1050 mm over the bed and 730 mm over the transversing slide, allowing for machining of sizable workpieces. The distance between centers is 4000 mm, providing ample length for long parts. The spindle bore diameter is 100 mm, accommodating substantial tooling and workpieces. The spindle motor delivers 22 kW of power, ensuring robust performance for demanding operations.
The machine is equipped with a FAGOR 8050/55TC control system, which supports precise CNC operations. It offers a speed range from 2 to 800 RPM across three speed ranges: 2-100, 101-280, and 281-800 RPM. The lathe operates on a 400 V, 50 Hz power supply.
Additional features include a 4-jaw chuck with a diameter of 1000 mm and a 3-jaw chuck measuring 500 mm, enhancing versatility in workholding options. A steady rest with a diameter of 300 mm is included to support long or slender workpieces during machining. The machine also has a cooling system to manage heat during operation.

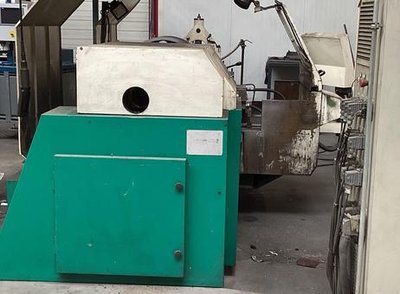

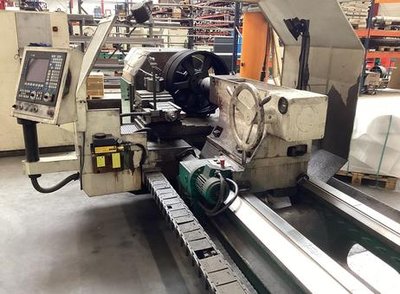

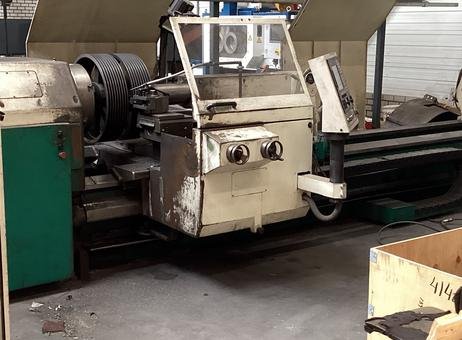

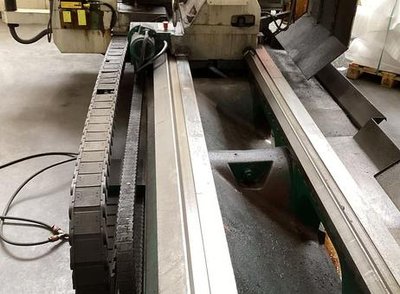

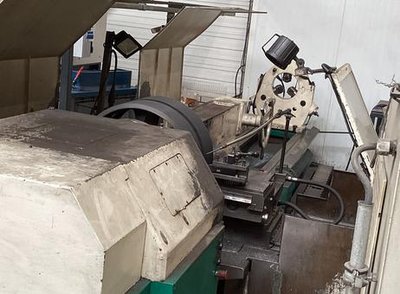

From the images, the lathe is housed within a protective enclosure, which shows signs of wear such as paint chipping on the front panel. Two handwheels are present on the front for manual adjustments, and the control panel is mounted on an arm to the right side of the machine for operator convenience. Visible signs of use include some rust and dirt on metal surfaces, indicating the machine has been in service.
This TOS SU 100 VARIANT CNC lathe is a robust machine suitable for a variety of turning applications, with comprehensive features and accessories to support complex machining tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Diameter over bed (mm) 1050
Distance between spindles (mm) 4000
Spindle bore (mm) 100
FAGOR 8050/55TC control
Max. diameter above carriage (mm) 730
Max. diameter in break (mm) 1000
R.P.M. / Speed 2-800 (3x) 2-100 / 101-280 / 281-800
kW 22
Voltage (V) 400
Hertz (Hz) 50
4-Jaw ø (mm) 1000
Steady rest ø (mm) 300
Cooling system yes
3-jaw chuck Ø 500 mm
Multifix chisel holder
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
