Traub TNL 18P Multispindle автоматичний токар

Traub TNL 18P Multispindle automatic lathe
Top seller
Price on request
View price
Manufacturer
Traub
Model
TNL 18P
Year
2011
Location
Switzerland
Category
Lathes - CNC multi-spindle lathes
Product id
P00528075
Buy this machine
Language
Language
Traub TNL 18P
Multivřetenový automatický soustruh Traub TNL 18P
Traub TNL 18P
Traub TNL 18P Automatische Mehrspindel-Drehmaschine
Traub TNL 18P
Traub TNL 18P Multispindle automatic lathe
Torno multihusillos automático Traub TNL 18P
Tour multibroche Traub TNL 18P
Traub TNL 18P
Traub TNL 18P
Tornio multimandrino Traub TNL 18P
Traub TNL 18P
Traub TNL 18P
Wielowrzecionowy automat tokarski Traub TNL 18P
Traub TNL 18P
Traub TNL 18P
Traub TNL 18P Многошпиндельный токарный станок
Traub TNL 18P
Traub TNL 18P
Otomatik çok milli torna tezgahı Traub TNL 18P
Get price & details
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
2
Max. length
180 mm
Type of CNC
TRAUB SYSTEM TX 8i-p
Nbr of axes
7
Number of tools
8
Spindle speed
8000 rpm
Spindle power
3.7 kW
-------------------
Length x width x height
2500.0
× 1460.0
× 2250.0
Weight
4000 kg
worked hours
hours under power
state
good
At local norms
---------
status
Last availability date
25/02/2026
Show more
Automatic description (AI-Generated)
This Traub TNL 18P CNC lathe machine, manufactured in 2011, is designed for high-precision turning with a maximum bar diameter capacity of 20 mm and a maximum turning length of 180 mm. It features a total of 7 axes and 2 spindles, with spindle speeds reaching up to 8,000 rpm and a spindle power of 3.7 kW. The machine dimensions are 2500 mm in length, 1460 mm in width, and 2250 mm in height, weighing approximately 4000 kg.
The lathe is equipped with two turret slides: the upper turret head has 8 tools, all driven, with spindle speeds for turning tools up to 12,000 rpm and an X-axis travel of 120 mm. The lower turret head includes 7 tools, all driven, with spindle speeds up to 6,400 rpm, and travels of 120 mm on the X-axis, 250 mm on the Z-axis, and a Y-axis range from -20 to +40 mm. The back spindle operates at speeds up to 6,400 rpm with a spindle motor power of 1.5 to 2.5 kW, and features a C-axis spindle resolution of 0.001°.

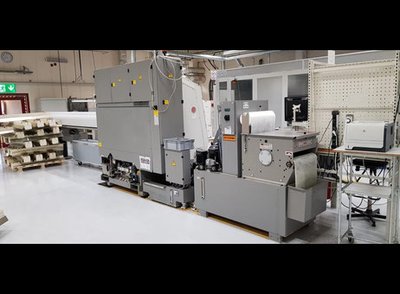

Additional features include a counter-operation with 7 tools (3 driven), a bar feeder from FMB (minimag 20) capable of handling bar lengths up to 4200 mm and diameters from 2 to 23 mm, a chip conveyor, coolant system, and a paper filter facility. The machine operates on 3x 400 Volt at 50 Hz.

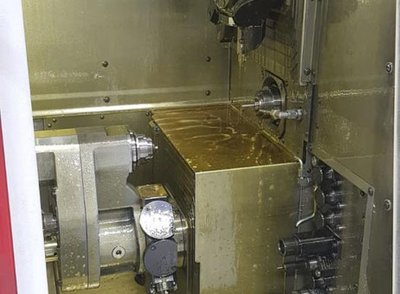

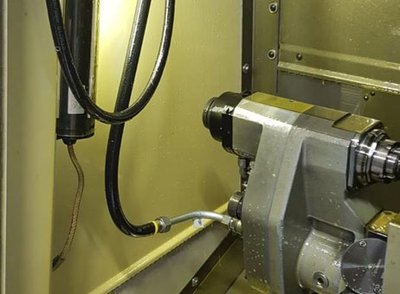

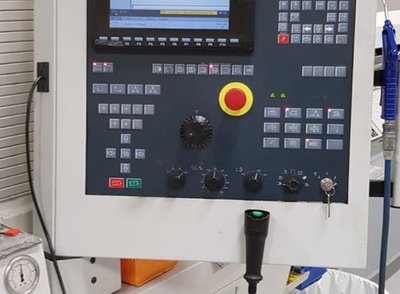

Visible accessories include a comprehensive set of tool holders, collet chucks, angle heads, and other machining attachments stored neatly in dedicated drawers. The control panel labeled 'TRAUB SYSTEM TX 81-p' includes a display screen, multiple buttons, knobs, a joystick for operation, and an emergency stop button. The machine interior shows coolant presence and some metal chips, indicating recent use but no visible damage or significant wear on mechanical components. Hydraulic and pneumatic hoses are connected to the machine components, and electrical cabinets, cooling, filtration units, and chip removal systems are integrated into the setup. The overall condition of the machine and accessories appears well-maintained and organized in a clean industrial workshop environment.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Number of axis total 7
Number of spindles 2
Turning length 180 mm
Max. bar diameter 20 mm
Spindle speeds: up to 8000 rpm
Longitudinal travel (Z-axis) 205 mm
C axis (spindle,resolution) 0.001 °
Back spindle:
up to 6400 rpm
C axis (spindle,resolution) 0.001 °
Turret slide:
number 2
Upper turret head:
number of tools 8
number of driven tools 8
Spindle speeds (turning tools) 12000 rpm
X axis 120 mm
Lower turret head:
number of tools 7
number of driven tools 7
Spindle speeds (turning tools) 6400 rpm
X axis 120 mm
Z axis 250 mm
Y axis -20 / +40 mm
Counter-operation:
number of tools 7
number of driven tools 3
Voltage 50 Hz 3x 400 Volt
Spindle motor 2.2 / 3.7 kW
Power of back spindle 1.5 / 2.5 kW
Various accessories:
Driven tools (number)
Set of toolholders
Bar feeder
Manufacturer FMB
Type minimag 20
Length of bars max. 4200 mm
Bar diameter 2 - 23 mm
Chip conveyor
Coolant system
Paper filter facility
Set of tools
Set of reducing bushes
Lamp
fire extinctor
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Frequently Asked Questions (AI-Generated)
When was this TRAUB TNL 18P manufactured?
This TRAUB TNL 18P multispindle automatic lathe was manufactured in 2011.
What accessories are included with this TRAUB TNL 18P?
This TRAUB TNL 18P includes a large quantity of accessories as part of the included equipment.
What is the condition of the equipment?
This equipment is in very good condition.
Is this TRAUB TNL 18P available for inspection?
This TRAUB TNL 18P is available for inspection in running condition.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
