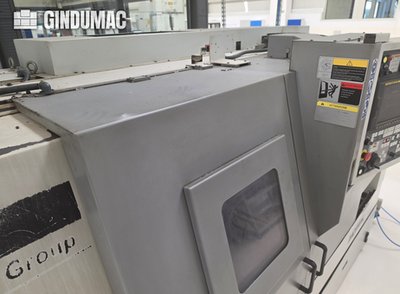

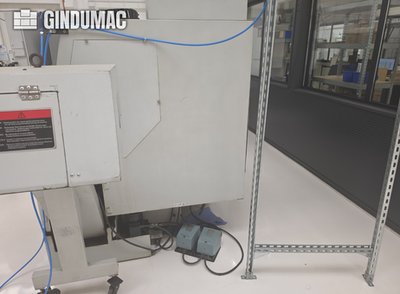

CMZ TBI-520 CNC lathe

CMZ TBI-520 CNC lathe
Top seller
View price
Request price
+34 679 …
CMZ
TBI-520
2005
Poland
Lathes - CNC lathes
Turning length
1100 mm
Turning Ø
520 mm
Ø above the bed
520 mm
Ø above transversing slide
420 mm
Length between centers
1100 mm
Type of CNC
X-axis
296 mm
Z-axis
1090 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
82 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
3000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
3700.0 × 1550.0 × 1950.0
Weight
5500 kg
as-is, where-is
Datasheet
CMZ TBI-520
11/08/2026
P260801235
This listing is for a CMZ TBI-520 slant-bed CNC turning center, manufactured in 2005. The machine is configured for medium‑to‑large turning tasks and has the following key specifications: maximum swing over the bed 520 mm, maximum swing over the cross slide 420 mm, maximum turning length approximately 1,100 mm, and distance between centers 1,100 mm. Axis travels are X = 296 mm and Z = 1,090 mm. The spindle has a bore of approximately 82 mm and a maximum spindle speed of 3,000 RPM. Machine footprint and mass: length 3,700 mm, width 1,550 mm, height 1,950 mm, weight 5,500 kg. The unit is a 2‑axis CNC lathe controlled by a FANUC Series 21i‑TB control (no counter spindle, no driven tools). The machine does not have a C‑axis and uses fixed tool holders on the turret. A hydraulic tailstock is fitted. Accessories and auxiliary systems included in the listing are a hydraulic SMW‑Autoblok chuck, chip conveyor, automatic lubrication system, coolant system and work light. Electrical supply is specified as 380 V / 50 Hz / 62 A. The machine is reported to be powered and available for inspection and is described as well maintained. Note: operating hours and certain itemized dimensions or capacities reported elsewhere in the full listing have not been restated here; please request any specific measurements or test information you require. If you would like additional technical details, documentation, or to arrange an inspection, please request further information. CNC Slant-Bed Turning Center manufactured in 2005. This CMZ TBI-520 features a maximum swing over bed of 520 mm and a maximum turning length of approximately 1,100 mm. It is equipped with a 12-station turret and a hydraulic 3-jaw chuck with a diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the CMZ TBI-520 machine we have for sale. Contact us for further details.Electrical supply: 380 V / 50 Hz / 62 A
CE compliant
Working capacity:
Max swing over bed: 520 mm
Max swing over cross slide: 420 mm
Max turning length: approx. 1,100 mm
Distance between centers: 1,100 mm
Rapid traverse:
X-axis: 18 m/min
Z-axis: 18 m/min
Spindle:
Spindle bore: approx. 82 mm
Bar capacity: approx. 77 mm
Turret:
12-station turret
Fixed tool holders only
No C-axis
Tailstock: hydraulic
Operating hours: approx. 40,135 h
Machine powered and available for inspection
Condition: well maintained
Additional equipment
Hydraulic 315 mm 3-jaw chuck (SMW‑Autoblok)

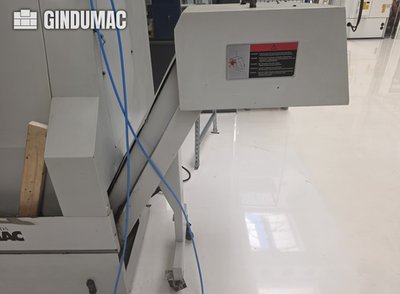

Chip conveyor
Automatic lubrication system
Coolant system
Work light
Control Brand: FANUC
Control Model: Series 21i-TB
Counter Spindle: no
Driven Tools: no
Machine Height: 1950 mm
Machine Length: 3700 mm
Machine Weight: 5500 kg
Machine Width: 1550 mm
Number of Axes: 2
Spindle Speed: 3000 RPM
X-axis Travel: 296 mm
Z-axis Travel: 1090 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
