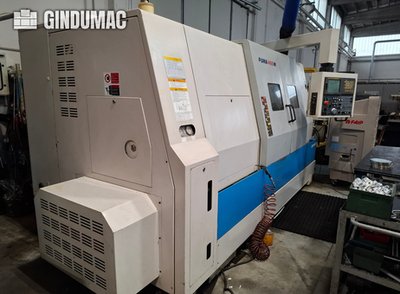

DAEWOO PUMA 400MB CNC lathe

DAEWOO PUMA 400MB CNC lathe
Top seller
View price
Request price
+34 679 …
DAEWOO
PUMA 400MB
2002
Italy
Lathes - CNC lathes
Turning length
1050 mm
Turning Ø
460 mm
Ø above the bed
700 mm
Ø above transversing slide
480 mm
Length between centers
mm
Type of CNC
X-axis
362 mm
Z-axis
1105 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
102 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
3000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
3890.0 × 2390.0 × 2240.0
Weight
9000 kg
as-is, where-is
Datasheet
Daewoo PUMA 400MB
11/08/2026
P260811082
DAEWOO PUMA 400MB (manufactured 2002) — CNC turning center with driven-tool capability and a conventional lathe footprint. Key machining capacities and machine data provided below are intended to summarize the machine’s main features and layout for technical comparison and specification checks. Work envelope and axes
- Maximum turning length (between centers equivalent): 1,050 mm
- Maximum recommended machining diameter (turning Ø): 460 mm
- Swing over bed (clearance above the bed): 700 mm
- Swing over transversing slide (saddle clearance): 480 mm
- Spindle bore (through-spindle diameter): 102 mm
- X-axis travel: 362 mm
- Z-axis travel: 1,105 mm
- Maximum spindle speed: 3,000 rpm
Machine size and mass
- Floor footprint / nominal space: 3,890 × 2,390 mm
- Machine height: 2,240 mm
- Machine weight: 9,000 kg
Controls and tooling
- Control brand: FANUC
- Control model(s) listed: Series 18T-C / 16T-C
- The machine is equipped with a tool turret and includes driven tools (driven tools: yes). A counter spindle is not fitted (counter spindle: no). Notes and use
- The specification list above is drawn from the provided machine data. If you require additional details such as turret station count, spindle motor ratings, tailstock specifications, electrical supply, or exact tooling interfaces, request the seller’s full specification sheet or inspection report. No assumptions have been made beyond the provided machine data. This 3-axis DAEWOO PUMA 400MB was manufactured in 2002. It features a maximum machining diameter of 460 mm and a maximum machining length of 1,050 mm. The machine is equipped with a spindle speed range of 30–3,000 rpm and a tool turret with 12 stations. If you are looking to get high-quality CNC turning and milling capabilities, consider the DAEWOO PUMA 400MB machine we have for sale. Contact us for further details.Working capacity:
Swing over bed: 700 mm
Swing over saddle: 480 mm
Recommended machining diameter: 315 mm
Maximum machining diameter: 460 mm
Maximum machining length: 1,050 mm
Draw tube diameter: 91 mm
Axis travel:
C: 360° (indexing increment 0.001°)
Main spindle:
Chuck diameter: 304 mm
Spindle nose: ASA A2-8
Spindle bore: 102 mm
Front spindle bearing diameter: 160 mm
Spindle motor power: 22/30 kW
Tool turret:
Tool holder type: VDI 50
External tool height: 25 mm
Maximum boring bar diameter: 50 mm
Turret indexing time: 0.25 s
Driven tools:
Speed range: 30–3,000 rpm
Motor power: 3.7/5.5 kW
Maximum collet capacity: 25 mm
Maximum tapping capacity: M20
Feed rates:
X-axis rapid traverse: 16,000 mm/min
Z-axis rapid traverse: 20,000 mm/min
X-axis feed motor power: 3.8 kW
Z-axis feed motor power: 5.0 kW
Tailstock:
Quill diameter: 120 mm
Quill taper: MT6
Quill travel: 120 mm
Electrical data:
Power requirement: 50 kVA
Coolant pump power: 0.24 kW
Floor space: 3,890 × 2,390 mm
Control Brand: FANUC
Control Model: Series 18T-C / 16T-C
Counter Spindle: no
Driven Tools: yes
Machine Height: 2240 mm
Machine Weight: 9000 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 30 kW
Spindle Speed: 3000 RPM
X-axis Travel: 362 mm
Z-axis Travel: 1105 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
