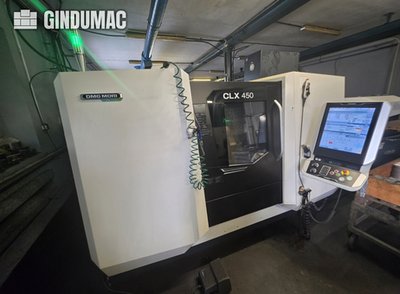

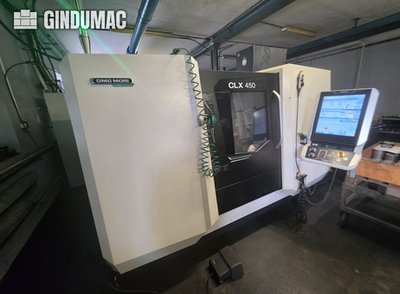

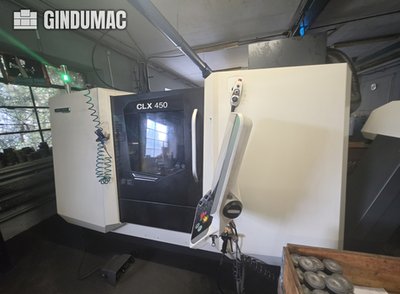

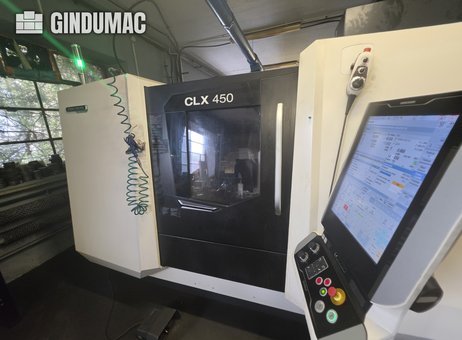

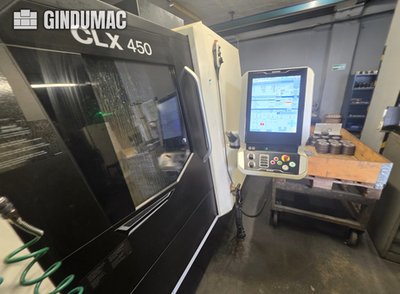

DMG MORI CLX 450 V3 CNC lathe
34.00 €
Negotiable
| Condition | gebraucht |
|---|---|
| Manufacturer | DMG |
| Year of manufacture | 2023 |
| Manufacturer | DMG MORI |
| Model | CLX 450 V3 |
| Year | 2023 |
| Location | Poland |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Type of CNC | Moric T5F CNC Control |
| X-axis | mm |
| Z-axis | mm |
| Spindle taper | JIS A2-8 |
| Spindle bore | mm |
| Number of tools on turret | 12 |
| Turning speed | rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 5900 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Dmg Mori CLX 450 V3 |
| Last availability date | 08/10/2026 |
| Product id | P261005209 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2038 |
| Last activity | Oct. 10, 2026 |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Length between centers | mm |
| Max workpiece weight | kg |
Description
This 3-axis DMG MORI CLX 450 V3 was manufactured in 2023. It features a maximum turning diameter of 400 mm and a turning length of 800 mm, with an X-axis travel of 271 mm and Z-axis travel of 830 mm. The machine includes a 12-position VDI 40 turret and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V3 horizontal turning machine we have for sale. Contact us for further details.Number of controlled axes: 3 (X, Z, C)
Spindle operating hours: approx. 7,032 h
Working capacity
Max turning diameter: 400 mm
Max turning length: 800 mm
Swing over bed: 700 mm
Swing over cross slide: 500 mm
Axes
Rapid traverse X/Z: 30 m/min
Main spindle C-axis
No Y-axis, no counter spindle
Main spindle
Spindle nose: A2-8
Bar capacity: 80 mm
Spindle power: 25.5 kW (40% duty) / 17 kW (continuous)
Spindle torque: 426 Nm (40% duty) / 283 Nm (continuous)
Tool turret and driven tools
Turret: 12-position VDI 40 with 6 additional BT stations
Driven tools: max 4,000 rpm, 5.44 kW (40% duty), 20 Nm (40% duty)
Tailstock
Tailstock travel: 800 mm
Centre taper: MT5
Max thrust: 8 kN
Construction
45° inclined cast-iron bed
Linear guideways
Control Brand: SIEMENS
Control Model: 840D SLIMline Multi-Touch
Counter Spindle: no
Driven Tools: yes
Machine Weight: 5900 kg
Number of Axes: 3
Tool Stations: 12
Spindle Power: 25.5 kW
Spindle Speed: 4000 RPM
X-axis Travel: 271 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
