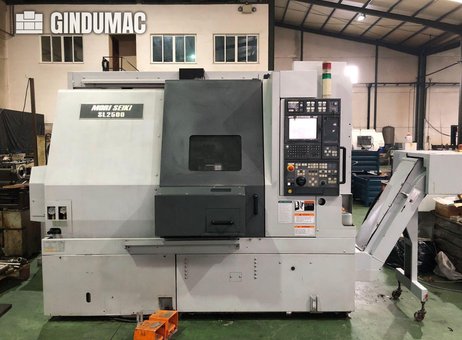

DMG Mori Seiki SL 2500 Y CNC lathe
34.00 €
Negotiable
| Condition | gebraucht |
|---|---|
| Manufacturer | DMG |
| Year of manufacture | 2005 |
| Manufacturer | DMG Mori Seiki |
| Model | SL 2500 Y |
| Year | 2005 |
| Location | Spain |
| Category | Lathes - CNC lathes |
| Turning length | 750 mm |
| Turning Ø | 800 mm |
| Ø above the bed | 525 mm |
| Ø above transversing slide | 520 mm |
| Length between centers | 2000 mm |
| X-axis | 41 mm |
| Z-axis | 280 mm |
| Max workpiece weight | kg |
| Spindle bore | 119 mm |
| Turning speed | 2000 rpm |
| Spindle motor power | 30 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | 5800 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | DMG Mori Seiki SL 2500 Y |
| Last availability date | 06/09/2026 |
| Product id | P260818183 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2002 |
| Last activity | Sept. 10, 2026 |
| Type of CNC | fagor |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | A2‑6 |
| Number of tools on turret | 12 |
Description
This 4-axis DMG Mori Seiki SL 2500 Y was manufactured in 2005. It features a maximum swing diameter of 755 mm and a machining diameter of 390 mm, with a maximum machining length of 655 mm. The machine includes a 12-station turret and a programmable hydraulic tailstock. If you are looking to get high-quality turning and milling capabilities, consider the DMG Mori Seiki SL 2500 Y turn-mill centre we have for sale. Contact us for further details.Capacity & working area:
Max. swing diameter: 755 mm
Max. machining diameter: 390 mm
Max. machining length: 655 mm
Bar capacity: 75 mm
Rapid traverse: 18 m/min (X) / 24 m/min (Z)
Guideways: Box ways on all axes
Main spindle & headstock:
Spindle torque: 640 Nm
Spindle nose: A2-8
Chuck: 250 mm Kitagawa B-210 (metric)
Cooling: Daikin spindle oil chiller
Turret & live tooling:
12-station turret (all stations motorized)
Turret indexing time: 0.2 s
Live tooling speed: 4,000 RPM
Live tooling motor: 5.5 kW
Tailstock & axes:
Axis configuration: 4-axis (X, Z, Y, C)
Tailstock: Programmable hydraulic tailstock
Tailstock taper: MT5 Morse taper
Control, software & measuring:
3D graphic simulation via proprietary CAM software
Cycle time verification
Automatic load control & tool wear monitoring
Tool measurement: Automatic Renishaw tool presetter arm
Connectivity: USB, PCMCIA, RS-232
Additional equipment
Bar feeder interface (machine prepared)
Interface for Autoblok hydraulic steady rest (ready for installation)
Automatic parts catcher
Hinge-type side chip conveyor
Large assortment of static and live tool holders
Dual foot pedal (main chuck & tailstock operation)
Electrical transformer
Complete documentation: Parts list, electrical schematics, programming & operating manuals
Counter Spindle: no
Driven Tools: yes
Machine Weight: 5800 kg
Number of Axes: 4
Spindle Power: 18.5 kW
Spindle Speed: 3500 RPM
Y-axis Travel: 120 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Max. swing diameter: 755 mm
Max. machining diameter: 390 mm
Max. machining length: 655 mm
Bar capacity: 75 mm
Rapid traverse: 18 m/min (X) / 24 m/min (Z)
Guideways: Box ways on all axes
Main spindle & headstock:
Spindle torque: 640 Nm
Spindle nose: A2-8
Chuck: 250 mm Kitagawa B-210 (metric)
Cooling: Daikin spindle oil chiller
Turret & live tooling:
12-station turret (all stations motorized)
Turret indexing time: 0.2 s
Live tooling speed: 4,000 RPM
Live tooling motor: 5.5 kW
Tailstock & axes:
Axis configuration: 4-axis (X, Z, Y, C)
Tailstock: Programmable hydraulic tailstock
Tailstock taper: MT5 Morse taper
Control, software & measuring:
3D graphic simulation via proprietary CAM software
Cycle time verification
Automatic load control & tool wear monitoring
Tool measurement: Automatic Renishaw tool presetter arm
Connectivity: USB, PCMCIA, RS-232
Additional equipment
Bar feeder interface (machine prepared)
Interface for Autoblok hydraulic steady rest (ready for installation)
Automatic parts catcher
Hinge-type side chip conveyor
Large assortment of static and live tool holders
Dual foot pedal (main chuck & tailstock operation)
Electrical transformer
Complete documentation: Parts list, electrical schematics, programming & operating manuals
Counter Spindle: no
Driven Tools: yes
Machine Weight: 5800 kg
Number of Axes: 4
Spindle Power: 18.5 kW
Spindle Speed: 3500 RPM
Y-axis Travel: 120 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
