EMCO EMCOTURAL E65 CNC lathe

EMCO EMCOTURN E65 CNC lathe
Top seller
Price on request
View price
Manufacturer
EMCO
Model
EMCOTURN E65
Year
2018
Location
Slovenia
Category
Lathes - CNC lathes
Product id
P260422161
Buy this machine
Language
Language
CNC струг EMCO EMCOTURN E65
CNC soustruh EMCO EMCOTURN E65
EMCO EMCOTURN E65 CNC-drejebænk
EMCO EMCOTURN E65 CNC-Drehmaschine
Τόρνος CNC EMCO EMCOTURN E65
EMCO EMCOTURN E65 CNC lathe
Torno CNC EMCO EMCOTURN E65
Tour CNC EMCO EMCOTURN E65
CNC tokarski stroj EMCO EMCOTURN E65
EMCO EMCOTURN E65 CNC esztergagép
Tornio CNC EMCO EMCOTURN E65
EMCO EMCOTURN E65 CNC tekinimo staklės
EMCO EMCOTURN E65 CNC-draaibank
Tokarka CNC EMCO EMCOTURN E65
Torno CNC EMCO EMCOTURN E65
Strung CNC EMCO EMCOTURN E65
EMCO EMCOTURN E65 Токарный станок с ЧПУ
CNC strug EMCO EMCOTURN E65
EMCO EMCOTURN E65 CNC-svarv
CNC torna EMCO EMCOTURN E65
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
520 mm
Turning Ø
500 mm
Ø above the bed
610 mm
Ø above transversing slide
85 mm
Length between centers
682 mm
Type of CNC
Siemens SINUMERIK 828D
X-axis
260 mm
Z-axis
610 mm
Spindle taper
Spindle bore
73 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
5000 rpm
Spindle motor power
18 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3450.0
× 2800.0
× 2060.0
Weight
6500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Emco EMCOTURN E65
Last availability date
21/05/2026
Show more
Automatic description (AI-Generated)
This EMCO EMCOTURN E65 CNC lathe, manufactured in 2018, is a versatile 4-axis turn-mill center designed for precision machining. It features a maximum turning diameter of 500 mm and a maximum turning length of 520 mm, suitable for a wide range of workpieces. The machine's work area includes a swing over bed diameter of 610 mm and a distance between centers of 682 mm, providing ample space for various turning operations.
The lathe is equipped with a Siemens SINUMERIK 828D control system, known for its reliability and user-friendly interface. The main spindle has a bore diameter of 73 mm and can reach speeds up to 5000 rpm, enabling efficient machining of diverse materials. The machine includes a VDI 30 turret with 12 tool stations and driven tools, allowing for complex machining processes and enhanced versatility.
Additional features include a hydraulic tailstock with a travel of 500 mm and a force capacity of 8000 N, which supports longer workpieces securely during machining. The machine's feed drives offer rapid traverse speeds of up to 30 m/min on the X and Z axes, with feed thrusts of 5000 N and 7000 N respectively, ensuring precise and stable tool movements.
The physical dimensions of the machine are 3450 mm in length, 2800 mm in width, and 2060 mm in height, with a total weight of 6500 kg. The robust construction and comprehensive capabilities make this EMCO EMCOTURN E65 suitable for demanding turning and milling tasks.

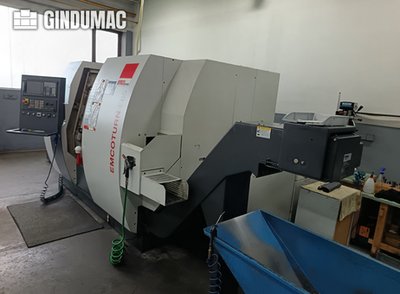

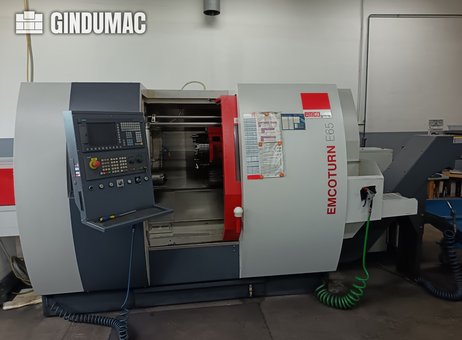

The machine is shown with its control panel featuring a screen and buttons on the left side, and the work area includes a chuck and tool turret visible inside the open door. A coiled air hose is connected to the machine, indicating readiness for pneumatic operations or cleaning.
This EMCO EMCOTURN E65 CNC lathe offers advanced machining capabilities with a combination of precision, power, and flexibility, making it an excellent choice for various industrial applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 4-axis EMCO EMCOTURN E65 was manufactured in 2018. It features a maximum machining diameter of Ø500 mm and a maximum machining length of 520 mm. The machine is equipped with a Siemens SINUMERIK 828D control system and offers driven tools for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the EMCO EMCOTURN E65 turn-mill centre we have for sale. Contact us for further details regarding this machine.Work area:
Swing over bed: Ø610 mm
Swing over cross slide: Ø360 mm
Distance between centers: 682 mm
Distance between spindle noses: 840 mm
Max. machining diameter: Ø500 mm
Max. machining length: 520 mm
Max. bar capacity: Ø65 mm
Main spindle (belt driven):
Torque (40% DC): 305 Nm
Spindle nose: A2-6
Bearing Ø: 105 mm
Spindle bore: Ø73 mm
Max. chuck size: Ø250 mm
Counter spindle:
Speed: 60–5000 rpm
Power (40% DC): 11 / 16.5 kW
Torque (40% DC): 80 / 125 Nm
Spindle nose: A2-6
Spindle bore: Ø73 mm
Max. chuck: Ø200 mm
C-axis:
Resolution: 0.001°
Rapid speed: 100 rpm
Turret (VDI30):
Tool stations: 12
Driven tools: yes
Max. speed: 5000 rpm
Max. power: 6.7 kW
Max. torque: 25 Nm
Indexing time: 0.2 s
Rotary tools (VDI30):
Speed: 0–5000 rpm
Torque: 25 Nm
Power: 6.7 kW
Feed drives:
Rapid traverse (X/Y/Z): 30 / 15 / 30 m/min
Feed thrust X: 5000 N
Feed thrust Z: 7000 N
Acceleration: 0.4 m/s²
Tailstock:
Travel: 500 mm
Force: 8000 N
Taper: MT4
Coolant system:
Tank capacity: 230 l
Pump power: 0.57 / 2.2 kW
Pressure: 3.5 bar (optional 14 bar)
Flow rate: 15 / 65 l/min
Hydraulic unit:
Tank: 10 l
Max. pressure: 50 bar
Pneumatics:
Pressure: 6 bar
Air consumption: 5 l/min
Power supply:
Voltage: 3x400V
Frequency: 50/60 Hz
Connected load: 25 / 39 kVA
Noise level:
Average: 75 dB(A)
Key features:
C-axis main spindle
Driven tools
Hydraulic tailstock
ShopTurn programming
USB + Ethernet
15" touchscreen + 3D simulation
CE documentation
Additional equipment

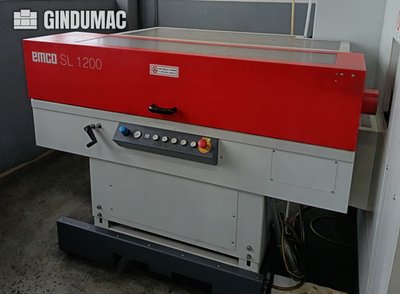

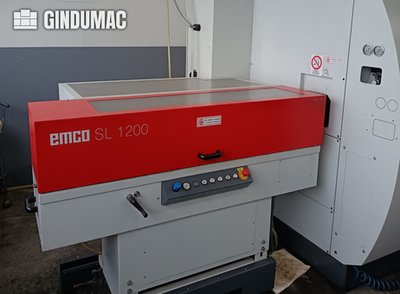

Bar feeder: EMCO SL1200
Bar diameter: 8–95 mm
Bar length: 150–1200 mm
Feed rate: 60 m/min
Capacity: 10 bars Ø55 mm / 70 bars Ø8 mm
Weight: ~500 kg
Collet chuck: HAINBUCH BZI 100 (A2-8)
Max. capacity: Ø100 mm
Incl. part stop
Max. speed: 5000 rpm
Parts catcher:
Max. length: 175 mm
Max. diameter: 65 mm (optional 95 mm)
Max. weight: 4.5 kg
Chip conveyor:
Length: 1200 mm
Suitable for: long chips, snarled chips, dry & wet machining
Coolant pistol (Multiflow):
Adjustable jet + solenoid valve
Magnetic holder + spiral hose
Control Brand: SIEMENS
Control Model: SINUMERIK 828D
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2060 mm
Machine Length: 3450 mm
Machine Weight: 6500 kg
Machine Width: 2800 mm
Number of Axes: 4
Spindle Power: 22 kW
Spindle Speed: 5000 RPM
Taper Size: VDI 30
X-axis Travel: 260 mm
Y-axis Travel: 80 mm
Z-axis Travel: 610 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
