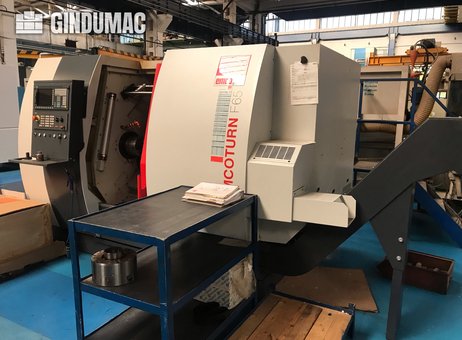

EMCO turn 65 CNC lathe

EMCO turn 65 CNC lathe
Top seller
89,000 €
Make an offer
Contact seller
+34 679 …
EMCO
turn 65
2019
Czech Republic
Lathes - CNC lathes
Turning length
520 mm
Turning Ø
500 mm
Ø above the bed
610 mm
Ø above transversing slide
360 mm
Length between centers
682 mm
Type of CNC
siemens
X-axis
260 mm
Z-axis
610 mm
Spindle taper
a26
Spindle bore
73 mm
Number of tools on turret
12
Turning speed
5000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Length x width x height
2800.0 × 3450.0 × 2060.0
Weight
6500 kg
as-is, where-is
Datasheet
Emco turn 65
11/08/2026
P260807105
Overview
This listing is for an EMCO Emcoturn 65 3‑axis horizontal turning machine (brand: EMCO, model: Emcoturn 65, year: 2019). The machine is described with 3 axes and a SIEMENS control unit. Total production hours are listed as 3,716. Key working envelope and travels
- Max. machining diameter: Ø500 mm
- Max. machining length: 520 mm
- X‑axis travel: 260 mm
- Y‑axis travel: 40 mm
- Z‑axis travel: 610 mm
- Swing over bed: Ø610 mm
- Swing over cross slide: Ø360 mm
- Distance between centers: 682 mm
- Distance between spindle noses: 840 mm
- Max. bar capacity: Ø65 mm
Spindles, tooling and turret
- Number of spindles: 2 (note: see inconsistency below)
- Main spindle power: 17 / 22 kW
- Counter spindle power: 11 / 16.5 kW
- Spindle speed range: 60 – 5000 rpm
- Spindle bore: Ø73 mm
- Main spindle bearing Ø: 105 mm
- Main spindle torque (40% DC): 305 Nm
- Counter spindle torque (40% DC): 80 / 125 Nm
- Main spindle nose: A2‑6; counter spindle nose: A2‑6
- Max. chuck size (main): Ø250 mm; counter spindle max. chuck: Ø200 mm
- C‑axis resolution: 0.001°
- Turret type: VDI30, 12 tool slots
- Rotary/rotating tools: VDI30, speed 0–5000 rpm, power up to 6.7 kW, torque up to 25 Nm, turret indexing time 0.2 s
Auxiliaries, pumps and supplies
- Lubrication tank: 10 l
- Pump drive power: 0.57 / 2.2 kW
- Coolant system tank capacity: 230 l; coolant flow rate: 15 / 65 l/min
- Hydraulic unit max pressure: 50 bar
- Air pressure: 6 bar; air supply 5 l/min
- Cooling pressure: 3.5 bar (optional 14 bar)
Dimensions and weight
- Machine height: 2060 mm
- Machine length: 2800 mm
- Machine width: 3450 mm
- Machine weight: 6500 kg
Notes and important inconsistencies
The provided specification contains an internal inconsistency: one line states “Counter Spindle: No” while other items list two spindles and provide detailed counter spindle specifications (power, torque, max. chuck, spindle nose). Please verify whether a counter spindle is fitted on the specific machine. Also verify any items of interest (condition, functional status, accessories, tooling, chucking equipment) with the seller prior to purchase, as no operational condition or testing status is stated in the specification. This 3-axis EMCO Emcoturn 65 was manufactured in 2019. It features a maximum machining diameter of Ø500 mm and a maximum machining length of 520 mm. The machine offers an impressive X-axis travel of 260 mm and Z-axis travel of 610 mm. If you are looking to get high-quality turning capabilities, consider the EMCO Emcoturn 65 horizontal turning machine we have for sale. Contact us for further details. Overview
brand: EMCO
year: 2019
MODEL: Emcoturn 65
production hours: 3716
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: SIEMENS
Technical Information - EMCO Emcoturn 65
Control Unit
Control Brand: SIEMENS
Dimensions
Machine Height: 2060 mm
Machine Length: 2800 mm
Machine Weight: 6500 kg
Machine Width: 3450 mm
Movement
Number of Axes: 3
X-axis Travel: 260 mm
Y-axis Travel: 40 mm
Z-axis Travel: 610 mm
Technical Specification
Counter Spindle: No
Driven Tools: No
Through-spindle Coolant: No
Additional Information
Number of spindles: 2
Spindle motor power: Main spindle: 17 / 22 kW; Counter spindle: 11 / 16.5 kW
Spindle speed range: 60 – 5000 rpm
Spindle bore: Ø73 mm
Number of tool slots: 12
Rotating tools: yes
Lubrication tank: 10 l
Pump drive power: 0.57 / 2.2 kW
Air pressure: 6 bar
Cooling pressure: 3.5 bar (optional 14 bar)
Air supply: 5 l/min
Swing over bed: Ø610 mm
Swing over cross slide: Ø360 mm
Distance between centers: 682 mm
Distance between spindle noses: 840 mm
Max. machining diameter: Ø500 mm
Max. machining length: 520 mm
Max. bar capacity: Ø65 mm
Main spindle spindle nose: A2-6
Main spindle bearing Ø: 105 mm
Main spindle torque (40% DC): 305 Nm
Max. chuck size: Ø250 mm
Counter spindle torque (40% DC): 80 / 125 Nm
Counter spindle spindle nose: A2-6
Counter spindle max. chuck: Ø200 mm
C-axis resolution: 0.001°
Turret type: VDI30
Turret max. speed: 5000 rpm
Turret max. power: 6.7 kW
Turret max. torque: 25 Nm
Turret indexing time: 0.2 s
Rotary tools: VDI30
Rotary tools speed: 0 – 5000 rpm
Rotary tools torque: 25 Nm
Rotary tools power: 6.7 kW
Coolant system tank capacity: 230 l
Coolant system flow rate: 15 / 65 l/min
Hydraulic unit max pressure: 50 bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
