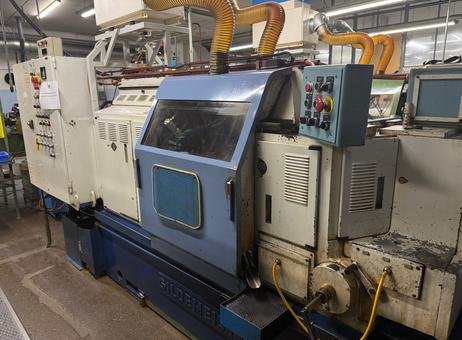

GILDEMEISTER AS 20 Multispindle automatic lathe

GILDEMEISTER AS 20 Multispindle automatic lathe
Top seller
Price on request
View price
Manufacturer
GILDEMEISTER
Model
AS 20
Year
Location
Switzerland
Category
Lathes - CNC multi-spindle lathes
Product id
P260130047
Buy this machine
Language
Language
Многошпинделен автоматичен струг GILDEMEISTER AS 20
Multivřetenový automatický soustruh GILDEMEISTER AS 20
GILDEMEISTER AS 20 Multispindlet automatisk drejebænk
GILDEMEISTER AS 20 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων GILDEMEISTER AS 20
GILDEMEISTER AS 20 Multispindle automatic lathe
Torno multihusillos automático GILDEMEISTER AS 20
Tour multibroche GILDEMEISTER AS 20
Viševreteni automatski strug GILDEMEISTER AS 20
GILDEMEISTER AS 20 Többorsós automata eszterga
Tornio multimandrino GILDEMEISTER AS 20
Daugialypės automatinės tekinimo staklės GILDEMEISTER AS 20
GILDEMEISTER AS 20 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski GILDEMEISTER AS 20
Torno automático multifuso GILDEMEISTER AS 20
Strung automat cu mai multe arbori GILDEMEISTER AS 20
GILDEMEISTER AS 20 Многошпиндельный токарный станок
Automatski strug sa više vretena GILDEMEISTER AS 20
GILDEMEISTER AS 20 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı GILDEMEISTER AS 20
Get price & details
Details
About this seller
Specifications
Max. Ø
20 mm
Nbr of spindles
6
Max. length
100 mm
Type of CNC
Number of tools
12
Spindle speed
5168 rpm
Spindle power
11 kW
-------------------
Weight
5000 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Datasheet
Gildemeister AS 20-6
Last availability date
26/04/2026
Show more
Automatic description (AI-Generated)
Manufacturer: GILDEMEISTER
Model: AS 20
Type: Multi-spindle automatic turning lathe
The GILDEMEISTER AS 20 is a robust multi-spindle turning lathe designed for precision machining in various industrial sectors such as automotive, watchmaking, machine tools, aerospace, and medical industries. This machine features six spindles and can accommodate up to 12 tools, allowing for efficient and versatile machining operations.
Bar capacities include a maximum diameter of 20 mm for round bars, 14 mm for square bars, and 17 mm for hexagonal bars. The lathe offers travel specifications with a longitudinal carriage way of 50 mm, a cross carriage way of 42 mm, and a maximum bar advance of 100 mm. Production capacity is notable, with the ability to produce up to 73 pieces and machining times ranging from approximately 1.38 seconds to 58.78 seconds per piece.
The spindle speed can be adjusted through 81 steps, with a range spanning from 214 rpm up to 5,168 rpm, powered by an 11 kW spindle motor. The machine operates on a 3-phase 400 V, 50 Hz electrical supply. It has a substantial weight of around 5,000 kg and overall dimensions measuring 3,315 mm in length and 1,400 mm in width.
Additional visible features include a control panel equipped with multiple buttons and an emergency stop button located on the right side of the machine for operational safety. The front side is fitted with a protective window featuring blue mesh ventilation. Yellow flexible exhaust or ventilation hoses are attached to the top of the machine, likely serving ventilation or extraction purposes. The machine's body is painted blue and white and shows signs of use, including some dirt and wear marks.
This lathe is offered as-is, where-is, without explicit information regarding its current operational condition or testing status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Manufacturer: GILDEMEISTER
Model: AS 20
Type: Multi-spindle turning lathe
Description:
The GILDEMEISTER AS 20 is a high-precision multi-spindle turning lathe designed for reliable performance in various machining applications.
Number of Spindles: 6
Maximum Number of Tools: 12
Bar Capacities:
- Round: 20 mm
- Square: 14 mm
- Hexagon: 17 mm
Travel Specifications:
- Longitudinal Carriage Way: 50 mm
- Cross Carriage Way: 42 mm
- Maximum Bar Advance: 100 mm
Production Capacity:
- Number of Possible Pieces: 73
- Machining Rate: From 1.38 s up to 58.78 s
Spindle Speeds:
- Number of Steps: 81
- Speed Range: From 214 to 5,168 rpm
Electrical Specifications:
- Voltage: 3x 400 V, 50 Hz
- Power: 11 kW
Machine Weight: Approximately 5,000 kg
Overall Dimensions:
- Length: 3,315 mm
- Width: 1,400 mm
Additional Features:
- Various Accessories: Bar loader, coolant system, oil mist extractor
Typical Sectors: Automotive, watchmaking, machine tools, aerospace, and medical.
Technical Condition: As-is, where-is.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Frequently Asked Questions (AI-Generated)
What type of lathe is this GILDEMEISTER AS 20?
This GILDEMEISTER AS 20 is a multi-spindle automatic lathe designed for reliable performance in various machining applications.
How many spindles and tools does this equipment have?
This equipment features 6 spindles and a maximum of 12 tools.
What are the bar capacities of this GILDEMEISTER AS 20?
This GILDEMEISTER AS 20 has a round bar capacity of 20 mm, a square bar capacity of 14 mm, and a hexagon bar capacity of 17 mm.
What are the dimensions of the carriage ways on this machine?
The longitudinal carriage way of this machine is 50 mm, and the cross carriage way is 42 mm.
What is the maximum bar advance for this equipment?
This equipment allows a maximum bar advance of 100 mm.
What is the production capacity of this equipment?
The production capacity includes the possibility of machining 73 pieces.
What is the machining rate range for this GILDEMEISTER AS 20?
This GILDEMEISTER AS 20 has a machining rate ranging from 1.38 seconds to 58.78 seconds.
How many spindle speed steps does this machine have?
This machine features 81 spindle speed steps with a speed range from 214 to 5,168 rpm.
What are the electrical specifications for this machine?
The electrical specifications include a voltage of 3x 400 V and a power of 11 kW.
What is the weight of this GILDEMEISTER AS 20?
This GILDEMEISTER AS 20 weighs approximately 5,000 kg.
What are the overall dimensions of this equipment?
The overall dimensions of this equipment are 3,315 mm in length and 1,400 mm in width.
What accessories are included with this machine?
This machine includes various accessories such as a bar loader, coolant system, and oil mist extractor.
