Gildemeister TWIN 32 cnc lathe

Gildemeister TWIN 32 cnc lathe
Top seller
View price
Gildemeister
TWIN 32
2000
Germany
Lathes - CNC lathes
P241031131
+34 679 …
Turning length
580 mm
Turning Ø
100 mm
Ø above the bed
100 mm
Ø above transversing slide
100 mm
Length between centers
580 mm
Type of CNC
X-axis
220 mm
Z-axis
320 mm
Max workpiece weight
30 kg
Spindle taper
Spindle bore
50 mm
Number of turrets
2
Number of tools on turret
12
Number of rotating tools
12
Turning speed
8000 rpm
Spindle motor power
28 kW
Tailstock
no
Bar feeder
no
good
Datasheet
Gildemeister TWIN 32Y
19/05/2026

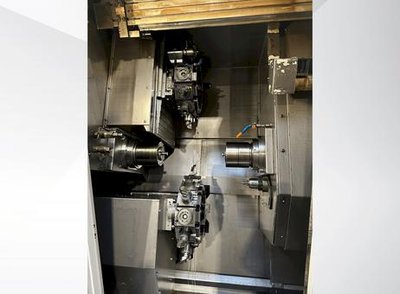

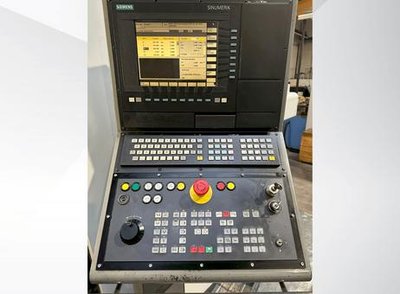

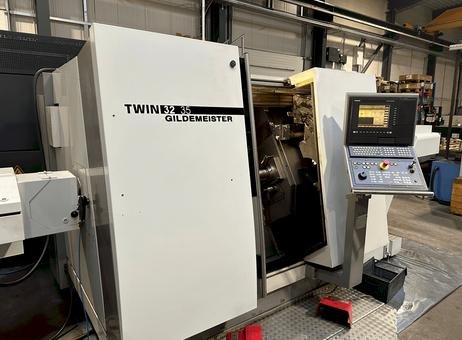

This listing features a Gildemeister TWIN 32 CNC horizontal turning machine, manufactured in the year 2000. The machine is equipped with a Siemens Sinumerik control panel, positioned on the right side, providing reliable CNC operation. It has a bar passage with a maximum diameter capacity of 32 mm, suitable for handling medium-sized bar stock. Included with the machine is a bar loading magazine from IRCO, offering a length of 3000 mm, which facilitates automated bar feeding to enhance productivity. The machine also comes with a chip conveyor, aiding in efficient chip removal during machining operations, and a parts pick-up device that is NC controlled, supporting automated part handling. The machine is fitted with two Sauer turrets, each equipped with 12 Capto C3 tool holders, allowing for versatile tooling options. Turret 1 is equipped with a Y-axis, enabling more complex machining capabilities. The Gildemeister TWIN 32 appears clean and well-maintained, suggesting careful upkeep. The machine is currently under power, indicating it is operational at the time of listing. The open door in the images reveals the interior work area, showing accessibility for maintenance and setup. This CNC lathe is suitable for manufacturers seeking a reliable and versatile turning center with automated bar loading and part handling features. For further information or to discuss this machine in detail, please contact the seller directly. This Gildemeister TWIN 32 horizontal turning machine was manufactured in 2000. It features a Siemens control unit, a bar passage with a maximum diameter of 32mm, and a bar loading magazine IRCO with a length of 3000mm. Additionally, it includes a chip conveyor and a parts pick-up device. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 32 machine we have for sale. Contact us for further details regarding this machine. CNC: SIEMENS
Chip conveyor: Yes
Parts pick-up device NC controlled
Bar loading magazine IRCO, length 3000 mm

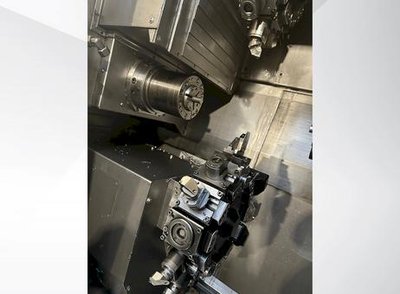

2x sauer revolver with 12 capto c3 each
Turret 1 with y axis
Bar passage max. Diameter: 32 mm
Machine still under power
