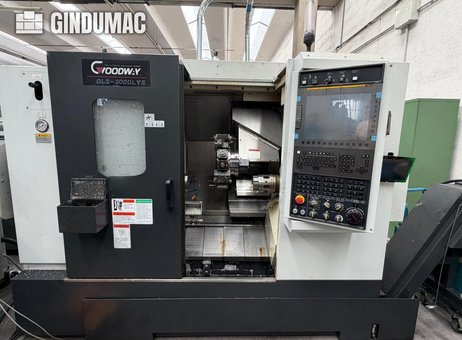

Goodway GLS-2000LYS CNC lathe
34.00 €
Negotiable
| Condition | gebraucht |
|---|---|
| Manufacturer | Fanuc |
| Year of manufacture | 2022 |
| Manufacturer | Goodway |
| Model | GLS-2000LYS |
| Year | 2022 |
| Location | Italy |
| Category | Lathes - CNC lathes |
| Turning length | 300 mm |
| Turning Ø | 51 mm |
| Ø above the bed | 300 mm |
| Ø above transversing slide | 230 mm |
| Length between centers | mm |
| X-axis | 125 mm |
| Z-axis | 320 mm |
| Max workpiece weight | kg |
| Spindle bore | 66 mm |
| Turning speed | 4500 rpm |
| Spindle motor power | 15 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | 3700 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Goodway GLS-2000LYS |
| Last availability date | 05/10/2026 |
| Product id | P260922221 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | Fanuc |
| Number of turrets | 2 |
| Number of rotating tools | 16 |
| Spindle taper | A 2-5 |
| Number of tools on turret | 12 |
Description
This 3-axis Goodway GLS-2000LYS was manufactured in 2022. It features a spindle speed of 4,500 rpm and a robust 12-station driven turret. The machine includes an 8" hydraulic chuck with a bar capacity of 65 mm and a 5" sub-spindle. If you are looking to get high-quality turning capabilities, consider the Goodway GLS-2000LYS horizontal turning machine we have for sale. Contact us for further details.CNC control: FANUC 0i-TF (10.4" display with Manual Guide)
Working hours: 17,29H 24M 34S (operating time); Part count: 10,250
Main spindle chuck/collet: 8" hydraulic cylinder, Bellegrandi BA70 collet chuck group (bar capacity 65 mm)
Sub-spindle: 5" sub-spindle with hydraulic cylinder and ejector, Bellegrandi BA70 collet chuck group
Axes: C-axis (main & sub-spindle with disc brake), Y-axis
Turret: 12-station driven turret
Tool presetter: Renishaw HPRA manual presetter
Coolant pump: 7 bar / 3 bar M-code switchable pump and Grundfos 3/4 HP pump
Power supply: AC 380 V, 3-phase, 50/60 Hz
Nominal capacity: 30 kVA
Main breaker current: 50 A
Additional equipment
Chip conveyor with timer

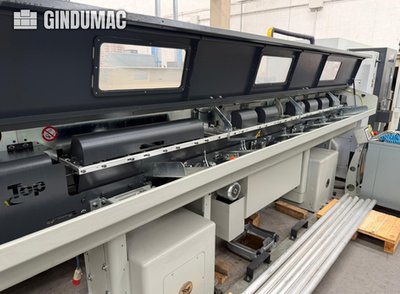

Bar feeder (included)
20x Bellegrandi BA70 collets
Driven tool holders: 4 double axial driven tools, 2 radial driven tools
RS232 interface
Electrical cabinet heat exchanger
Control Brand: FANUC
Control Model: FANUC 0i-TF
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 3700 kg
Number of Axes: 3
Spindle Power: 15 kW
Spindle Speed: 4500 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Working hours: 17,29H 24M 34S (operating time); Part count: 10,250
Main spindle chuck/collet: 8" hydraulic cylinder, Bellegrandi BA70 collet chuck group (bar capacity 65 mm)
Sub-spindle: 5" sub-spindle with hydraulic cylinder and ejector, Bellegrandi BA70 collet chuck group
Axes: C-axis (main & sub-spindle with disc brake), Y-axis
Turret: 12-station driven turret
Tool presetter: Renishaw HPRA manual presetter
Coolant pump: 7 bar / 3 bar M-code switchable pump and Grundfos 3/4 HP pump
Power supply: AC 380 V, 3-phase, 50/60 Hz
Nominal capacity: 30 kVA
Main breaker current: 50 A
Additional equipment
Chip conveyor with timer
Bar feeder (included)
20x Bellegrandi BA70 collets
Driven tool holders: 4 double axial driven tools, 2 radial driven tools
RS232 interface
Electrical cabinet heat exchanger
Control Brand: FANUC
Control Model: FANUC 0i-TF
Counter Spindle: yes
Driven Tools: yes
Machine Weight: 3700 kg
Number of Axes: 3
Spindle Power: 15 kW
Spindle Speed: 4500 RPM
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
