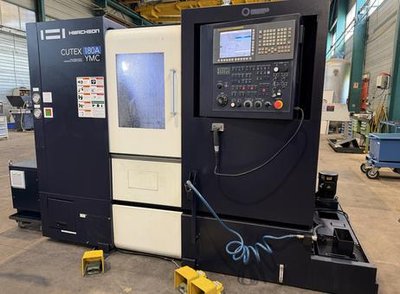

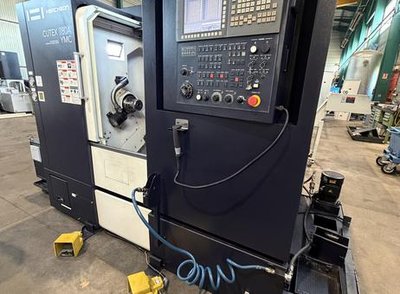

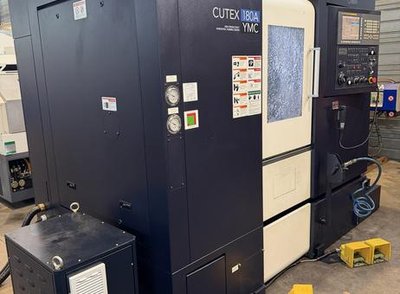

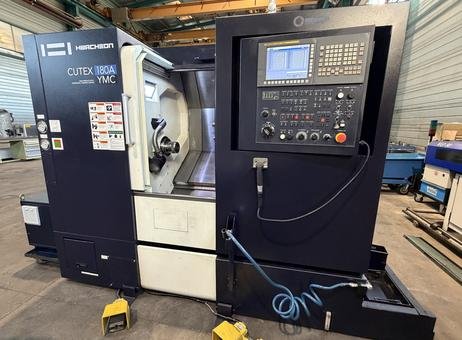

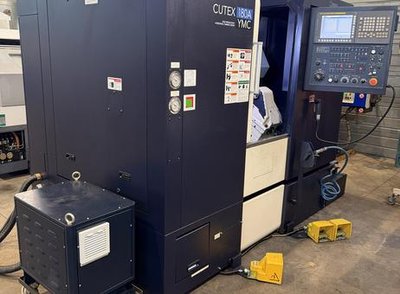

HWACHEON CUTEX 180A YMC CNC lathe
100000.00 €
Negotiable
| Condition | gebraucht |
|---|---|
| Manufacturer | Fanuc |
| Year of manufacture | 1995 |
| Manufacturer | HWACHEON |
| Model | CUTEX 180A YMC |
| Year | 2019 |
| Location | France |
| Category | Lathes - CNC lathes |
| Turning length | 680 mm |
| Turning Ø | 380 mm |
| Ø above the bed | 212 mm |
| Ø above transversing slide | mm |
| Length between centers | 599.4 mm |
| Type of CNC | FONUC |
| X-axis | 36 mm |
| Z-axis | 36 mm |
| Max workpiece weight | kg |
| Spindle taper | ASA 8 |
| Spindle bore | 51 mm |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Number of rotating tools | 12 |
| Turning speed | 5000 rpm |
| Spindle motor power | 18.5 kW |
| Tailstock | yes |
| Bar feeder | no |
| Length x width x height | 2300.0 × 1650.0 × 1995.0 |
| Weight | 3800 kg |
| worked hours | 708 hours |
| hours under power | 12924 hours |
| state | excellent |
| At local norms | yes |
| status | under power |
| Last availability date | 20/10/2026 |
| Product id | P261015748 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 24 |
| Last activity | Oct. 20, 2026 |
Description
• Chuck diameter: 155 mm. • Maximum diameter above the bed: 545. • Maximum diameter above the carriage: Ø 300 mm. • Machinable diameter without interference: Ø 206 mm. • Maximum machinable length: 278.5 mm. • Maximum bar passage capacity: Ø 51 mm. • Maximum spindle speed: 6,000 rpm. • Spindle nose: ASA A2-5. • Motor power: 15 kW. • Maximum spindle torque: 143.1 Nm. • C-axis: 360,000°. • X-axis travel: 205 mm. • Y-axis travel: 110 mm (+/- 55 mm). • Z-axis travel: 380 mm. • Rapid traverse speed (X/Z axes): 36 m/min. • Rapid traverse speed (Y-axis): 10 m/min. • 12/24-position turret, including 12 motorized positions
• Number of indexable stations: 24 positions (allowing the use of double tool holders). • External tool size: 25 mm square. • Internal tool size: Ø 40 mm. • Turret indexing time: 0.34 seconds. • Maximum speed of motorized tools: 5,000 rpm. • Motor power of motorized tools: 5.5 kW
• Programmable digital hydraulic tailstock. • FANUC 0i-TF Manual I Guide CNC
• Proprietary HWACHEON embedded software:
• L-HTLD: Real-time overload and tool breakage detection system. • L-CAL: Integrated automatic cutting data calculator. • L-COUNT: Smart part counter and tool life management. • L-WCMP: Monitoring and control of chuck clamping pressure. • 3-color status light. • Air-conditioned cabinet
• Tool probe arm. • 3-jaw hydraulic chuck, Ø 155. • Collet chuck. • 4 axial motorized tools, 3 radial motorized tools. • Oil cooler
• Dimensions: 2300×1650×1995 mm
• Machine height: 1,995 mm. • Weight: 3,800 kg
• Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
