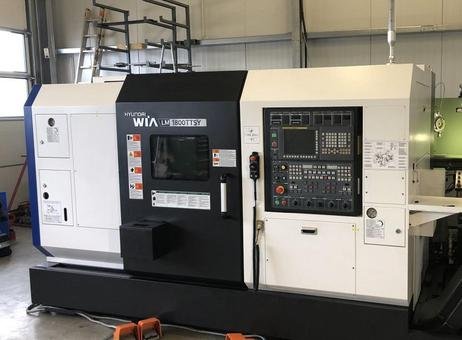

HYUNDAI LM1800TTSY Multispindle cnc lathe

HYUNDAI LM1800TTSY Multispindle cnc lathe
Top seller
View price
HYUNDAI
LM1800TTSY
2019
Netherlands
Lathes - CNC multi-spindle lathes
P260116076
Max. Ø
290 mm
Nbr of spindles
2
Type of CNC
FANUC
Nbr of axes
4
Spindle speed
5000 rpm
excellent
yes
visible
18/03/2026
This listing features a HYUNDAI LM1800TTSY CNC multispindle automatic lathe, manufactured in 2019. It is designed for precision turning with a maximum turning diameter of 290 mm. The machine is equipped with 2 spindles and operates on 4 axes, providing versatile machining capabilities. The spindle speed reaches up to 5000 rpm, supported by a spindle power of 22 kW. Both the main spindle and the subspindle have a bore diameter of 76 mm, with the subspindle also running at speeds up to 5000 rpm and a power output of 22 kW. The machine includes a 12-position automatic tool changer (ATC) or revolver, with live tool speeds up to 5000 rpm, allowing for efficient tool management and diverse machining operations. The lathe features a robust enclosed housing that helps maintain a clean work environment and enhances operator safety. A control panel with a screen and multiple buttons is mounted on the right side of the machine, facilitating user-friendly operation and precise control over machining processes. Foot pedals are positioned on the floor in front of the machine, providing additional operational convenience. The machine appears clean and well-maintained, with no visible signs of damage or wear, indicating careful upkeep. This HYUNDAI LM1800TTSY model is suitable for industrial applications requiring high precision and productivity in turning operations. Please note that specifications such as axis travel distances and spindle bore dimensions are based on provided data, and additional technical details should be confirmed with the seller. Max. turning Ø 290 mm
X-Axis 165/195 mm
Y-Axis 100 mm
Z-Axis 700/720 mm
B Axis 668 °
Spindle bore 76 mm
Speedrange 5000 Rpm
Spindle power 22 kW
Subspindle speeds
5000 Rpm
Subspindle bore 76 mm
Subspindle power 22 kW
ATC / revolver 12
Speed live tools 5000 Rpm
Positions lower revolver 12
