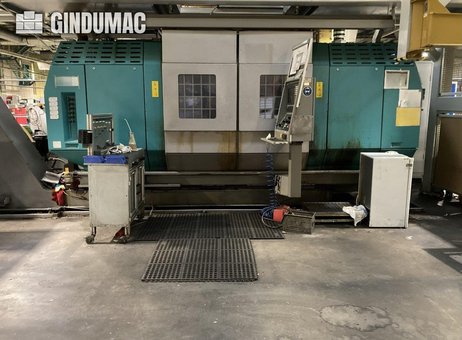

Index G250 CNC turn-mill center

Index G250 CNC turn-mill center
Top seller
View price
Request price
+34 679 …
Index
G250
2004
Germany
Lathes - CNC lathes
Type of CNC
Siemens SINUMERIK
X-axis
300 mm
Z-axis
1400 mm
Spindle taper
Number of tools on turret
12
Tailstock
no
Bar feeder
no
Length x width x height
5460.0 × 2560.0 × 2400.0
Weight
13500 kg
as-is, where-is
Datasheet
Index G250
11/08/2026
P260722148
Index G250 Turn-Mill Centre (2004) — Overview
This listing is for an Index G250 turn-mill center manufactured in 2004. It is offered in its current as-is, where-is condition. Complete documentation and operating manuals are included with the machine. Control and Axes
- CNC control: Siemens SINUMERIK / INDEX C 200-4D
- Number of axes: 8
- X-axis travel: 300 mm
- Z-axis travel: 1400 mm
Workholding and Spindle
- Main spindle with hydraulic power chuck / collet system

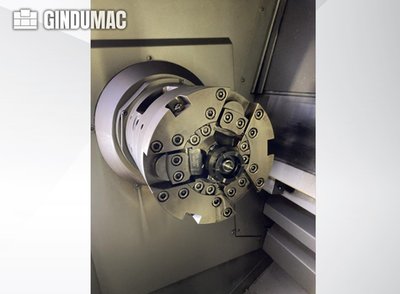

- Power chuck: SMW Autoblok hydraulic power chuck SLU-3-ZS (clamping range 125–152 mm)
- Steady rest: SMW Autoblok hydraulic/self-centering steady rest SLU-3-28 (range 12–152 mm, max. operating pressure 60 bar)
- Tailstock: rotating center on the right side of the work area
Tooling and Turret

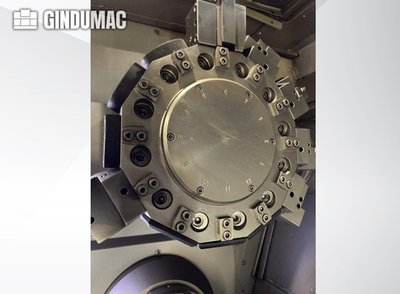

- 12-station turret with driven (live) tool capability
- Note: individual powered tools are not included in the scope of delivery
Automation, Chip & Fluid Handling, Filtration

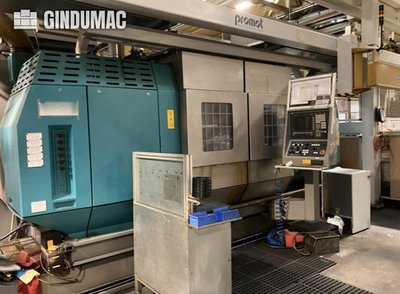

- Automation: Promet Automation overhead gantry loading system
- Chip conveyor / coolant unit: Knoll (year of manufacture listed as 2004)
- Coolant chiller: EMAG chiller/cooling unit (YOM 2016; cooling capacity 9.5 kW; refrigerant quantity 2.5 kg)
- Mist extraction / air cleaner: ELBARON / ISI RON A 2500 electrostatic air cleaner / mist extractor (YOM 2004)
Dimensions & Weight
- Machine dimensions (L x W x H): 5460 x 2560 x 2400 mm
- Transport dimensions listed as approximately 5460 x 2560 x 2400 mm; machine width noted as reducible to 2450 mm
- Machine weight: approximately 13,500 kg
Additional Notes
- Documentation and operating manuals are included. - Individual powered tools are excluded from delivery. - Condition is sold as-is; no claims of refurbishment, testing, or warranty are provided. Brand: Index
Model: G250
Year of Manufacture: 2004
Machine Type: Turn-Mill Centre
Application Type: Turning
Location: Germany
Status: As-is, where-is
Control System: Siemens SINUMERIK / INDEX C 200-4D
Axes: 8
X-axis Travel: 300 mm
Z-axis Travel: 1400 mm
Machine Dimensions (L x W x H): 5460 x 2560 x 2400 mm
Weight: 13,500 kg
Width (reducible): 2450 mm
Spindle / Workholding: Main spindle with hydraulic power chuck / collet system; Hydraulic power chuck clamping range: 125-152 mm
Power Chuck: SMW Autoblok hydraulic power chuck SLU-3-ZS (125-152 mm)
Steady Rest: SMW Autoblok hydraulic/self-centering steady rest SLU-3-28 (12-152 mm, max. operating pressure: 60 bar)
Tailstock: Rotating center on the right side of the work area
Tool Turret: 12-station turret with driven/live tool capability (individual powered tools are not included in the scope of delivery)
Automation / Loader: Promet Automation gantry loading system overhead
Chip / Coolant System: Knoll chip conveyor / coolant unit (YOM: 2004)
Coolant Chiller: EMAG Chiller / Cooling Unit (YOM: 2016; cooling capacity: 9.5 kW; refrigerant: 2.5 kg)
Mist Extraction / Air Cleaner: ELBARON / ISI RON / A 2500 electrostatic air cleaner / mist extractor (YOM: 2004)
Documentation: Complete documentations, operating manuals, etc. included
Transport Dimensions: Approximately 5460 x 2560 x 2400 mm (width reducible to 2450 mm)
Machine Weight: Approximately 13,500 kg
Notes: Individual powered tools are not included in the scope of delivery. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
