Leadwell T-7 CNC lathe

Leadwell T-7 CNC lathe
Top seller
View price
Request price
+34 679 …
Leadwell
T-7
2013
Netherlands
Lathes - CNC lathes
Turning length
540 mm
Turning Ø
350 mm
Ø above the bed
520 mm
Ø above transversing slide
350 mm
Length between centers
mm
Type of CNC
X-axis
200 mm
Z-axis
600 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
62 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
1750 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
2800.0 × 1565.0 × 1945.0
Weight
4500 kg
as-is, where-is
Datasheet
Leadwell T-7
11/08/2026
P260723244

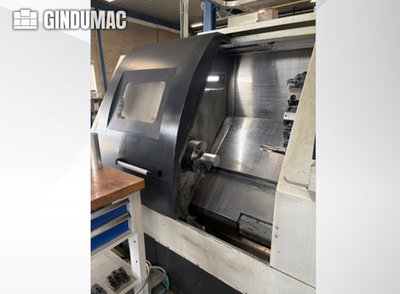

Leadwell T-7 horizontal CNC lathe (2013). This machine is described with a 12-station hydraulic turret and a FANUC Series Oi-TD control. Key turning capacities, travel and dimensional data provided in the listing are summarized below. Main specifications
- Manufacturer / model: Leadwell T-7
- Year manufactured: 2013
- Maximum turning diameter: 350 mm
- Maximum swing over bed: 520 mm
- Maximum turning length: 540 mm
- Spindle speed (max): 1,750 rpm
- Spindle bore: 62 mm
- Spindle nose: A2-6
- Maximum bar capacity: 65 mm
- Chuck: 8" hydraulic chuck
- Turret: 12-station hydraulic turret
- Tailstock: Hydraulic
- Driven tools / counter spindle: no (listed as none)
Axis travel, control and machine dimensions
- Number of axes: 2 (X / Z)
- X-axis travel: 200 mm
- Z-axis travel: 600 mm
- Rapid traverse (X / Z): listed as approximately 20–30 / 24–30 m/min

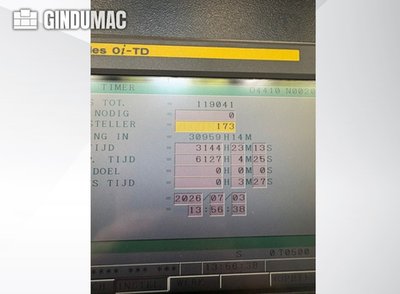

- Control: FANUC Series Oi-TD
- Machine footprint and weight: length 2,800 mm, width 1,565 mm, height 1,945 mm, weight 4,500 kg
Notes and items to confirm
- The listing indicates a chip conveyor may be standard or optional; confirm presence if required. - Spindle motor power, hours/cycle count, full service history and current operational condition are not specified in the provided information and should be confirmed prior to purchase. All specifications above are taken from the provided listing details. Verify any additional requirements (fixtures, tooling, installation needs) with the seller before arranging inspection or transport. Horizontal turning machine manufactured in 2013. This Leadwell T-7 features a maximum turning diameter of 350 mm and a maximum turning length of 540 mm. It includes a 12-station hydraulic turret and a spindle speed of 1,750 rpm. If you are looking to get high-quality turning capabilities, consider the Leadwell T-7 machine we have for sale. Contact us for further details.Maximum turning diameter: 350 mm
Maximum swing over bed: 520 mm
Maximum turning length: 540 mm
Spindle nose: A2-6
Spindle bore: 62 mm
Maximum bar capacity: 65 mm
Chuck size: 8" hydraulic chuck
Turret: 12-station hydraulic turret
Rapid traverse (X/Z): 20–30 / 24–30 m/min
Tailstock: Hydraulic
Additional equipment
Chip conveyor: Standard or optional
Control Brand: FANUC
Control Model: Series Oi-TD
Counter Spindle: no
Driven Tools: no
Machine Height: 1945 mm
Machine Length: 2800 mm
Machine Weight: 4500 kg
Machine Width: 1565 mm
Number of Axes: 2
Spindle Speed: 1750 RPM
X-axis Travel: 200 mm
Z-axis Travel: 600 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
