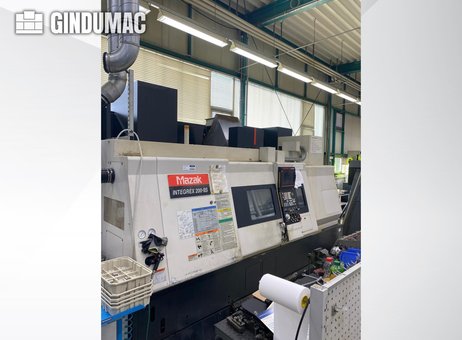

Mazak INTEGREX 200 III S CNC lathe

Mazak INTEGREX 200 III S CNC lathe
Top seller
View price
Request price
+34 679 …
Mazak
INTEGREX 200 III S
2004
Germany
Lathes - CNC lathes
Turning length
mm
Turning Ø
660 mm
Ø above the bed
660 mm
Ø above transversing slide
660 mm
Length between centers
mm
Type of CNC
X-axis
580 mm
Z-axis
1045 mm
Max workpiece weight
150 kg
Spindle taper
Spindle bore
76 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
5000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Length x width x height
3820.0 × 2060.0 × 2597.0
Weight
9700 kg
as-is, where-is
Datasheet
Mazak Integrex 200 III ST
11/08/2026
P260811085
Mazak INTEGREX 200 III S — 5‑axis turn‑mill centre (manufactured 2004). Key machine data: maximum turning diameter 660 mm, spindle bore 76 mm, main spindle speed up to 5,000 rpm and main spindle drive power 22 kW. Travel and capacity: X = 580 mm, Y = ±80 mm, Z = 1,045 mm. Max workpiece weight (shaft): 150 kg. Machine dimensions and weight: 3,820 mm long, 2,060 mm wide, 2,597 mm high, weight 9,700 kg. Control: MAZATROL PC FUSION (listed as MAZATROL 640). Number of axes: 5. Total operating hours recorded: 3,520 h (recorded 2026/05/04); automatic and cutting time breakdowns are listed in the specification set. Tooling and spindles: 80‑slot drum tool magazine configured for stationary and driven tools; tool turret design supports stationary or driven tools and driven tools are included. Second (counter) spindle and spindle synchronization are fitted. Tooling limits and driven tool performance, turret quick‑change system, and other detailed tool data are provided in the specification set. Coolant and chip handling: complete coolant system with 220 L tank capacity and integrated chip conveyor (Mayfran ConSep unit). Safety and accessories: B‑ and C‑axes (0.0001° indexing), Y‑axis, spindle orientation on second spindle, hydraulic 3‑jaw KITAGAWA B‑208 chucks (210 mm) on both spindles with one set of soft jaws each, tool setter (Tool Eye), front door interlock, work area lighting and enclosed work area are included as listed. Condition and visible items: the machine bears a Mazak INTEGREX 200‑IIIS nameplate and MAZATROL 640 control labeling. Operator control panel and display are present. A large black chip‑handling/conveyor unit (ConSep) and rear electrical/drive cabinets with routed hoses/cabling are fitted. There are visible signs of use: surface dirt and wear marks around door edges, accumulated coolant residue and swarf in entry/door areas, light swarf/coolant residue and tool marks on interior guideways, paint wear and small chips on door handle/front bezel, and peeling paint with small corrosion spots on the rotary head housing. Gloves and small parts trays are attached to the front in the photographed configuration. Note: the listing includes extensive technical and accessory detail; prospective buyers are advised to request further photos, documentation, or an on‑site inspection to confirm condition and the complete specification for their application. This 5-axis Mazak INTEGREX 200 III S was manufactured in 2004. It features a maximum turning diameter of 660 mm and a maximum workpiece weight of 150 kg. The machine is equipped with a tool magazine capacity of 80 slots and a rapid traverse speed of 38 m/min on the X and Z axes. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX 200 III S turn-mill centre we have for sale. Contact us for further details.- Max. Swing Diameter: 660 mm
- Max. Turning Diameter: 660 mm
- Max. Turning Diameter over Slide: 500 - 660 mm
- Max. Bar Working Diameter: 51 mm
- Max. Workpiece Weight (incl. Chuck) - Chuck Workpiece: 100 kg
- Max. Workpiece Weight (incl. Chuck) - Shaft Workpiece: 150 kg
- Main Spindle Speed Range (Stepless): 35 - 5,000 rpm
- Main Spindle Drive Power (30 min. rating / 100% continuous operation): 22 kW / 15 kW
- Main Spindle Max. Torque: 349 Nm
- Main Spindle Nose: A2-6"
- Main Spindle Bore: Diameter 76 mm
- Main Spindle Chuck Diameter: 210 mm
- Main Spindle Indexing (C-Axis): 0.0001°
- Second Spindle Drive Power (30 min. rating / 100% continuous operation): 18.5 kW / 15 kW
- Second Spindle Speed Range: 35 - 5,000 rpm
- Second Spindle Max. Torque: 326 Nm
- Second Spindle Indexing (C-Axis): 0.0001°
- Second Spindle Chuck Diameter: 210 mm
- Tool Turret Design: Single spindle turret for stationary or driven tools
- Driven Tools (IPM Motor) Drive Power (20% ED): 15 kW
- Driven Tools Max. Torque: 120 Nm
- Driven Tools Speed Range: 15 - 12,000 rpm
- Tool Taper: MAZAK KM 63 quick-change system (for stationary tools)
- Tool Magazine Type: Drum type
- Tool Magazine Capacity: 80 slots (equipped for stationary and driven tools)
- Tool Weight: max. 10 kg
- Tool Diameter: max. 90 mm
- Tool Diameter (with free adjacent slots): max. 125 mm
- Tool Length: max. 300 mm
- Tool Change Time (Tool-to-Tool step 1): approx. 1.3 s
- Travel Y-Axis: +/- 80 mm
- Travel W-Axis: 1050 mm
- B-Axis Swivel Range: -30° to +195°
- Rapid Traverse Speed X-Axis: 38 m/min
- Rapid Traverse Speed Y-Axis: 26 m/min
- Rapid Traverse Speed Z-Axis: 38 m/min
- Rapid Traverse Speed W-Axis: 30 m/min
- Rapid Traverse Speed C-Axis: 400 rpm
- Feed Range X-Axis: 0 - 8,000 mm/min
- Feed Range Z-Axis: 0 - 8,000 mm/min
- Feed Range Y-Axis: 0 - 8,000 mm/min
- Coolant Tank Capacity: 220 L
- Pump Delivery Rate: approx. 20 l/min
- Pump Pressure: approx. 5 bar
- Pump Power: 635 W
- Connected Load: 61.4 kVA
- Operating Voltage: 400 V / 50 Hz
- Pneumatic Pressure: 5 bar, 500 l/min
- Total Operating Hours: 3,520 hours (Recorded on 2026/05/04)
- Automatic Process Time: 1,581 hours
- Automatic Cutting Time: 1,267 hours
- Pure Cutting Time: 905 hours
- Operating Time: 615 hours
- Standard Accessories / Additional Equipment:
- B-Axis (0.0001° positioning axis)
- C-Axis (0.0001°)
- Y-Axis
- Spindle orientation on second spindle
- Synchronization of main and second spindle
- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (Main Spindle)
- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (2nd Spindle)
- Dual foot switch for opening/closing the chucks for main and 2nd spindle
- Feedback of chuck status (open/closed) for main and 2nd spindle
- Air blow-out device on chuck (Second Spindle)
- Tool Setter (Tool Eye)
- Front door interlock
- Complete coolant system
- Coolant and chip guard via fully enclosed work area
- Work area lighting

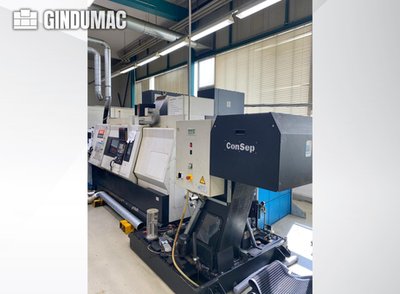

- Chip Conveyor System (Mayfran ConSep unit visible)
Control Brand: MAZATROL
Control Model: PC FUSION CNC 640MT Pro
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2597 mm
Machine Length: 3820 mm
Machine Weight: 9700 kg
Machine Width: 2060 mm
Number of Axes: 5
Spindle Power: 22 kW
Spindle Speed: 5000 RPM
X-axis Travel: 580 mm
Y-axis Travel: 80 mm
Z-axis Travel: 1045 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
