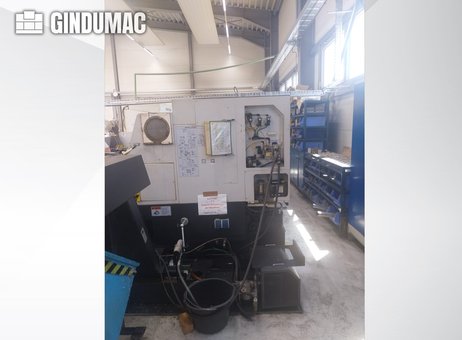

Mazak QUICK TURN NEXUS 200 MS CNC lathe

Mazak QUICK TURN NEXUS 200 MS CNC lathe
Top seller
View price
Request price
+34 679 …
Mazak
QUICK TURN NEXUS 200 MS
2004
Germany
Lathes - CNC lathes
Turning length
mm
Turning Ø
380 mm
Ø above the bed
675 mm
Ø above transversing slide
276 mm
Length between centers
mm
Type of CNC
X-axis
230 mm
Z-axis
575 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
76 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
6000 rpm
Spindle motor power
kW
Tailstock
no
Bar feeder
no
Length x width x height
2353.0 × 1780.0 × 1840.0
Weight
5000 kg
as-is, where-is
Datasheet
Mazak Quick Turn Nexus 100
11/08/2026
P260801210
Machine: Mazak QUICK TURN NEXUS 200 MS, manufactured 2004. General description: CNC lathe suitable for turning work with spindle bore and typical lathe work ranges as listed below. Control: Mazatrol 640T Nexus control (Mazatrol 640T Nexus control panel and keypad present). Accessories (as listed): LNS Quick Load Servo 3 bar loader included (listed as included). Key measured/specified dimensions and capacities (from listing fields): • Max. turning diameter (Turning Ø): 380 mm • Max. swing diameter over bed: 675 mm • Max. swing diameter over cross slide/transversing slide: 276 mm • Spindle bore: 76 mm • X-axis travel: 230 mm • Z-axis travel: 575 mm • Maximum turning speed (listed): 6,000 rpm • Overall transport dimensions (listed): 2,353 mm (L) x 1,780 mm (W) x 1,840 mm (H) • Machine weight (listed): ≈ 5,000 kg Note: these numeric values are taken from the listing’s specification fields. Visible components and safety items supported by photographs and listing notes: • Mazatrol 640T Nexus CNC control panel with screen, numeric keypad and an emergency stop button • Front enclosure with a left-side circular fan/grill • Protective mesh guard / top loading guard • QUICK LOAD branding on the front section (associated with the bar loader) • Floor safety barrier/net and various warning/safety labels on the machine Exterior condition observations (cautionary): The listing and images indicate surface dirt and signs of use, particularly on lower enclosure panels and nearby floor areas. Buyers are advised to inspect the machine in person or request detailed condition reports, test documentation, or additional photos for components of interest (spindle, turret/tooling, live tooling, sub-spindle, electrical panels, coolant systems, etc.). No claims are made about operational status, testing, or warranty. This 4-axis Mazak QUICK TURN NEXUS 200 MS was manufactured in 2004. It features a maximum turning diameter of 380 mm and a maximum swing diameter of 675 mm. The machine is equipped with a powerful main spindle that reaches speeds of up to 5,000 rpm and a robust tool turret with 12 positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN NEXUS 200 MS machine we have for sale. Contact us for further details.- Work Area:
- Max. Swing Diameter: 675 mm
- Max. Swing Diameter over Cross Slide: 276 mm
- Max. Turning Diameter: 380 mm
- Max. Bar Work Capacity: 65 mm
- Main Spindle:
- Main Drive Power (30 min rating / 100% continuous): 26 kW / 22 kW (Integrated Spindle Motor)
- Max. Torque: 350 Nm
- Spindle Nose: A2-6"
- Spindle Bore: 76 mm
- Chuck Diameter: 210 mm
- Second Spindle (Sub-spindle):
- Drive Power (30 min rating / 100% continuous): 10 kW / 7.5 kW
- Max. Torque: 75 Nm
- Speed Range: 35 - 6,000 rpm
- Indexing: 0.001°
- Chuck Diameter: 169 mm
- Tool Turret:
- Tool Positions: 12
- Tool Mounting Type: VDI-like
- Turning Tool Shank Height: 25x25x150 mm
- U-Drill Diameter: 20 mm
- Boring Bar Shank Diameter: 40 mm
- Indexing Time: Approx. 0.2 s (1 step)
- Driven Tools (Live Tooling):
- Drive Power (10 min rating): 5.5 kW
- Speed Range: 25 - 4,500 rpm
- Max. Torque: 35 Nm
- Travel Ranges & Speeds:
- X-Axis Travel: 230 mm
- Z-Axis Travel: 575 mm
- Rapid Traverse Rate X-Axis: 30 m/min
- Rapid Traverse Rate Z-Axis: 33 m/min
- Tool Setting / Monitoring:
- Automatic Tool Breakage Recognition
- Automatic Tool Wear Compensation Adjustment Range: 9,999 mm
- Tool Presetter: Tool Eye
- Coolant & Pneumatics:
- Coolant Tank Capacity: 160 l
- Pneumatic Pressure: 5 bar, 100 l/min
- Machine Dimensions & Weight:
- Connected Load: 46.2 kVA
- Operating Voltage: 400 V / 50 Hz
- Required Floor Space: 1.740 x 1.780 mm (Base layout space)
- Transport Dimensions (QTN 200 M - U 500): 2,353 mm (L) x 1,780 mm (B) x 1,840 mm (H)
- Machine Weight: Approx. 4,900 kg - 5,100 kg

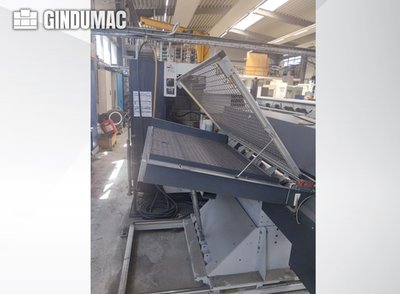

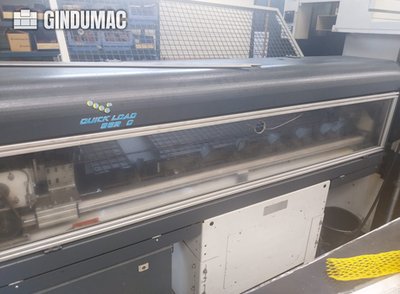

included: LNS QUICK LOAD SERVO 3 (2004)
- Type: Automatic Short Bar Loader
- Bar Diameter Range: 6 mm to 120 mm
- Bar Length Range: 100 mm to 1600 mm

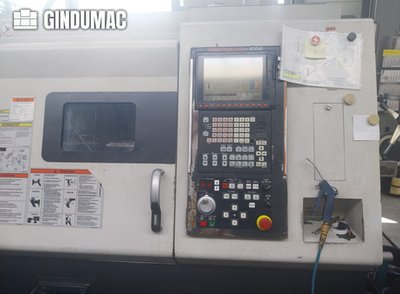

Control Brand: MAZATROL
Control Model: 640T Nexus
Counter Spindle: yes
Driven Tools: yes
Machine Height: 1840 mm
Machine Length: 2353 mm
Machine Weight: 5000 kg
Machine Width: 1780 mm
Number of Axes: 4
Spindle Power: 22 kW
Spindle Speed: 5000 RPM
X-axis Travel: 230 mm
Z-axis Travel: 575 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
1983
Aug. 13, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation. Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers. Lathes - CNC lathes
Turning length
mm
Why buyers buy with us
Verified sellers
We verify sellers and confirm key machine information before introducing buyers and sellers
Secure transactions
We help secure international transactions and assist both parties until the deal is completed
Worldwide logistics support
From loading to international transport, we help coordinate the logistics through our trusted partners
Dedicated experts
A machinery sales specialist manages your request from the first message to the completed purchase
Here is a selection of similar machines - Mazak QUICK TURN NEXUS 200 MS

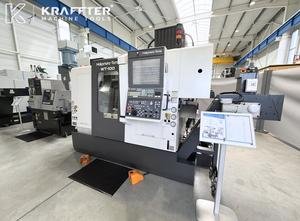

NAKAMURA-TOME WT-100 CNC lathe
