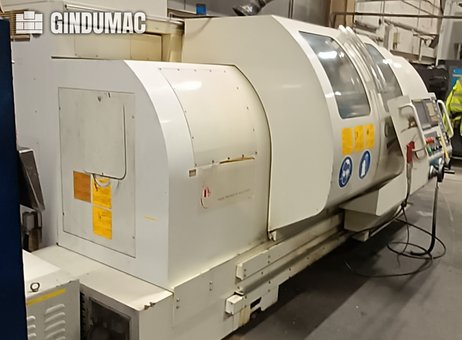

MONDIAL BNC-2260XL CNC lathe

MONDIALE BNC-2260XL CNC lathe
Top seller
Price on request
View price
Manufacturer
MONDIALE
Model
BNC-2260XL
Year
2008
Location
Belgium
Category
Lathes - CNC lathes
Product id
P260306158
Buy this machine
Language
Language
CNC струг MONDIALE BNC-2260XL
CNC soustruh MONDIALE BNC-2260XL
MONDIALE BNC-2260XL CNC-drejebænk
MONDIALE BNC-2260XL CNC-Drehmaschine
Τόρνος CNC MONDIALE BNC-2260XL
MONDIALE BNC-2260XL CNC lathe
Torno CNC MONDIALE BNC-2260XL
Tour CNC MONDIALE BNC-2260XL
CNC tokarski stroj MONDIALE BNC-2260XL
MONDIALE BNC-2260XL CNC esztergagép
Tornio CNC MONDIALE BNC-2260XL
MONDIALE BNC-2260XL CNC tekinimo staklės
MONDIALE BNC-2260XL CNC-draaibank
Tokarka CNC MONDIALE BNC-2260XL
Torno CNC MONDIALE BNC-2260XL
Strung CNC MONDIALE BNC-2260XL
MONDIALE BNC-2260XL Токарный станок с ЧПУ
CNC strug MONDIALE BNC-2260XL
MONDIALE BNC-2260XL CNC-svarv
CNC torna MONDIALE BNC-2260XL
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
1500 mm
Ø above the bed
550 mm
Ø above transversing slide
310 mm
Type of CNC
Fanuc Oi-TC
X-axis
300 mm
Z-axis
1650 mm
Max workpiece weight
2000 kg
Spindle taper
a28 / d18
Spindle bore
82 mm
Number of tools on turret
8
Number of rotating tools
0
Turning speed
3500 rpm
Spindle motor power
15.5 kW
Tailstock
yes
Bar feeder
no
-------------------
Length x width x height
3690.0
× 2225.0
× 2050.0
Weight
4400 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
30/04/2026
Show more
Seller's description
Horizontal turning machine manufactured in 2008. This MONDIALE BNC-2260XL features a maximum turning length of 1500 mm and a swing over bed of 550 mm. It includes a bar capacity of 69 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality turning capabilities, consider the MONDIALE BNC-2260XL machine we have for sale. Contact us for further details regarding this machine.Swing over bed: 550 mm
Swing in gap: 790 mm
Swing over cross slide: 310 mm
Max. turning length: 1500 mm
Bar capacity (hyd. chuck cylinder): 69 mm (91 mm option)
Gap length from spindle nose surface: 283 mm
Max. workpiece weight (with tailstock): 2000 kg
Spindle speed range (choice 1): 80–3500 rpm (82 mm bore)
Spindle speed range (choice 2): 80–2400 rpm (82 mm/106 mm bore)
Spindle nose: A2-8 / D1-8 (82 mm); D1-8 / A1-11 (106 mm)
Spindle hole diameter: 82 mm (std.) / 106 mm (option)
Main motor power: 11/15.5 kW (std.) / 15/22 kW (opt.)
Number of tool stations: 8
Tool shank: 40 mm
Turret indexing time: 0.42 s (BARUFFALDI)
X/Z axis rapid traverse: 15 m/min
Positioning accuracy: 0.005 mm
Repeatability: 0.005 mm
X axis feed motor torque: 9.3 Nm
Z axis feed motor torque: 14.8 Nm
Ballscrew X axis: 32×5-C5
Ballscrew Z axis: 45×10-C5

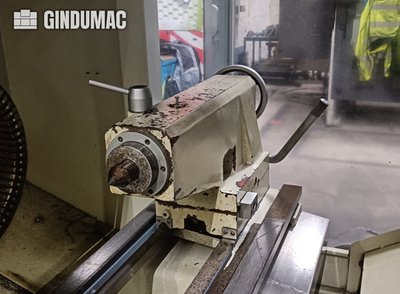

Tailstock quill stroke: 150 mm
Tailstock quill diameter: 80 mm (std.) / 100 mm (opt.)
Tailstock quill taper: MT 5
Coolant pump motor: 450 W
Coolant pump capacity: 55 L/min
Lubrication pump motor: 25 W
Control Brand: FANUC
Control Model: Oi-TC
Counter Spindle: no
Driven Tools: no
Machine Height: 2050 mm
Machine Length: 3690 mm
Machine Weight: 4400 kg
Machine Width: 2225 mm
Number of Axes: 2
Spindle Power: 15.5 kW
Spindle Speed: 3500 RPM
X-axis Travel: 300 mm
Z-axis Travel: 1650 mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
