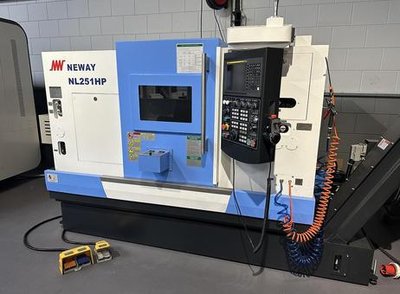

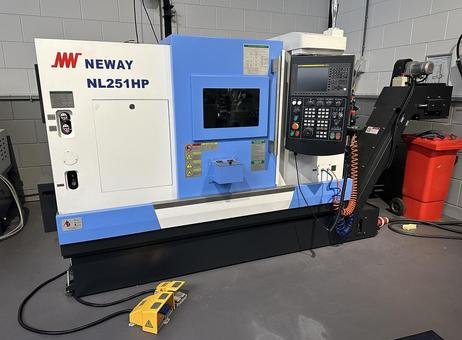

NEWAY NL251HP cnc lathe
316.00 €
Negotiable
| Condition | neuwertig |
|---|---|
| Manufacturer | Fanuc |
| Year of manufacture | 2023 |
| Manufacturer | NEWAY |
| Model | NL251HP |
| Year | 2023 |
| Location | Netherlands |
| Category | Lathes - CNC lathes |
| Turning length | 100 mm |
| Ø above the bed | 520 mm |
| Type of CNC | MSX-501 manuf. |
| X-axis | 140 mm |
| Z-axis | 70 mm |
| Spindle taper | A2-6 |
| Spindle bore | 62 mm |
| Number of tools on turret | 16 |
| Turning speed | 6000 rpm |
| Tailstock | no |
| Bar feeder | no |
| worked hours | 100 hours |
| state | new |
| At local norms | yes |
| status | visible |
| Datasheet | NEWAY NL251HP |
| Last availability date | 24/09/2026 |
| Product id | P250901009 |
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 47 |
| Last activity | Sept. 24, 2026 |
| Turning Ø | 190 mm |
| Length between centers | mm |
| Ø above transversing slide | 250 mm |
| Spindle motor power | 18.5 kW |
| Max workpiece weight | kg |
| Number of turrets | 2 |
| Number of rotating tools | 1 |
Description
This NEWAY NL251HP is a demo machine that has not yet produced any chips. A 45° inclined bed forms the core of the machine. It features an extremely stable cast iron structure made of Meehanite cast iron, with a special damping sand hard integrated into the machine frame. This effectively improves the performance of the castings and provides even greater vibration-dampening properties. Each servo axis is equipped with a silent-noise ball screw and is directly connected to the servo motor via a flexible coupling. This results in high speed, low noise, high positioning accuracy, and high repetitive positioning accuracy. The servo motor is equipped with an absolute encoder. This allows the machine to be ready for use immediately after switching on, without having to run reference points. Position information is not lost after the power is disconnected. Maximum turning diameter 320 mm
Maximum turning length 435 mm
X-axis range 240 mm
Z-axis range 455 mm
Passage 65mm
Speed (min-max) 0 - 4000 rpm
Spindle recording A2-6
Recording turret 25x25mm
Turret positions 12 pieces
Recording counter center MK5
Control brand/type FANUC Series Oi-TF Plus
Spindle hours 100 hours
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Maximum turning length 435 mm
X-axis range 240 mm
Z-axis range 455 mm
Passage 65mm
Speed (min-max) 0 - 4000 rpm
Spindle recording A2-6
Recording turret 25x25mm
Turret positions 12 pieces
Recording counter center MK5
Control brand/type FANUC Series Oi-TF Plus
Spindle hours 100 hours
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
