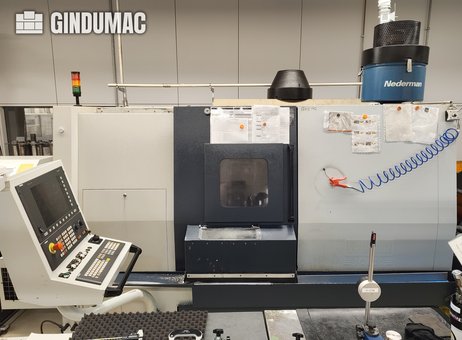

SPINNER TC 800 110 MC CNC lathe

SPINNER TC 800 110 MC CNC lathe
Top seller
View price
Request price
+34 679 …
SPINNER
TC 800 110 MC
2009
Germany
Lathes - CNC lathes
Turning Ø
500 mm
Ø above the bed
800 mm
Length between centers
800 mm
Type of CNC
siemens
X-axis
360 mm
Z-axis
980 mm
Spindle taper
vdi 50
Number of tools on turret
12
Turning speed
2500 rpm
Spindle motor power
33 kW
Tailstock
no
Bar feeder
no
Length x width x height
3250.0 × 1980.0 × 2090.0
Weight
7500 kg
as-is, where-is
Datasheet
Spinner TC 800 110 MC
11/08/2026
P260723250
SPINNER TC 800 110 MC CNC lathe (Manufacturer: SPINNER, Model: TC 800 110 MC, Year of manufacture: 2009) — horizontal turning machine designed for CNC turning applications with a SIEMENS control unit. Production hours: 26,180. Movement: 3 axes (X/Z and typically a C or main spindle). X-axis travel: 360 mm; Z-axis travel: 980 mm. Distance between centers: 800 mm. Maximum bar diameter supported: 110 mm. Maximum workpiece diameter: 500 mm; maximum swing diameter: approx. 800 mm. Spindle and tooling: Main spindle speed up to 2,500 RPM. Taper size: VDI 50. Main spindle power specified as 22 kW (100% duty) / 33 kW (40% duty); spindle power also listed as 33 kW. Main spindle torque is given for two gears: Gear 1 — 175 Nm (100%) / 263 Nm (40%); Gear 2 — 700 Nm (100%) / 1,050 Nm (40%). Main spindle nose: A11. Counter spindle: No. The machine is equipped with driven tools; tool turret with 12 tool stations. Live tool speed: up to 4,000 rpm with live tool power 5 kW (100%) / 9.6 kW (40%). Rapid traverse rates: X = 15 m/min, Z = 24 m/min. Utilities and tanks: Supply voltage 3/PE ~400 V, frequency 50/60 Hz, operating current IB 63 A, rated current IN 80 A. Coolant tank capacity approx. 235 L; hydraulic tank approx. 11 L; central lubrication tank approx. 2–3 L. Clamping and auxiliaries: Collet chuck used for clamping (specified). Dust extraction system is listed as included. Optional equipment noted: bar feeder, parts catcher, turret with driven tools, chip conveyor, and tailstock. Physical and handling details: Machine dimensions — height 2,090 mm; length 3,250 mm; width 1,980 mm. Machine weight given as 7,000–7,500 kg. Notes: All data are taken from the provided specification. No statements are made about operational status, testing, refurbishment, or warranty. SPINNER TC 800 110 MC CNC lathe
Manufacturer: SPINNER
Model: TC 800 110 MC
Year of manufacture: 2009
Production hours: 26,180
Application type: Turning
Location: Germany
Machine type: Horizontal turning machine
Control unit brand: SIEMENS
Dimensions: Height 2,090 mm; Length 3,250 mm; Width 1,980 mm
Machine weight: 7,000–7,500 kg
Movement: Number of axes 3
X-axis travel: 360 mm
Z-axis travel: 980 mm
Counter spindle: No
Driven tools: Yes
Max. bar diameter: 110 mm
Max. workpiece diameter: 500 mm
Spindle power: 33 kW
Spindle speed: 2500 RPM
Taper size: VDI 50
Tool stations: 12
Live tool speed: 4,000 rpm
Live tool power (100%/40%): 5 / 9.6 kW
Rapid traverse X/Z: 15 / 24 m/min
Maximum turning diameter: approx. 500 mm
Maximum swing diameter: approx. 800 mm
Distance between centers: 800 mm
Main spindle nose: A11
Main spindle power (100%/40%): 22 / 33 kW
Main spindle torque (Gear 1, 100%/40%): 175 / 263 Nm
Main spindle torque (Gear 2, 100%/40%): 700 / 1050 Nm
Coolant tank capacity: approx. 235 L
Hydraulic tank capacity: approx. 11 L
Central lubrication tank: approx. 2–3 L
Supply voltage: 3/PE ~ 400 V
Frequency: 50 / 60 Hz
Operating current (IB): 63 A
Rated current (IN): 80 A
Collet chuck used for clamping: Yes
Dust extraction system: Included
Optional equipment: Bar feeder, Parts catcher, Turret with driven tools, Chip conveyor, Tailstock
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
