Takisawa TS-4000YS CNC lathe

Takisawa TS-4000YS CNC lathe
Top seller
View price
Request price
+34 679 …
Takisawa
TS-4000YS
2021
Hungary
Lathes - CNC lathes
Turning length
750 mm
Turning Ø
370 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
325 mm
Z-axis
840 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
90 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
6000 rpm
Spindle motor power
22 kW
Tailstock
no
Bar feeder
no
Length x width x height
3000.0 × 2140.0 × 2300.0
Weight
6200 kg
as-is, where-is
Datasheet
Takisawa TS-4000YS
18/08/2026
P260818169
This 6-axis Takisawa TS-4000YS was manufactured in 2021. It features a maximum swing diameter of Ø 600 mm and a turning diameter of Ø 370 mm with a length of 750 mm. The machine includes a powerful 22 kW main motor and a counter spindle with a speed of 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-4000YS turn-mill centre we have for sale. Contact us for further details.Capacity:
Max. swing diameter: Ø 600 mm
Max. turning diameter x length: Ø 370 x 750 mm
Bar capacity: Ø 82 mm
Main spindle:
Spindle centerline height from floor: 1140 mm
Bearing/bore diameter: Ø 140 / Ø 90 mm
Spindle nose: A2-8
C-axis resolution: 0,001°
Counter spindle:
Spindle centerline height from floor: 1140 mm
Bearing/bore diameter: Ø 90 / Ø 53 mm
Spindle nose: F-140
Speed: 6000 rpm (1/min)
C-axis resolution: 0,001°
Strokes:
Y: -50 ~ +70 mm
A: 780 mm
Rapid traverses:
X: 30 m/min
Z: 30 m/min
Y: 10 m/min
A: 30 m/min
Power:
Main spindle motor (30 min. / 100% ED): AC 22 / 15 kW
Max. torque (main spindle): 618 Nm (S3 25%)
Counter spindle motor (30 min. / 100% ED): AC 11 / 7,5 kW
Max. torque (counter spindle): 175 Nm (S3 25%)
Driven tools:
Turret stations: 12 pcs
Max. speed: 6000 rpm (1/min)
Drive power (S3 25% / 100% ED): 7,5 / 3,7 kW
Max. torque: 48 Nm
Tooling:
Tool shank cross-section: 25 x 25 mm
Boring bar diameter: Ø 50 mm
Control: CNC path control FANUC 32i-B
Control Brand: FANUC
Control Model: 32i-B
Counter Spindle: yes
Driven Tools: yes
Machine Height: 2300 mm
Machine Length: 3000 mm
Machine Weight: 6200 kg
Machine Width: 2140 mm
Number of Axes: 6
Spindle Power: 22 kW
Spindle Speed: 4200 RPM
X-axis Travel: 325 mm
Z-axis Travel: 840 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
1987
Aug. 18, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation. Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers. Why buyers buy with us
Verified sellers
We verify sellers and confirm key machine information before introducing buyers and sellers
Secure transactions
We help secure international transactions and assist both parties until the deal is completed
Worldwide logistics support
From loading to international transport, we help coordinate the logistics through our trusted partners
Dedicated experts
A machinery sales specialist manages your request from the first message to the completed purchase
Here is a selection of similar machines - Takisawa TS-4000YS

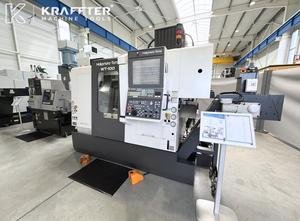

NAKAMURA-TOME WT-100 CNC lathe
France
2012
Turning length
503 mm
Type of CNC
FANUC 32i-B
Z-axis
503 mm
Number of turrets
2
Number of rotating tools
12
Spindle motor power
10 kW
Bar feeder
yes
Turning Ø
190 mm
X-axis
135 mm
Spindle taper
A2-5"
Number of tools on turret
12
Turning speed
6000 rpm
Tailstock
no
Request price
View product

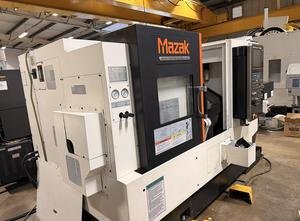

MAZAK QT NEXUS 250 MSY II CNC lathe
France
2012
Turning length
504 mm
Ø above the bed
250 mm
Length between centers
500 mm
X-axis
230 mm
Spindle taper
A2-8
Number of turrets
1
Number of rotating tools
12
Spindle motor power
26 kW
Turning Ø
675 mm
Ø above transversing slide
350 mm
Type of CNC
MATRIX
Z-axis
575 mm
Spindle bore
88 mm
Number of tools on turret
12
Turning speed
4000 rpm
Tailstock
no
Request price
View product

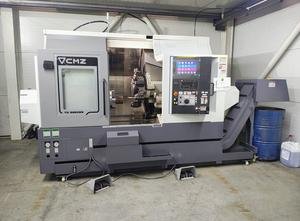

CNC Lathe - TD-30-YS-800/Fanuc 32iPlus
Low working hours
Romania
2025
Turning length
800 mm
Ø above the bed
550 mm
Length between centers
900 mm
X-axis
380 mm
Max workpiece weight
900 kg
Spindle bore
91 mm
Number of tools on turret
16
Turning speed
3500 rpm
Turning Ø
450 mm
Ø above transversing slide
380 mm
Type of CNC
Fanuc 32i Plus
Z-axis
800 mm
Spindle taper
ASA 8"' A2
Number of turrets
1
Number of rotating tools
16
Spindle motor power
42 kW
Request price
View product

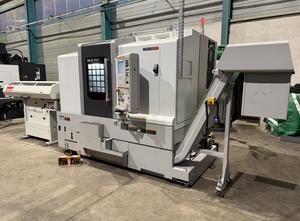

DMG MORI SEIKI NLX1500MC/500 cnc lathe
