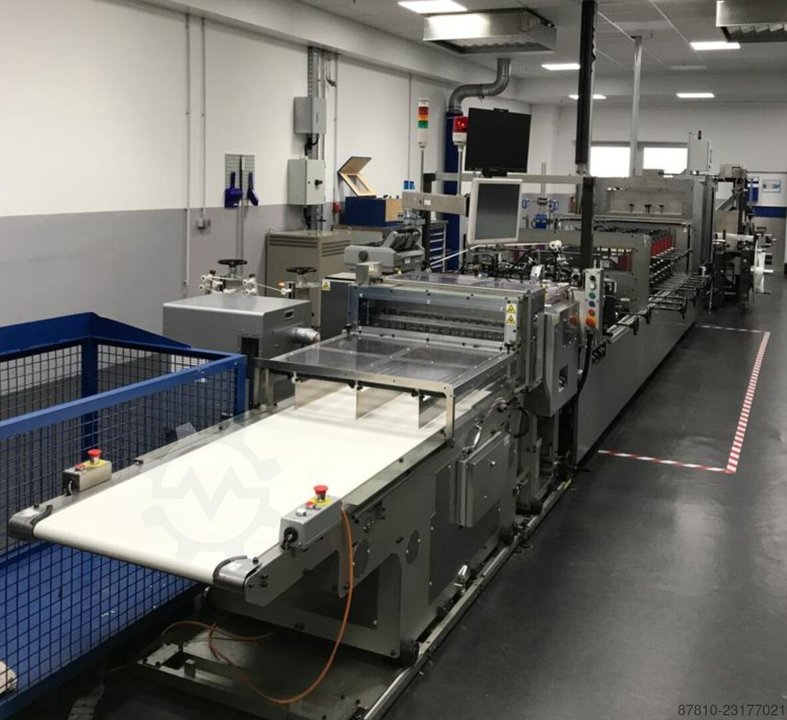

Totani BH-60DLLS

• Machine length: 13,300 mm
• Machine width: 3,300 mm
• Web width: 600 mm
• Operating voltage: 200 VAC, 50/60 Hz, 3-phase
• Power rating: 62 kVA
• Current: 179.1 A
• Maximum output with stacking system: 180 cycles/min
• Main operating side: left-hand side in the direction of travel
Production Capabilities:
• Three-side-sealed pouches
• Stand-up pouches with elliptical bottom (Doypack)
• Pouch width: 60–250 mm
• Pouch length: min. 110 mm, max. 270 mm (two lanes), max. 540 mm (single lane)
• Bottom gusset: 40–90 mm (extended, including edge trim)
• Processable materials: PP/PE, PET/PE, PET/ALU/PE
• Film thickness: 80–250 µm
Equipment:
• Parent-roll unwinder with web edge control
Lecgs Adl H Sjpt Ebtsah
• Unwinder with winding shafts for 76 mm and 152 mm cores
• Maximum clamping width: 1,200 mm
• Maximum roll diameter: 800 mm
• Bottom-gusset strip unwinders for 76 mm cores
• Maximum clamping width for bottom-gusset strips: 160 mm
• Maximum roll diameter for bottom-gusset strips: 800 mm
• Fine-dust extraction for bottom-gusset strips
• Punching-waste extraction for bottom holes
• Cooling unit for cooling stations
• Transformer for operation on a 400 V power supply
• Bottom sealing with cooling, individual sealing process
• Electrically adjustable top-seal station
• Automatic registration adjustment to the printed image
• Two draw rollers

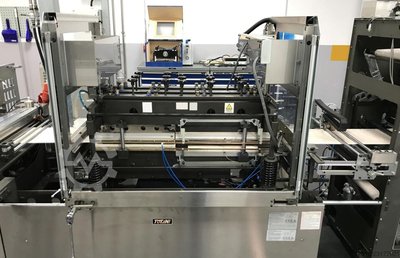

• Cross-sealing unit with six sealing stations and three cooling stations
• Punching station for hanging holes with two punches
• Punch holder for knives up to 260 mm wide
• Complete punching of the pouches from the film web
• Pouch stacking unit with discharge conveyor
• Packing table and roller conveyor
• Punching-grid rewinder with two winding positions
