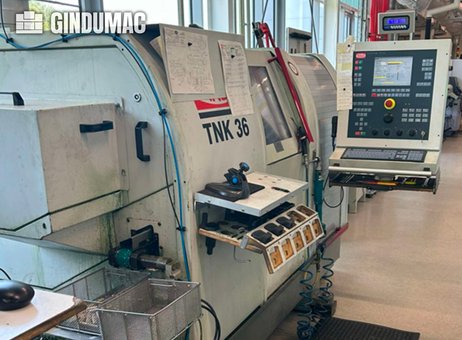

TRAUB TNK 36 CNC lathe

TRAUB TNK 36 CNC lathe
Top seller
View price
Request price
+34 679 …
TRAUB
TNK 36
2002
Germany
Lathes - CNC lathes
Turning length
200 mm
Turning Ø
32 mm
Ø above the bed
mm
Ø above transversing slide
mm
Length between centers
mm
Type of CNC
X-axis
370 mm
Z-axis
250 mm
Max workpiece weight
kg
Spindle taper
Spindle bore
36 mm
Number of turrets
Number of tools on turret
Number of rotating tools
Turning speed
6300 rpm
Spindle motor power
10.7 kW
Tailstock
no
Bar feeder
no
Length x width x height
- × - × -
Weight
kg
as-is, where-is
Datasheet
Traub TNK 36
11/08/2026
P260723236
TRAUB TNK 36 horizontal turning machine (manufactured 2002). This CNC turning center is set up for small-diameter, longer-turning work: turning diameter 32 mm and turning length 200 mm. Key axis travels include an X-axis travel of 370 mm and a Z-axis travel of 250 mm. The main spindle features a 36 mm bore, a spindle motor power of 10.7 kW and a maximum spindle speed of 6,300 rpm. The machine specification includes a counter spindle, driven tooling, through-spindle coolant and C-axis capability. Additional functional features listed in the specification include rigid tapping, tool monitoring, an electronic gearbox, motorized counter spindle with Z-axis travel, tool clamping and workpiece handling provisions (e.g., workpiece ejector and pneumatic gripper systems), and a Hainbuch Axfix chuck. The machine is supplied with TRAUB control TX8i. Auxiliary systems called out in the specification include a cooling unit and chip handling/filter equipment. The unit also includes communication and monitoring interfaces listed in the electrical cabinet (serial/RS232 interface and machine data interface for status and parts counting). A set of static and driven tool holders is indicated as included in the basic set. Optional equipment is noted in the original specification but is not included unless otherwise stated; please request the complete accessory list and confirmation of included items. For more detailed technical documentation, configuration details (driven tool count, exact I/O and optional packages) and current mechanical/electrical condition, please request the machine’s specification sheet and service/testing information from the seller before purchase. This 10-axis TRAUB TNK 36 horizontal turning machine was manufactured in 2002. It features a main spindle speed of 6,300 rpm and a counter spindle speed of 6,300 rpm. The machine includes a maximum workpiece diameter of 32 mm and a coolant tank capacity of approximately 360 liters. If you are looking to get high-quality turning capabilities, consider the TRAUB TNK 36 machine we have for sale. Contact us for further details.14" flat screen
Additional V24 RS232 interface in the electrical cabinet
MDE interface in the electrical cabinet (machine status and parts counter)
Rigid tapping without compensation chuck
Polyform function for C-axis
Tool monitoring
Main spindle bore: 36 mm
Main spindle drive power: AC 6.7 / 10.7 kW
Main spindle C-axis
Motorized counter spindle
Counter spindle bore: 32 mm
Counter spindle speed: 6,300 rpm
Counter spindle Z-axis travel: 250 mm
Counter spindle Z-axis rapid traverse: 30 m/min
Counter spindle C-axis
Counter clamping pressure device
Workpiece ejector
Increased feed force
Hainbuch Axfix chuck
X2 travel: 50 mm
Y2 travel: ±20 mm
Z2 travel: 100 mm
X2 rapid traverse: 15 m/min
Y2 rapid traverse: 15 m/min
Z2 rapid traverse: 15 m/min
12 driven tools (via central drive)
Driven tool speed: 6,000 rpm
Electronic gearbox
X3 travel: 370 mm
Z3 travel: 250 mm
X3 rapid traverse: 30–60 m/min
Z3 rapid traverse: 30 m/min
5 driven tools
Tool holder diameter: 40 mm
Driven tool speed: 6,000 rpm
Increased feed force
X4 travel: 73 mm
Y4 travel: ±50 mm
X4 rapid traverse: 15 m/min
Y4 rapid traverse: 15 m/min
5 driven tools
Tool holder diameter: 40 mm
Driven tool speed: 6,000 rpm
Left-hand workpiece conveyor
Pneumatic workpiece gripper
Gripper jaws: Ø5–8 mm / Ø8–20 mm / Ø20–36 mm
Maximum workpiece length: 200 mm
Maximum workpiece diameter: 32 mm

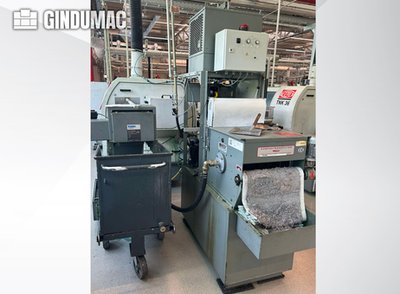

RESY compact belt filter
Cooling unit
Coolant tank capacity: approx. 360 l
Coolant pressure: 7 bar
Coolant flow rate: 50 l/min
Through-tool coolant: 30 bar
Coolant gun
Connected load: 22 kW
Optional equipment, not included:
KNOLL 240S-1/100 hinged belt chip conveyor (discharge height: 950 mm)
Bar feeder preparation (guide tubes Ø25 / Ø36)
Rotating workpiece stop (16 × 16 mm shank)
Brankamp CMS 100 collision monitoring (main and counter spindle)

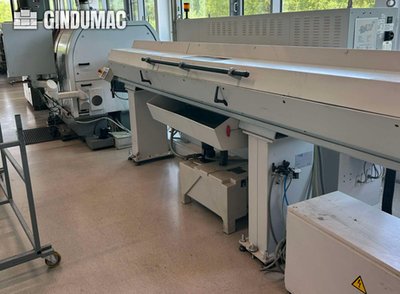

FMB Turbo 5-42 XT / 3200 "C" bar feeder
Basic set of static and driven tool holders included
Control Brand: TRAUB
Control Model: TX8i (64-bit)
Counter Spindle: yes
Driven Tools: yes
Max. Bar Diameter: 36 mm
Max. Workpiece Diameter: 32 mm
Number of Axes: 10
Tool Stations: 22
Spindle Power: 10.7 kW
Spindle Speed: 6300 RPM
Through-spindle Coolant: yes
X-axis Travel: 370 mm
Z-axis Travel: 250 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
