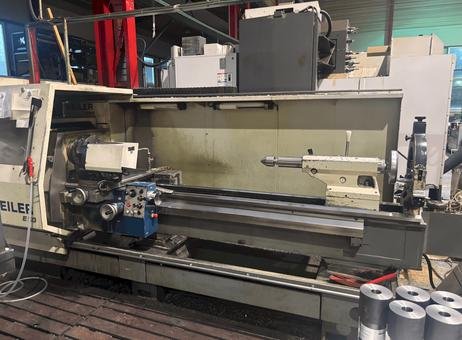

Weiler E50 cnc lathe

Weiler E50 cnc lathe
Top seller
View price
Request price
+34 679 …
Weiler
E50
2009
Austria
Lathes - CNC lathes
Turning length
1000 mm
Turning Ø
570 mm
Ø above the bed
570 mm
Ø above transversing slide
340 mm
Length between centers
1500 mm
Type of CNC
X-axis
mm
Z-axis
mm
Max workpiece weight
kg
Spindle taper
Spindle bore
83 mm
Number of turrets
1
Number of tools on turret
Number of rotating tools
Turning speed
2500 rpm
Spindle motor power
20 kW
Tailstock
no
Bar feeder
no
Length x width x height
3250.0 × 2290.0 × 1785.0
Weight
3850 kg
as-is, where-is
Datasheet
Weiler E50
11/08/2026
P250513343
The Weiler E50 is a CNC lathe machine manufactured in 2009, designed for robust and precise turning operations. It features a swing diameter over the bed of 570 mm and a swing diameter over the transversing slide of 340 mm, making it suitable for medium-sized workpieces. The spindle bore measures 83 mm, allowing for versatile machining capabilities. The machine has a bed width of 350 mm and supports turning tool cross-sections of 32 x 25 mm. It is powered by a spindle speed range from 1 to 2500 rpm, providing flexibility for various machining tasks. With overall dimensions of 3250 mm in length, 2290 mm in width, and 1785 mm in height, the E50 weighs approximately 3850 kg. It is equipped with a spindle head size 8, a quill diameter of 80 mm, and a quill stroke of 200 mm with an MK5 taper. The machine supports feed forces of 10,000 N longitudinally and 7,000 N planar, with feed rates up to 20 mm per revolution. Threading capabilities include metric, inch, module, and DP threads within a wide range. The machine includes a chuck mounted on the spindle for secure workpiece holding and a tailstock with a handwheel and lever for precise positioning. A tool turret is positioned near the workpiece for efficient machining operations. The control panel is branded Weiler and features a display screen and keypad buttons for CNC operation, running the SINUMERIK 810D powerline control system. Manual handwheels and control knobs for axis and feed control are also present. The machine shows typical signs of use, with some dirt, wear, and minor paint wear visible on surfaces, control panels, and handwheels. The tailstock spindle is clean and in good condition. The nameplate is legible and securely attached, indicating operating voltage of 400V, control voltage of DC 24V, connected load of 30 KVA, nominal current of 43 A, frequency of 50 Hz, and main fuses rated at 50 A. This Weiler E50 CNC lathe is a solid option for those seeking a reliable machine with comprehensive features for various turning applications. This Weiler E50 was manufactured in 2009. A robust horizontal turning machine featuring a swing diameter over bed of 570 mm and a spindle bore of 83 mm. It offers a bed width of 350 mm and a turning tool cross-section of 32 x 25 mm. Ideal for precise and efficient turning operations. Contact us for more information about this machine. Measurements width: 2290
Measurements depth: 3250
Measurements height: 1785
Machine weight: 3850
Spindle speed range: 1 - 2500
Number of axis: 2
Workpiece drm over bed: 570 mm
Workpiece drm over support: 340 mm
Workpiece Y: 1000/1600/2000 mm
Workpiece Z: 280 mm
Drive power (60% / 100% ed): 20/17 kw
Max. Torque at the turning spindle: 1600 nm
Gear stage i: 1-625 min-¹
Gear stage ii: 4-2500 min-¹
Bed width: 350 mm
Quill diameter: 80 mm
Quill stroke: 200 mm
Inner taper of the quill: mk 5
Turning tool cross-section (height/width): 32 x 25 mm
Spindle head according to din 55027: size 8
Spindle diameter in the front bearing: 120 mm
Spindle bore: 83 mm
Inner taper of the main spindle: metric 90
Feed range longitudinal and planar: 0-20 mm/rev
Feed force longitudinal: 10000 n
Feed force planar: 7000 n
Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min
Metric threads: 0. 1-400 mm
Inch threads: 1/4" - 56 g/1"
Module threads: 0. 125 - 28Machine still under power
DP threads: 1 - 224
Fixed steady rest clamping range: 12-150 mm / 120-270 mm
Moving steady rest clamping range: 12-125 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2019
1984
Aug. 14, 2026
GINDUMAC GmbH
Top seller
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation. Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers. Why buyers buy with us
Verified sellers
We verify sellers and confirm key machine information before introducing buyers and sellers
Secure transactions
We help secure international transactions and assist both parties until the deal is completed
Worldwide logistics support
From loading to international transport, we help coordinate the logistics through our trusted partners
Dedicated experts
A machinery sales specialist manages your request from the first message to the completed purchase
