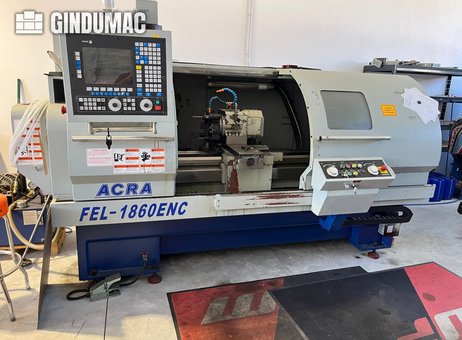

ACRA FEL-1860ENC/B CNC lathe

Horizontal turning machine manufactured in 2010. This ACRA FEL-1860ENC/B features a swing over bed of Ø460 mm and a distance between centers of 1,400 mm. It offers a maximum working diameter of Ø260 mm and a spindle speed range of 27–2,500 rpm. If you are looking to get high-quality turning capabilities, consider the ACRA FEL-1860ENC/B machine we have for sale. Contact us for further details.Spindle motor power: 7.5 kW continuous; 11 kW (30 min rating)
Spindle speed range: 27–2,500 rpm
Spindle bore: Ø60 mm
Rapid Traverse: X-axis 7.5 m/min; Z-axis 10 m/min
Pinol diameter: Ø68 mm
Pinol way: 153 mm
Pinol tool taper: MT4
Lubrication tank: 85 l
Swing over bed: Ø460 mm
Distance between centers: 1,400 mm
Max. working length: 1,250 mm
Max. working diameter: Ø260 mm
Bed width: 305 mm
Spindle speed control: infinitely variable

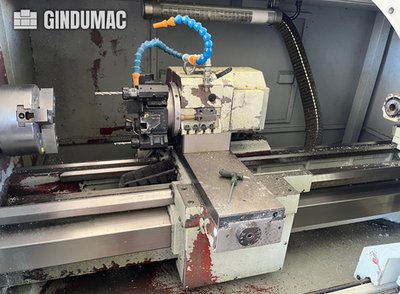

Tool post: Manual 4-way tool post
Tool size: 20 × 20 mm
Machine weight, gross: approx. 3,100 kg
CNC controller
Rotating center MT4
Level pads, 6 pcs
Tool set and box
Machine light
Operation manual and parts list
Control Brand: FAGOR
Control Model: Fagor 8055
Counter Spindle: no
Driven Tools: no
Machine Height: 2240 mm
Machine Length: 3360 mm
Machine Weight: 2600 kg
Machine Width: 2115 mm
Number of Axes: 2
Through-spindle Coolant: no
X-axis Travel: 230 mm
Z-axis Travel: 1350 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
