CNC Lathe - TD-30-YS-800/Fanuc 32iPlus
Low working hours
200,000 €
Price is negotiable
Make an offer
Manufacturer
CMZ
Model
TD-30-YS-800
Year
2025
Location
Romania
Category
Lathes - CNC lathes
Product id
P260205123
Buy this machine
Language
Language
cnc струг CMZ TD-30-YS-800
Soustruh cnc CMZ TD-30-YS-800
CMZ TD-30-YS-800 cnc drejebænk
CMZ TD-30-YS-800 Drehmaschine CNC
cnc τόρνος CMZ TD-30-YS-800
CNC Lathe - TD-30-YS-800/Fanuc 32iPlus
Torno cnc CMZ TD-30-YS-800
Tour cnc CMZ TD-30-YS-800
cnc tokarski stroj CMZ TD-30-YS-800
CMZ TD-30-YS-800 cnc eszterga
Tornio cnc CMZ TD-30-YS-800
cnc tekinimo staklės CMZ TD-30-YS-800
CMZ TD-30-YS-800 cnc-draaibank
Tokarka CNC CMZ TD-30-YS-800
Torno CNC CMZ TD-30-YS-800
strung cnc CMZ TD-30-YS-800
CMZ TD-30-YS-800 Токарный станок с ЧПУ
cnc strug CMZ TD-30-YS-800
CMZ TD-30-YS-800 cnc svarv
Cnc torna CMZ TD-30-YS-800
Get price & details
Details
Documents
(2)
About this seller
Specifications
Turning length
800 mm
Turning Ø
450 mm
Ø above the bed
550 mm
Ø above transversing slide
380 mm
Length between centers
900 mm
Type of CNC
Fanuc 32i Plus
X-axis
380 mm
Z-axis
800 mm
Max workpiece weight
900 kg
Spindle taper
ASA 8"' A2
Spindle bore
91 mm
Number of turrets
1
Number of tools on turret
16
Number of rotating tools
16
Turning speed
3500 rpm
Spindle motor power
42 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
4088.0
× 2129.0
× 2346.0
Weight
7545 kg
worked hours
150
hours
hours under power
150
hours
state
as-is, where-is
At local norms
yes
status
visible
Datasheet
CMZ TD-30-YS-800
Last availability date
22/04/2026
Show more
Automatic description (AI-Generated)
The CMZ TD-30-YS-800 is a CNC turning center designed for precision machining with advanced capabilities. This model features a robust construction with dimensions of 4088 mm in length, 2129 mm in width, and 2346 mm in height, and a substantial weight of 7545 kg, reflecting its industrial-grade build quality. It is equipped with a powerful 42 kW spindle motor, enabling a maximum turning speed of 3500 rpm, suitable for a wide range of turning applications.
The machine offers a turning length of 800 mm and a turning diameter capacity of 450 mm, with a maximum workpiece weight of up to 900 kg. It includes a single turret with 16 tool positions, all of which are rotating tools, allowing for versatile and efficient machining operations. The spindle bore measures 91 mm, facilitating the machining of larger diameter workpieces.
The machine incorporates a Y-axis and subspindle, enhancing its multi-axis machining capabilities and enabling complex part geometries. The working envelope includes an X-axis travel of 380 mm and a Z-axis travel of 800 mm, with a length between centers of 900 mm. The lathe is designed with a high-pressure coolant system to support effective cooling during operations.

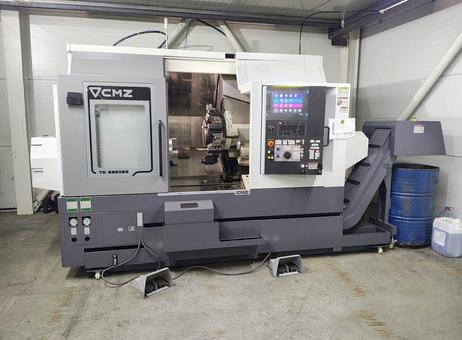

The CMZ TD-30-YS-800 features a Fanuc 32i Plus control system with a 15-inch touchscreen interface, providing user-friendly operation and programming. The control panel is located on the right side of the machine and includes multiple buttons and knobs for comprehensive control.

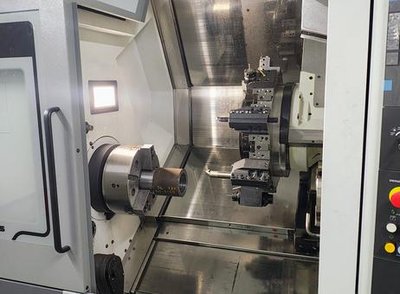

The work area is enclosed with a sliding door featuring a window labeled 'CMZ TD SERIES,' ensuring operator safety and visibility. A chip conveyor system is attached to the right rear side of the machine, facilitating efficient chip removal and maintaining a clean working environment.
Overall, the machine appears clean and well-maintained with no visible damage, indicating good upkeep. It is sold complete with all accessories as listed in the documentation. This CNC lathe is suitable for precision turning tasks in demanding industrial environments.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description

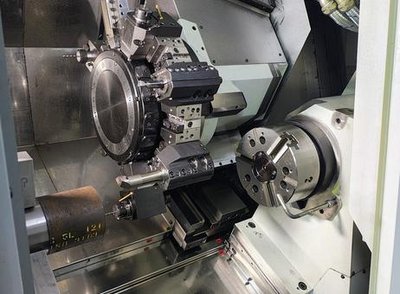

CMZ TD-30-YS-800 CNC turning center with Y-axis and subspindle, equipped with Fanuc 32i Plus control and 15” touchscreen. Machine features integrated main spindle and subspindle, 16-position servo turret with driven tools (12,000 rpm), high-pressure coolant system, side exit chip conveyor, and removable tool presetter. Less than 150 working hours. Excellent condition. Sold complete with all accessories listed in documentation.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Frequently Asked Questions (AI-Generated)
What control system does this TD-30-YS-800 CNC Lathe have?
This CNC Lathe TD-30-YS-800 is equipped with a Fanuc 32iPlus control system.
When was this TD-30-YS-800 CNC Lathe manufactured?
This TD-30-YS-800 CNC Lathe was manufactured in the year 2025.
What control system is equipped in this CNC Lathe TD-30-YS-800?
This CNC Lathe TD-30-YS-800 is equipped with a Fanuc 32iPlus control system.
What year was this machine manufactured?
This machine was manufactured in the year 2025.
What control system does this CMZ TD-30-YS-800 CNC lathe have?
This CMZ TD-30-YS-800 CNC lathe is equipped with a Fanuc 32iPlus control system.
What year was this machine manufactured?
This machine was manufactured in the year 2025.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
