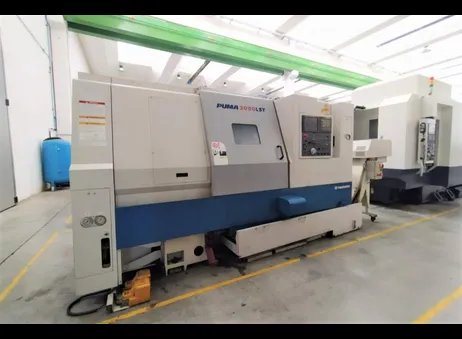

DAEWOO PUMA 2000 LSY cnc lathe

DAEWOO PUMA 2000 LSY cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
DAEWOO
Model
PUMA 2000 LSY
Year
2002
Location
Italy
Category
Lathes - CNC lathes
Product id
P240208073
Buy this machine
Language
Language
cnc струг DAEWOO PUMA 2000 LSY
Soustruh cnc DAEWOO PUMA 2000 LSY
cnc drejebænk DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY Drehmaschine CNC
cnc τόρνος DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY cnc lathe
Torno cnc DAEWOO PUMA 2000 LSY
Tour cnc DAEWOO PUMA 2000 LSY
cnc tokarski stroj DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY cnc eszterga
Tornio cnc DAEWOO PUMA 2000 LSY
cnc tekinimo staklės DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY cnc-draaibank
Tokarka CNC DAEWOO PUMA 2000 LSY
Torno CNC DAEWOO PUMA 2000 LSY
strung cnc DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY Токарный станок с ЧПУ
cnc strug DAEWOO PUMA 2000 LSY
DAEWOO PUMA 2000 LSY cnc svarv
Cnc torna DAEWOO PUMA 2000 LSY
Get price & details
+39 335 …
Show phone
Details
About this seller
Specifications
Turning length
760 mm
Turning Ø
330 mm
Ø above the bed
510 mm
Ø above transversing slide
330 mm
Length between centers
400 mm
Type of CNC
FANUC 18i-T
X-axis
250 mm
Z-axis
830 mm
Spindle taper
ASA A2-6
Spindle bore
76.2 mm
Number of turrets
1
Number of tools on turret
12
Number of rotating tools
12
Turning speed
4500 rpm
Spindle motor power
15 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
3500.0
× 1700.0
× 2060.0
Weight
5350 kg
worked hours
hours under power
state
good
At local norms
yes
status
visible
Datasheet
Daewoo Puma 2000SY
Last availability date
18/04/2026
Show more
Automatic description (AI-Generated)
The Daewoo PUMA 2000 LSY is a CNC lathe designed for precision and versatility in metal machining. Manufactured in 2002, this model features a robust construction with overall dimensions of 3500 mm in length, 1700 mm in width, and 2060 mm in height, weighing approximately 5350 kg. It offers a maximum turning length of 760 mm and a maximum turning diameter of 330 mm, making it suitable for a variety of medium-sized workpieces.
The lathe is equipped with a spindle motor delivering 15 kW of power and capable of speeds up to 4500 rpm. It has an X-axis travel of 250 mm and a Z-axis travel of 830 mm, as well as a Y-axis travel of ±50 mm and B-axis travel of 830 mm, facilitating complex machining operations. The turret holds 12 tools and can rotate at speeds up to 6000 rpm, enhancing machining flexibility.

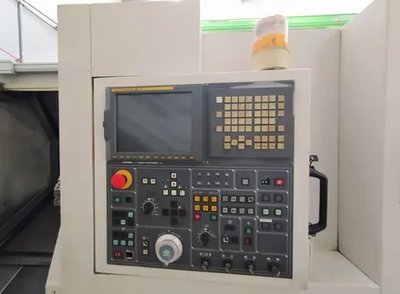

Control is managed via a Fanuc 18i-T CNC unit, allowing for precise and programmable machining processes. The machine includes accessories such as a swarf conveyor and a tool setter to aid in efficient operation. Additional features include a part catcher with belt and an automatic door opening system, which contribute to operational convenience and safety.
From visual inspection, the machine appears clean and well-maintained, mounted on a solid base with an integrated coolant and chip management system. The machining area is enclosed with a sliding door and viewing window, and the control panel is located on the right side, featuring a screen and multiple buttons, including an emergency stop. The control panel components appear intact with no visible damage.
This Daewoo PUMA 2000 LSY CNC lathe is a reliable choice for manufacturers seeking a versatile and precise turning center capable of handling complex components with efficiency.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Max Turning Length 760 Mm
Max Turning Diameter 330 Mm
Bar Capacity 65 Mm
Spindle 4500 Rpm; 11-15 Kw; Asa A2-6 ; 210 Mm
Counter Spindle 6000 Rpm; 5,5-7,5 Kw; 169 Mm
X-axis Travel 250 Mm
Y-axis Travel ± 50 Mm
Z-axis Travel 830 Mm
B-axis Travel 830 Mm
Rapid Feeds X-y-z 24 - 7,5 - 20 M/min
Driven Turret Head 12 Pos; 6000 Rpm
Control Unit Fanuc 18i-t
Weight 5350 Kg
Overall Dimensions 3500 X 1700 X 2060 Mm
Accessories Swarf Conveyor ; Tool Setter
Note Part Catcher With Belt; Automatic Door Opening System
this extra information is standard for this model. Please always double-check the details during a visit
The DAEWOO PUMA 2000 LSY CNC lathe, introduced in 2002, exemplifies precision and versatility in metal machining operations. Renowned for its advanced features and robust construction, this model has become a cornerstone in the manufacturing industry.
Equipped with a high-performance CNC control system, the PUMA 2000 LSY offers exceptional turning capabilities with unmatched accuracy. Its dual-spindle and Y-axis milling capability enable simultaneous machining of multiple features on a workpiece, reducing cycle times and enhancing productivity.
The machine's intuitive interface allows operators to program complex machining operations effortlessly, ensuring consistent and reliable results. With features such as live tooling and sub-spindle functionality, it facilitates the production of highly intricate components with minimal setup time.
Constructed with high-quality materials and components, the PUMA 2000 LSY exhibits outstanding durability and reliability, making it suitable for continuous operation in demanding production environments. Its sturdy frame and precise machining tolerances ensure stability and consistency throughout its operational lifespan.
Moreover, the machine's optional features and accessories provide flexibility and customization to meet specific production requirements, further enhancing its efficiency and versatility.
In summary, the DAEWOO PUMA 2000 LSY CNC lathe embodies precision, efficiency, and versatility, making it an indispensable asset in modern manufacturing processes, especially for complex component machining.
