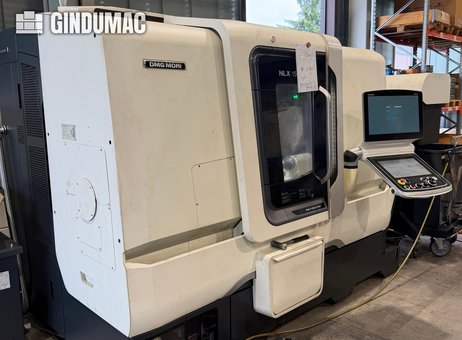

DMG MORI NLX1500MC/500 CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | DMG |
| Rok produkcji | 2015 |
| Manufacturer | DMG MORI |
| Model | NLX1500MC/500 |
| Year | 2015 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Type of CNC | FANUC 18i-tb |
| X-axis | 160 mm |
| Z-axis | 32 mm |
| Spindle bore | 60 mm |
| Number of turrets | 1 |
| Number of tools on turret | 5000 |
| Turning speed | 6000 rpm |
| Spindle motor power | 12 kW |
| Tailstock | no |
| Bar feeder | no |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Dmg Mori NLX1500MC/500 |
| Last availability date | 05/10/2026 |
| Product id | P260922241 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Turning length | 500 mm |
| Number of rotating tools | 12 |
| Turning Ø | 230 mm |
| Spindle taper | ASA 5 |
| Ø above the bed | 800 mm |
| Length between centers | 890 mm |
| Max workpiece weight | kg |
| Ø above transversing slide | 590 mm |
Opis
Machine name: DMG MORI NLX1500MC/500 CNC lathe
Manufacturer: DMG MORI
Model: NLX1500MC/500
Year of manufacture: 2015
Condition: As-is, where-is
Type: 3-axis CNC turning center with milling function
Nominal bed length: 500 mm
Spindle 1 power: 11 / 7.5 kW
Spindle 1 speed: 6,000 min-1
Spindle 1 through-spindle hole diameter: 61 mm
Spindle 1 chuck type: Hollow chuck (6")
Spindle 1 chuck manufacturer: Kitagawa
Spindle 1 chuck cylinder stroke check: Stroke end detection
Turret 1 type: 12 stations
Turret 1 milling function: Provided
Turret 1 rotary tool spindle output: 5.5 (3 min) / 3.7 kW
Turret 1 rotary tool spindle speed: 10,000 min-1
Turret 1 rotary tool spindle torque: 29 N·m (3 min) / 14 N·m
Turret 1 tool mounting method: By bolts
Turret 1 overhang of O.D. cutting rotary tool: 100 mm (Y-axis stroke control)

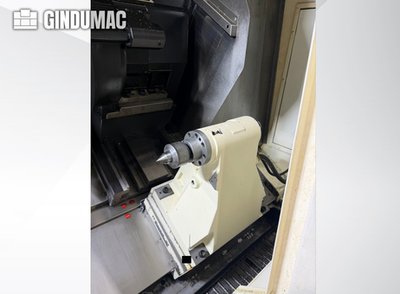

Tailstock: Provided (Programmable Z-axis travel type)
Tailstock spindle: Live Center MT4
Chip conveyor: Provided (Right disposal type, Hinge)
Coolant system: High-pressure (635 W / 1040 W), Water-soluble coolant
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: DMG MORI
Model: NLX1500MC/500
Year of manufacture: 2015
Condition: As-is, where-is
Type: 3-axis CNC turning center with milling function
Nominal bed length: 500 mm
Spindle 1 power: 11 / 7.5 kW
Spindle 1 speed: 6,000 min-1
Spindle 1 through-spindle hole diameter: 61 mm
Spindle 1 chuck type: Hollow chuck (6")
Spindle 1 chuck manufacturer: Kitagawa
Spindle 1 chuck cylinder stroke check: Stroke end detection
Turret 1 type: 12 stations
Turret 1 milling function: Provided
Turret 1 rotary tool spindle output: 5.5 (3 min) / 3.7 kW
Turret 1 rotary tool spindle speed: 10,000 min-1
Turret 1 rotary tool spindle torque: 29 N·m (3 min) / 14 N·m
Turret 1 tool mounting method: By bolts
Turret 1 overhang of O.D. cutting rotary tool: 100 mm (Y-axis stroke control)
Tailstock: Provided (Programmable Z-axis travel type)
Tailstock spindle: Live Center MT4
Chip conveyor: Provided (Right disposal type, Hinge)
Coolant system: High-pressure (635 W / 1040 W), Water-soluble coolant
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
