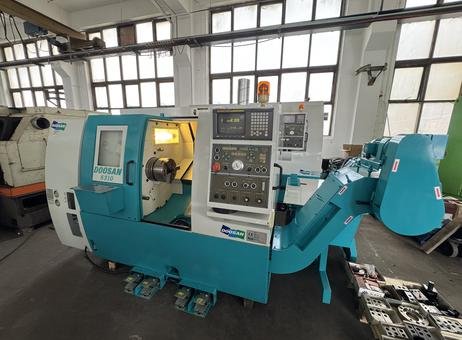

DOOSAN S-310 CNC lathe
9000.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 2000 |
| Manufacturer | DOOSAN |
| Model | S-310 |
| Year | 2000 |
| Location | Denmark |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above transversing slide | mm |
| X-axis | mm |
| Z-axis | mm |
| Spindle bore | mm |
| Turning speed | 6000 rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3350.0 × 1800.0 × 1900.0 |
| Weight | 3200 kg |
| state | like new |
| At local norms | yes |
| status | under power |
| Datasheet | Doosan S-310 |
| Last availability date | 03/09/2026 |
| Product id | P260724025 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 100 |
| Last activity | Sept. 6, 2026 |
| Type of CNC | FANUC 21It |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | A28 |
| Number of tools on turret | 12 |
| Ø above the bed | mm |
| Length between centers | mm |
| Max workpiece weight | kg |
Opis
DOOSAN S-310
Year:
2000
Max. Turning dia o/slide:
500 mm dia. Turning Length:
450 mm
Main motor power:
9/11 kw kw
Total Power Source:
36 kva
Tool Turret capacity:
12 VDI 30 stations
Max. Turning diameter:
310 mm dia. Boring trough drawing pipe:
65 mm dia. Main Spindle speed Range:
45-4500 rpm
X Axis Stroke:
200 mm
Z Axis Stroke:
450 mm
Control system:
Fanuc 18-T manuf. Hydr. Chuck Mainspindle:
Kitagava HS-10 - 250 mm dia
Weight:
3200 kg
Length:
3350 mm
Width:
1800 mm
Height:
1900 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Year:
2000
Max. Turning dia o/slide:
500 mm dia. Turning Length:
450 mm
Main motor power:
9/11 kw kw
Total Power Source:
36 kva
Tool Turret capacity:
12 VDI 30 stations
Max. Turning diameter:
310 mm dia. Boring trough drawing pipe:
65 mm dia. Main Spindle speed Range:
45-4500 rpm
X Axis Stroke:
200 mm
Z Axis Stroke:
450 mm
Control system:
Fanuc 18-T manuf. Hydr. Chuck Mainspindle:
Kitagava HS-10 - 250 mm dia
Weight:
3200 kg
Length:
3350 mm
Width:
1800 mm
Height:
1900 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
