ERGOMAT TNG 32 cnc lathe

ERGOMAT TNG 32 cnc lathe
Top seller
Price on request
Make an offer
Manufacturer
ERGOMAT
Model
TNG 32
Year
2022
Location
Croatia
Category
Lathes - CNC lathes
Product id
P250527235
Buy this machine
Language
Language
cnc струг ERGOMAT TNG 32
Soustruh cnc ERGOMAT TNG 32
ERGOMAT TNG 32 cnc drejebænk
ERGOMAT TNG 32 Drehmaschine CNC
cnc τόρνος ERGOMAT TNG 32
ERGOMAT TNG 32 cnc lathe
Torno cnc ERGOMAT TNG 32
Tour cnc ERGOMAT TNG 32
cnc tokarski stroj ERGOMAT TNG 32
ERGOMAT TNG 32 cnc eszterga
Tornio cnc ERGOMAT TNG 32
cnc tekinimo staklės ERGOMAT TNG 32
ERGOMAT TNG 32 cnc-draaibank
Tokarka CNC ERGOMAT TNG 32
Torno CNC ERGOMAT TNG 32
strung cnc ERGOMAT TNG 32
ERGOMAT TNG 32 Токарный станок с ЧПУ
cnc strug ERGOMAT TNG 32
ERGOMAT TNG 32 cnc svarv
Cnc torna ERGOMAT TNG 32
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Type of CNC
FANUC Oi-TF
X-axis
300 mm
Z-axis
175 mm
Spindle taper
Number of tools on turret
7
Turning speed
5000 rpm
Tailstock
no
Bar feeder
yes
-------------------
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
The ERGOMAT TNG 32 is a CNC lathe machine manufactured in 2022, designed for precision horizontal turning operations. It features a robust spindle capable of handling bar stock up to 32 mm in diameter, with a maximum spindle speed of 5000 rpm, powered by a motor delivering 3.7 kW at 100% duty cycle. The machine offers an X-axis travel of 300 mm and a Z-axis travel of 175 mm, allowing for versatile machining capabilities within these ranges.

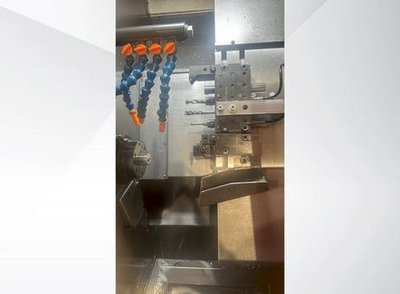

Equipped with a 7-position turret, the TNG 32 supports a variety of tooling configurations including a block for 3 tools, individual shafts with 20 mm diameter, and individual square shafts measuring 12 x 12 mm. The cross slide "gang-type" provides travel speeds of 12 m/min in the X-axis and 20 m/min in the Z-axis, facilitating efficient material removal.

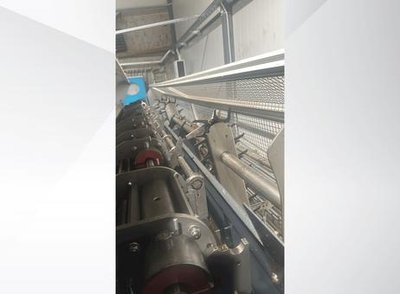

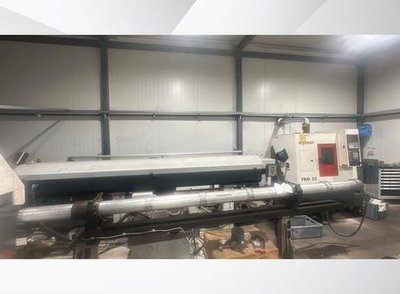

This lathe includes a Fanuc 0i-TF control system, known for its reliability and user-friendly interface. The machine is complemented by an LNS bar loader with a 3-meter capacity, enabling automated feeding of bar stock for continuous production. Cooling is managed by a system maintaining coolant pressure at 4 bar with a 100-liter tank capacity, and coolant is delivered through the tools to enhance machining performance and tool life.

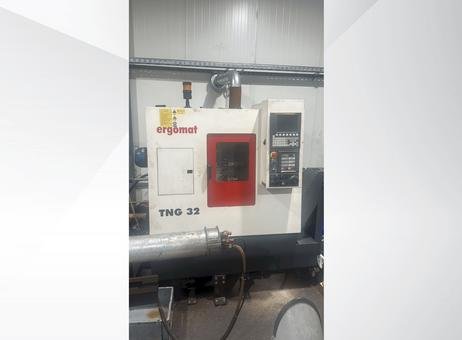

Additional features include a parts deflector accommodating parts up to 75 mm in length and a chips conveyor with a protective mesh guard to manage metal shavings safely. The machine's enclosure includes a red window door for viewing the machining area and an exhaust vent pipe for ventilation. The exterior shows signs of use with some dirt and wear marks, typical for equipment in an active workshop environment.
Weighing approximately 1160 kg, the ERGOMAT TNG 32 requires a floor space of about 1.4 m² without the chips conveyor and 2.1 m² with it installed. This combination of features makes it a capable and compact solution for various turning applications. For further information or to discuss your specific requirements, please contact us.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This ERGOMAT TNG 32 was manufactured in 2022. It features a spindle with a bar capacity of Ø 32 mm and a maximum speed of 5000 rpm. The horizontal turning machine includes a Fanuc Oi-TF control and an LNS bar loader with a 3m capacity. Consider the opportunity to buy this ERGOMAT TNG 32 horizontal turning machine. Contact us for more information.
Brand: FANUC
Model: Oi-TF
Spindle speed range: 5000
X-Axis Movement: 300
Z-Axis Movement: 175
Slots in storage: 7
LNS Bar Loader 3m
Power at 100% / 40% ed: 3. 7 / 4. 4 kw
Bar capacity: Ø 32 mm
Tool holder: block for 3 tools, shaft Ø 20mm, individual shaft Ø 20mm, individual square shaft 12 x 12 mm
Cross slide "gang-type": travel speed in x / z 12 / 20 m/min
Cooling system: coolant pressure 4 bar, tank capacity 100 liters
Parts deflector: parts length max. 75 mm
Machine still under power
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
