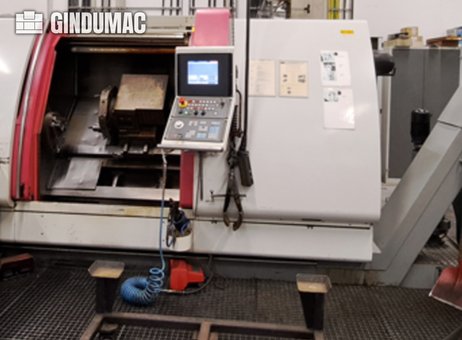

Gildemeister CTX 500 S2 CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Siemens |
| Rok produkcji | 2000 |
| Manufacturer | Gildemeister |
| Model | CTX 500 S2 |
| Year | 2000 |
| Location | Germany |
| Category | Lathes - CNC lathes |
| Turning length | 500 mm |
| Turning Ø | 230 mm |
| Ø above the bed | 330 mm |
| Ø above transversing slide | 260 mm |
| Length between centers | 450 mm |
| X-axis | 160 mm |
| Z-axis | 32 mm |
| Max workpiece weight | 110 kg |
| Spindle bore | 60 mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 12 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 6657.0 × 3285.0 × 2405.0 |
| Weight | 10000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Gildemeister CTX 500 S2 |
| Last availability date | 05/10/2026 |
| Product id | P261005197 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |

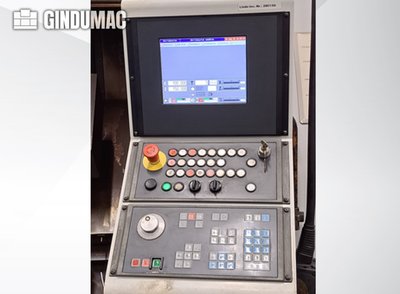

| Type of CNC | Siemens 840D power line |
| Number of turrets | 2 |
| Number of rotating tools | 6 |
| Spindle taper | ASA 5 |
| Number of tools on turret | 5000 |
Opis
Horizontal turning machine manufactured in 2000. This Gildemeister CTX 500 S2 features a maximum turning diameter of 455 mm and a turning length of 1097 mm. It includes a robust tool system with a disc turret and a maximum chuck diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 500 S2 machine we have for sale. Contact us for further details.- Max. Swing Over Bed / Slide: 680 mm / 670 mm
- Max. Turning Diameter over Face Slide: 455 mm
- Max. Turning Length: 1097 mm / 2097 mm
- Spindle Head Flange: 220 mm (Size 220h5)
- Spindle Bore: 107 mm
- Spindle Bearing Front Diameter: 140 mm
- Max. Chuck Diameter: 315 mm / 400 mm
- Tailstock Quill Taper: MK 5 / MK 6
- Tailstock Quill Diameter: 120 mm
- Tailstock Quill Stroke: 120 mm
- Tool System: Disc Turret
- Number of Slide Carriage Sets: 1
- Number of Face Slides: 1
- Longitudinal Stroke: 1097 mm / 2097 mm
- Face Stroke: 320 mm
- Max. Torque: 650 Nm / 2000 Nm
- Feed Force (Longitudinal / Plan): 15000 N / 8000 N
- Rapid Feed (Longitudinal / Plan): 30 m/min / 24 m/min
- Feed Speed Range: 0.5 - 5000 mm/min
- Main Drive Motor Type: B3
- Feed Drive X-Plan Motor: Siemens 1FK6063-6AF71-1AH0 (1.9 kW, 3000 rpm, IP64)
- Feed Drive Z-Longitudinal Motor: Siemens 1FK6101-8AF71-1AG0 (4.9 kW, 3000 rpm, IP64)
- Lubrication Motor: Vögele 113.50.000701C (0.13 kW, 2200 rpm, IP44)
- Hydraulic Motor: 2.2 kW, 1450 rpm, IP54
- Connected Load / Power Requirement: 58 kVA
- Voltage: 400 V
- Frequency: 50 Hz
- Current: 85 A
- Fuse Rating: 100 A
- Control Voltage: 230 V AC / 24 V DC
- Floor Space Required: 8.41 m x 4.3 m x 2.41 m (5607/6657 x 3285 x 2405 mm)
- Machine Weight: 8700 kg / 10000 kg

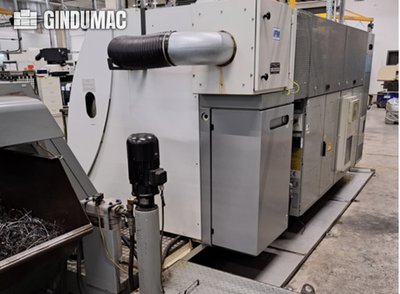

- Additional Equipment: Chip conveyor with chip container, coolant system, exhaust filter unit (IFM)
Control Brand: SIEMENS
Control Model: 840D
Counter Spindle: no
Driven Tools: yes
Number of Axes: 3
X-axis Travel: 320 mm
Z-axis Travel: 1097 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
- Max. Turning Diameter over Face Slide: 455 mm
- Max. Turning Length: 1097 mm / 2097 mm
- Spindle Head Flange: 220 mm (Size 220h5)
- Spindle Bore: 107 mm
- Spindle Bearing Front Diameter: 140 mm
- Max. Chuck Diameter: 315 mm / 400 mm
- Tailstock Quill Taper: MK 5 / MK 6
- Tailstock Quill Diameter: 120 mm
- Tailstock Quill Stroke: 120 mm
- Tool System: Disc Turret
- Number of Slide Carriage Sets: 1
- Number of Face Slides: 1
- Longitudinal Stroke: 1097 mm / 2097 mm
- Face Stroke: 320 mm
- Max. Torque: 650 Nm / 2000 Nm
- Feed Force (Longitudinal / Plan): 15000 N / 8000 N
- Rapid Feed (Longitudinal / Plan): 30 m/min / 24 m/min
- Feed Speed Range: 0.5 - 5000 mm/min
- Main Drive Motor Type: B3
- Feed Drive X-Plan Motor: Siemens 1FK6063-6AF71-1AH0 (1.9 kW, 3000 rpm, IP64)
- Feed Drive Z-Longitudinal Motor: Siemens 1FK6101-8AF71-1AG0 (4.9 kW, 3000 rpm, IP64)
- Lubrication Motor: Vögele 113.50.000701C (0.13 kW, 2200 rpm, IP44)
- Hydraulic Motor: 2.2 kW, 1450 rpm, IP54
- Connected Load / Power Requirement: 58 kVA
- Voltage: 400 V
- Frequency: 50 Hz
- Current: 85 A
- Fuse Rating: 100 A
- Control Voltage: 230 V AC / 24 V DC
- Floor Space Required: 8.41 m x 4.3 m x 2.41 m (5607/6657 x 3285 x 2405 mm)
- Machine Weight: 8700 kg / 10000 kg
- Additional Equipment: Chip conveyor with chip container, coolant system, exhaust filter unit (IFM)
Control Brand: SIEMENS
Control Model: 840D
Counter Spindle: no
Driven Tools: yes
Number of Axes: 3
X-axis Travel: 320 mm
Z-axis Travel: 1097 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
