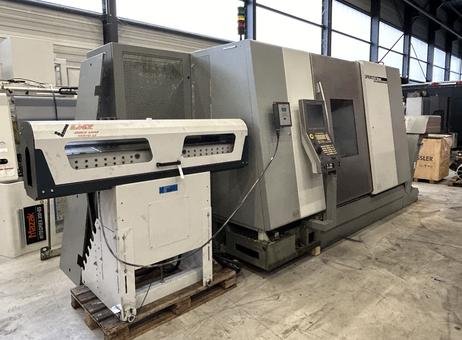

Gildemeister Sprint 65 Linear CNC Lathe with 2nd spindle, 3 turrets and Y-axis

Gildemeister Sprint 65 Linear CNC Lathe with 2nd spindle, 3 turrets and Y-axis
View price
Request price
Gildemeister
Sprint 65 Linear
2006
Netherlands
Your dedicated contact
Gabriel H. Ask a question
Lathes - CNC multi-spindle lathes
Nbr of spindles
2
Type of CNC
Fanuc 310i
Length x width x height
1990.0 × 4500.0 × 2300.0
Weight
9000 kg
Not specified
20/08/2026
P240411119

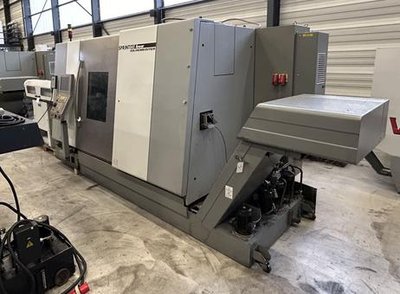

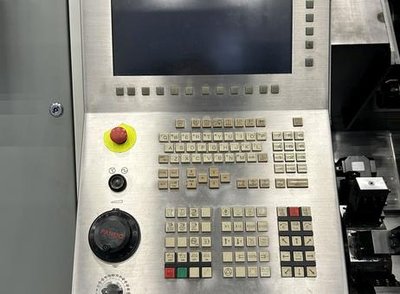

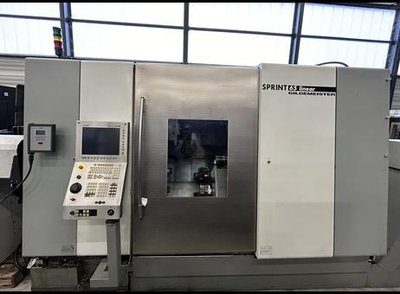

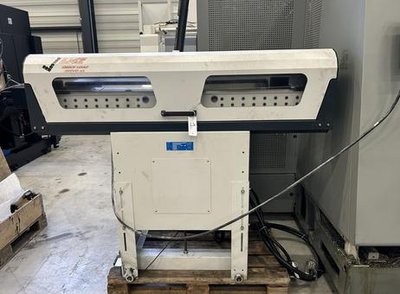

This listing features a Gildemeister Sprint 65 Linear CNC lathe, a robust multispindle automatic lathe designed for high precision and productivity. Manufactured in 2006, this machine has a compact footprint with dimensions of 1990 mm in length, 4500 mm in width, and 2300 mm in height, weighing approximately 9000 kg. The lathe is equipped with two spindles, each capable of a maximum speed of 5,000 revolutions per minute (rpm), powered by spindle motors rated at 25/20 kW. It features three turrets, each capable of holding 12 tools with a VDI 30 tool taper, allowing for a versatile range of machining operations. The machine offers precise axis movements: X-axis with 165 mm travel, Y-axis with 80 mm travel, Z-axis with multiple travels of 220 mm, 150 mm, and 650 mm, and a W-axis (subspindle to main spindle) travel of 690 mm. The C-axis indexing precision is 0.0001°, supporting intricate machining tasks. A notable accessory included is the LNS Quick Load Servo 65 bar feeder, which enhances automation by enabling continuous feeding of bar stock into the lathe, thereby increasing efficiency. The operator control panel is positioned on the right side of the machine, featuring a screen and various buttons for intuitive operation. The machine shows signs of use with some dirt and wear marks but appears to be in good overall condition. This Gildemeister Sprint 65 Linear CNC lathe is suitable for complex, high-volume production environments requiring reliable multispindle machining capabilities. CNC Lathe (with 2nd spindle, 3 turrets and Y-axis)
Spindle bore diameter 65 mm
Spindle speed 5.000 R/min
Spindle motor 25/20 kW
Spindle speed counter spindle 5.000 R/min
X-axis movement 165 / 165 / 165
Y-axis movement 80 mm
Z-axis movement 220 / 150 / 650 mm
W-axis movement (subspindle to mainspindle) 690 mm
C-axis indexing 0,0001°
Number of turret 3
Number of tools on turret 12 (3x 12)
Tool taper VDI 30
Bar feeder LNS Quick Load Servo 65
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2009
