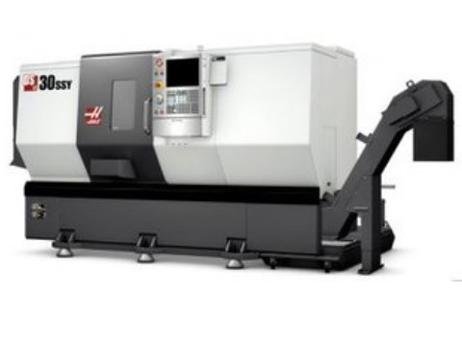

Haas DS-30SSY cnc lathe

Haas DS-30SSY cnc lathe
View price
Request price
+385 994…
Haas
DS-30SSY
2016
Croatia
Lathes - CNC lathes
Turning length
584.2 mm
Turning Ø
406 mm
Ø above the bed
806 mm
Ø above transversing slide
527 mm
Type of CNC
X-axis
406 mm
Z-axis
584 mm
Spindle taper
Spindle bore
51 mm
Number of turrets
1
Number of tools on turret
24
Turning speed
4800 rpm
Spindle motor power
22.4 kW
Tailstock
no
Bar feeder
no
Length x width x height
4350.0 × 2290.0 × 2340.0
Weight
7258 kg
good
Datasheet
Haas DS-30SSY
31/07/2026
P220708086
This Haas DS-30SSY CNC lathe, manufactured in 2016, is a robust and versatile machine designed for precision turning operations. It features a substantial working envelope with an X-axis travel of 406 mm and a Z-axis travel of 584 mm, complemented by a Y-axis travel of ±51 mm, enabling complex multi-axis machining. The machine is equipped with dual spindles, each with a spindle bore of 51 mm and capable of reaching speeds up to 4800 rpm. The main spindle is powered by a 22.4 kW motor delivering up to 373 Nm of torque at 600 rpm, while the right spindle offers 14.9 kW power and 149 Nm torque at 700 rpm. The DS-30SSY includes a hybrid 24-station turret (12-VDI / 12-BOT) supporting live tooling with speeds up to 6000 rpm and C-axis capability, allowing for enhanced machining flexibility. The machine also features a belt-type drive system and an automatic tool presetter option. For efficient chip management, a conveyor-type chip evacuation system is integrated, accompanied by a 3/4 HP coolant system and a high-pressure coolant option rated at 21 bar. Additional functionalities include rigid tapping, spindle orientation, auto jet air blast, and a parts catcher system, enhancing productivity and precision. The control unit is a Haas L11.xx with a 15-inch LCD display, supporting USB and RS232 input devices for seamless program transfer and operation. The machine measures 4350 mm in length, 2290 mm in width, and 2340 mm in height, with a total weight of 7258 kg. Visually, the lathe has an enclosed work area and a control panel located on the front left side, featuring a display and operational buttons. A chip conveyor is mounted on the right side for effective chip removal. The machine appears clean and well-maintained, with no visible signs of damage or excessive wear. This CNC lathe is suitable for demanding manufacturing environments requiring precision and versatility. Travel X (mm):
406
Travel Y (mm):
+/- 51
Travel Z (mm):
584
Chuck size:
8.3" A2-6
Spindle bore (mm):
51
Spindle speed (rpm):
4800
Spindle power (kW):
22.4 kW
Spindle torque (Nm):
373 Nm @ 600 rpm
Drive system:
Belt type
Chuck size (right):
8.3" A2-5
Spindle bore (right) (mm):
51
Spindle speed (right) (rpm):
4800
Spindle power (right) (kW):
14,9 kW
Spindle torque (right) (Nm):
149 Nm @ 700 rpm
Tool changer type:
Hybrid 12-VDI / 12-BOT
No. of tool on turrets:
24
Coolant:
Yes, 3/4HP
High pressure coolant:
Yes, 21 Bar
Chip evacuation:
Yes, conveyor type
Live tooling (rpm):
6000
Control unit:
Haas L11.xx | 15"LCD
Input device:
USB / RS232
Dimension (cm):
435 cm x 229 cm x 234 cm
Mach. weight (kg):
7258.0 kg
Options:
LT - 6000-rpm Live Tooling with C-axis (24-station VB Hybrid Turret)
ATP - Automatic Tool Presetter
CONVEYOR - Chip Conveyor Belt Type
HPC - High Pressure Coolant 21 bar
RTAP - Riggid Tapping
SO - Spindle Orientation
JET - Auto Jet Air Blast
PCAT - Parts Chatcher System
CABCOOL
2016
25
July 31, 2026
Teximp Retro D.O.O. Teximp Retro
is a trusted marketplace for premium rebuilt and pre owned CNC machine tools, offering high quality equipment backed by over 30 years of industry expertise. As part of the Teximp Group, the company specializes in sourcing, refurbishing, and supplying reliable lathes, machining centers, and other precision machine tools across Europe. Every machine is rebuilt with original parts and undergoes rigorous quality inspections to ensure outstanding performance and reliability. Combining international reach, technical expertise, and customer focused service, Teximp Retro provides cost effective machining solutions and long term value for manufacturers worldwide. 2016
25
Why buyers buy with us
Verified sellers
We verify sellers and confirm key machine information before introducing buyers and sellers
Secure transactions
We help secure international transactions and assist both parties until the deal is completed
Worldwide logistics support
From loading to international transport, we help coordinate the logistics through our trusted partners
Dedicated experts
A machinery sales specialist manages your request from the first message to the completed purchase
Here is a selection of similar machines - Haas DS-30SSY
NAKAMURA-TOME WT-100 CNC lathe
France
2012
Turning length
503 mm
Type of CNC
FANUC 32i-B
Z-axis
503 mm
Number of turrets
2
Number of rotating tools
12
Spindle motor power
10 kW
Bar feeder
yes
Turning Ø
190 mm
X-axis
135 mm
Spindle taper
A2-5"
Number of tools on turret
12
Turning speed
6000 rpm
Tailstock
no
Request price
View product

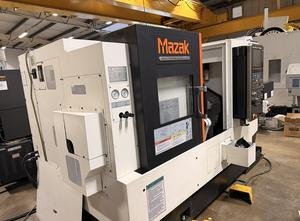

MAZAK QT NEXUS 250 MSY II CNC lathe
