Hurco CNC TMX 8 MYSi CNC lathe

Hurco CNC TMX 8 MYSi CNC lathe
Top seller
Price on request
Make an offer
Manufacturer
Hurco
Model
CNC TMX 8 MYSi
Year
2023
Location
Germany
Category
Lathes - CNC lathes
Product id
P260226302
Buy this machine
Language
Language
CNC струг Hurco CNC TMX 8 MYSi
CNC soustruh Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi CNC-drejebænk
Hurco CNC TMX 8 MYSi CNC-Drehmaschine
Τόρνος CNC Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi CNC lathe
Torno CNC Hurco CNC TMX 8 MYSi
Tour CNC Hurco CNC TMX 8 MYSi
CNC tokarski stroj Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi CNC esztergagép
Tornio CNC Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi CNC tekinimo staklės
Hurco CNC TMX 8 MYSi CNC-draaibank
Tokarka CNC Hurco CNC TMX 8 MYSi
Torno CNC Hurco CNC TMX 8 MYSi
Strung CNC Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi Токарный станок с ЧПУ
CNC strug Hurco CNC TMX 8 MYSi
Hurco CNC TMX 8 MYSi CNC-svarv
CNC torna Hurco CNC TMX 8 MYSi
Get price & details
+34 679 …
Show phone
Details
About this seller
Specifications
Turning length
560 mm
Turning Ø
508 mm
Ø above the bed
335 mm
Type of CNC
X-axis
203 mm
Z-axis
560 mm
Spindle taper
Number of tools on turret
12
Turning speed
4500 rpm
Spindle motor power
25 kW
Tailstock
no
Bar feeder
no
-------------------
Weight
7500 kg
worked hours
hours under power
state
as-is, where-is
At local norms
---------
status
Last availability date
23/04/2026
Show more
Automatic description (AI-Generated)
The Hurco CNC TMX 8 MYSi is a 5-axis turn-mill center manufactured in 2023, designed for precision machining with substantial capabilities. It supports a maximum turning diameter of 508 mm and a turning length of 560 mm, with a maximum part diameter over the bed of 335 mm. The machine features a robust main spindle motor power of 25 kW, delivering a maximum spindle speed of 4,500 rpm. The sub-spindle reaches up to 6,000 rpm, allowing for versatile machining operations.
The machine’s tool turret accommodates 12 tools, utilizing a VDI 40 interface, and supports driven tools with speeds up to 5,000 rpm, powered at 6.3 kW with 28 Nm torque. Axis travels include 203 mm on the X-axis and 560 mm on the Z-axis, with rapid traverse rates of 24 m/min for the X-axis, 12 m/min for the Y-axis, and 30 m/min for the Z and W axes. Positioning accuracy is 0.01 mm with repeatability of 0.005 mm, ensuring high precision.
This unit weighs approximately 7,500 kg and operates on a 400 V, 50 Hz, three-phase electrical supply. The coolant system has a capacity of 203 liters. The machine is equipped with a main spindle chuck size of 203 mm and a sub-spindle chuck size of 150 mm, with bar capacities of 64.5 mm and 46 mm respectively.

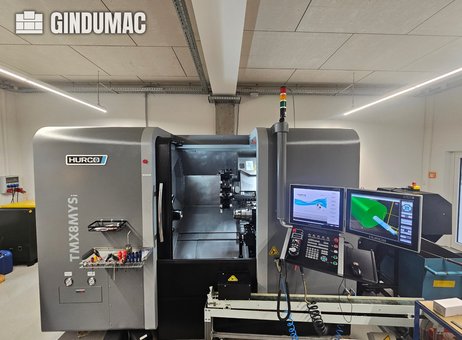

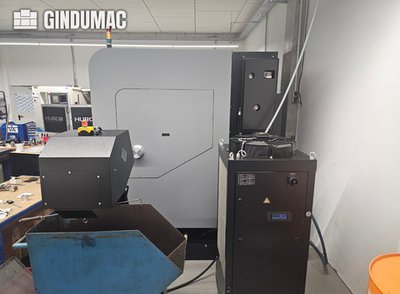

The CNC lathe includes a control panel with dual monitors and an emergency stop button for operator convenience and safety. The machining area is accessible through a door, and the interior is clean and well-maintained. Safety warning labels are present on the machine near the door and control panel. A coolant or chip conveyor system is attached, accompanied by a cooling or filtration unit with gauges and controls. Various hand tools are stored on a rack attached to the machine's side. Overall, the exterior shows minor signs of use but remains in good condition, with no visible damage to critical components.
This Hurco TMX 8 MYSi is suitable for users seeking a high-quality, versatile CNC turn-mill center with extensive tooling and axis capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
This 5-axis Hurco CNC TMX 8 MYSi was manufactured in 2023. It features a maximum turning diameter of 508 mm and a turning length of 560 mm, with a main spindle speed of 4,500 rpm and a sub-spindle speed of 6,000 rpm. The machine includes a tool turret with 12 stations and a rapid traverse of 24 m/min in the X-axis. If you are looking to get high-quality turning and milling capabilities, consider the Hurco CNC TMX 8 MYSi turn-mill centre. Contact us for further details.X-axis travel: 203 mm
Y-axis travel: ±55 mm
Z-axis travel: 560 mm
W-axis travel: 640 mm
Rapid traverse X/Y/Z/W: 24 / 12 / 30 / 30 m/min
Positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
Max turning diameter: 508 mm
Max turning length: 560 mm
Max part diameter over bed: 335 mm
Tool turret: VDI 40
Number of stations: 12
Max driven tool speed: 5000 rpm
Driven tool power: 6.3 kW
Driven tool torque: 28 Nm
Main spindle max speed: 4500 rpm
Sub-spindle max speed: 6000 rpm
Synchronous spindle speed: 2500 rpm
Main spindle power (S6 / S1): 25 / 17.2 kW
Sub-spindle power (S6 / S1): 15 / 11 kW
Main spindle torque (S6 / S1): 239 / 164 Nm
Sub-spindle torque (S6 / S1): 102 / 75 Nm
Main spindle chuck size: 203 mm
Sub-spindle chuck size: 150 mm
Main spindle bar capacity: 64.5 mm
Sub-spindle bar capacity: 46 mm
Electrical supply: 400 V, 50 Hz, 3 phase
Largest motor: 22 kVA
Largest motor current: 32 A
Full load: 58 kVA
Full load current: 83 A
Short circuit rating: 5 kA RMS symmetrical
Interrupt capacity: 10000 A
Max ambient temperature: 35 °C
Coolant tank capacity: 203 L
Machine weight: 7500 kg
Transport weight: 8250 kg
The BMT65 mounts are included; swivel mounts are not.
Number of Axes: 5
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
