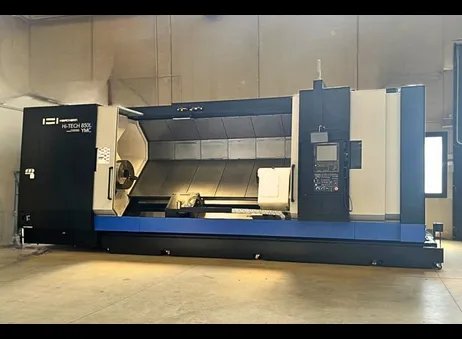

HWACHEON HI-TECH 850L YMC cnc lathe

HWACHEON HI-TECH 850L YMC cnc lathe
Verified seller
Price on request
Make an offer
Manufacturer
HWACHEON
Model
HI-TECH 850L YMC
Year
2023
Location
Italy
Category
Lathes - CNC lathes
Product id
P250217228
Buy this machine
Language
Language
cnc струг HWACHEON HI-TECH 850L YMC
Soustruh cnc HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC cnc drejebænk
HWACHEON HI-TECH 850L YMC Drehmaschine CNC
cnc τόρνος HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC cnc lathe
Torno cnc HWACHEON HI-TECH 850L YMC
Tour cnc HWACHEON HI-TECH 850L YMC
cnc tokarski stroj HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC cnc eszterga
Tornio cnc HWACHEON HI-TECH 850L YMC
cnc tekinimo staklės HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC cnc-draaibank
Tokarka CNC HWACHEON HI-TECH 850L YMC
Torno CNC HWACHEON HI-TECH 850L YMC
strung cnc HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC Токарный станок с ЧПУ
cnc strug HWACHEON HI-TECH 850L YMC
HWACHEON HI-TECH 850L YMC cnc svarv
Cnc torna HWACHEON HI-TECH 850L YMC
Get price & details
+39 335 …
Show phone
Details
About this seller
Specifications
Turning length
3500 mm
Turning Ø
920 mm
Ø above the bed
1050 mm
Ø above transversing slide
920 mm
Length between centers
3500 mm
Type of CNC
X-axis
485 mm
Z-axis
3650 mm
Max workpiece weight
6873 kg
Spindle taper
Spindle bore
164 mm
Number of tools on turret
12
Number of rotating tools
12
Turning speed
1400 rpm
Spindle motor power
7.5 kW
Tailstock
no
Bar feeder
no
-------------------
Length x width x height
7860.0
× 3180.0
× 3020.0
Weight
27100 kg
worked hours
hours under power
state
as-is, where-is
At local norms
yes
status
visible
Last availability date
18/04/2026
Show more
Automatic description (AI-Generated)
This HWACHEON HI-TECH 850L YMC CNC lathe, manufactured in 2023, is a large and robust machine designed for heavy-duty turning operations. It features a maximum turning length of 3500 mm and a maximum turning diameter of 920 mm, with a turning diameter above the bed of 1050 mm. The lathe supports a maximum workpiece weight of 6873 kg, making it suitable for substantial machining tasks. The spindle bore diameter is 164 mm, allowing the passage of sizable bars for machining. The spindle operates at speeds up to 1400 rpm and is powered by a 7.5 kW motor. The machine offers X-axis travel of 485 mm and Z-axis travel of 3650 mm, providing ample range for complex turning operations.

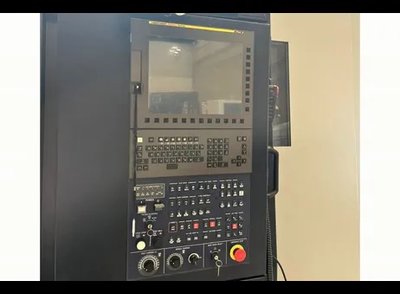

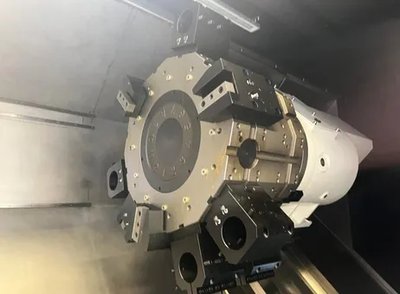

Equipped with a motorized BMT85 tool turret, this lathe accommodates 12 tools, all of which are rotating, enabling versatile machining capabilities. The turret rotates at speeds up to 2500 rpm and is driven by a motor rated between 7.5 and 11 kW. The lathe is controlled via a HEIDENHAIN CNC control panel, which includes a screen, keypad, and multiple buttons and dials, ensuring precise and user-friendly operation.

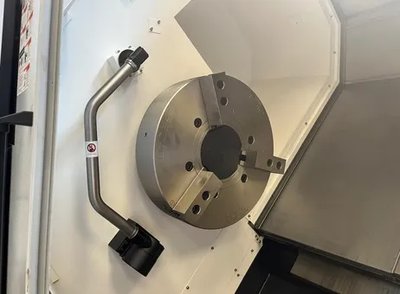

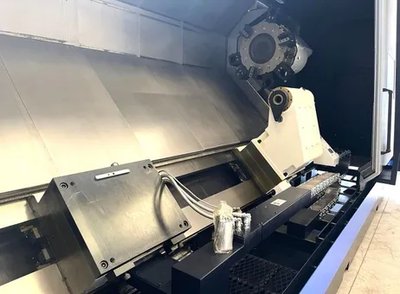

The overall dimensions of the machine are 7860 mm in length, 3180 mm in width, and 3020 mm in height, with a total weight of 27,100 kg. The machine features an enclosure with a three-jaw chuck mounted inside, which is visible and appears clean and well-maintained. The lathe bed, carriage, turret, and chuck also show no visible signs of damage and are in good condition, reflecting careful upkeep.
This CNC lathe is designed for demanding industrial applications requiring high precision and durability. Its combination of substantial size, powerful spindle, extensive axis travels, and a fully equipped tool turret makes it a versatile and reliable choice for complex turning tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Max Rotating Diameter 1050 Mm
Max Turning Length 3500 Mm
Max Turning Diameter 920 Mm
Bar Passage 164mm
Spindle 1400rpm; 37-45 Kw; 6873 Nm; Asa A2-15
X-axis Travel 485 Mm
Y-axis Travel 220mm
Z-axis Travel 3650 Mm
Range Change 4 Speeds
Quick Advance Xyz 10 - 12 - 10 M/min
Motorized Tool Turret Bmt85 ; 12 Pos; 2500rpm; 7.5-11 Kw
Check Fanuc 0i-t Plus
Weight 27100 Kg
Overall Dimensions 7860 X 3180 X 3020 Mm
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
