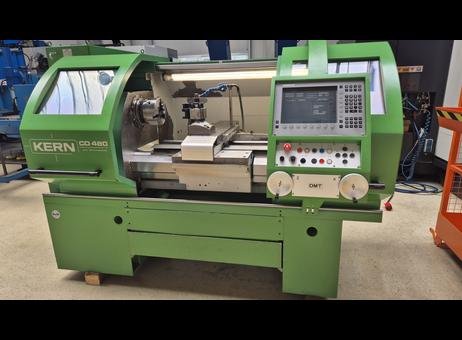

Lathe - cycle-controlled DMT CD 480

Lathe - cycle-controlled DMT CD 480
View price
Request price
+0049 21…
DMT
CD 480
2010
Germany
Lathes - CNC lathes
Turning length
830 mm
Turning Ø
475 mm
Ø above the bed
475 mm
Ø above transversing slide
260 mm
Length between centers
1000 mm
Type of CNC
HEIDENHAIN MANUALplus 620
Spindle taper
Spindle bore
70 mm
Turning speed
3000 rpm
Spindle motor power
25 kW
Tailstock
yes
Bar feeder
no
Weight
2900 kg
good
under power
18/08/2026
P260618086

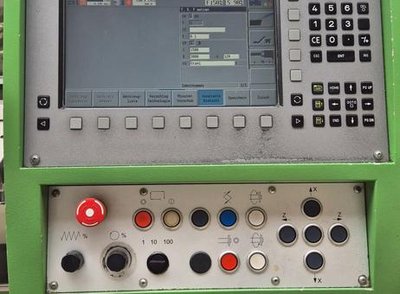

CNC lathe offered with HEIDENHAIN MANUALplus 620 control and DXF conversion software for processing contours from CAD DXF files. The control supports USB and Ethernet interfaces located inside the control cabinet, allowing data exchange and program transfer through standard network and removable-media connections. The machine is equipped with a frequency-controlled coolant system, adjustable in the range of 1–4 bar. Position feedback on both the X and Z axes is provided by glass scales for direct position measurement. Tooling is handled via a 4-position PARAT quick-change tool holder, size 2, supplied with several inserts. A 3-jaw chuck by RÖHM, type ZS 200, is specified for workholding. The tailstock is fitted with a roller guide to facilitate movement along the bed. Two movable safety doors are fitted to the machine for operator protection and access control. The main motor fan is temperature-controlled to reduce acoustic output, noted as suitable for particularly quiet environments such as laboratory workshops and schools. This description summarizes the listed features and standard accessories included in the product information: HEIDENHAIN MANUALplus 620 control, DXF conversion software, Ethernet and USB interfaces in the control cabinet, frequency-controlled coolant (1–4 bar), glass scales on X and Z, 4-position PARAT tool holder (size 2) with several inserts, RÖHM ZS 200 3-jaw chuck, roller-guided tailstock, two movable safety doors, and temperature-controlled main motor fan. No additional specifications, test results, hours of use, or warranty information are provided in the current listing. * Control HEIDENHAIN MANUALplus 620
* DXF conversion software (processing of contours in DXF format from CAD drawings)
* Ethernet and USB interfaces inside the control cabinet
* Coolant system (frequency-controlled), 1–4 bar
* Glass scale for direct position measurement on the X and Z axes

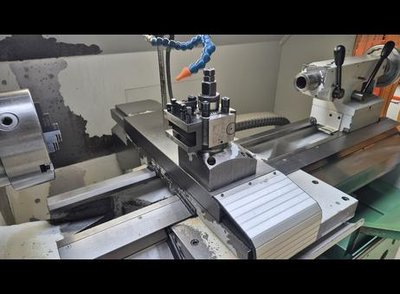

* 4-position PARAT quick-change tool holder, size 2, with several inserts

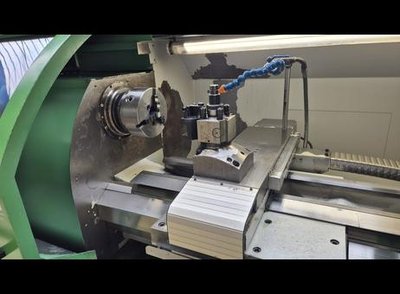

* 3-jaw-chuck RÖHM ZS 200

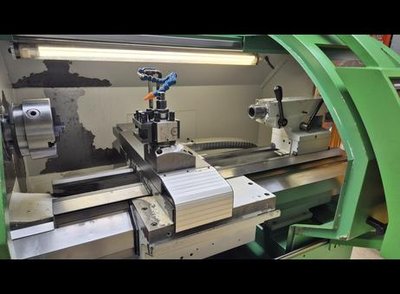

* Roller guide for easier movement of the tailstock
* 2 movable safety doors
* Main motor fan control, temperature-controlled, for particularly quiet environments such as laboratory workshops and schools
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase. 2020
