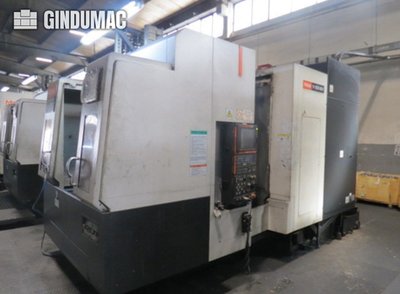

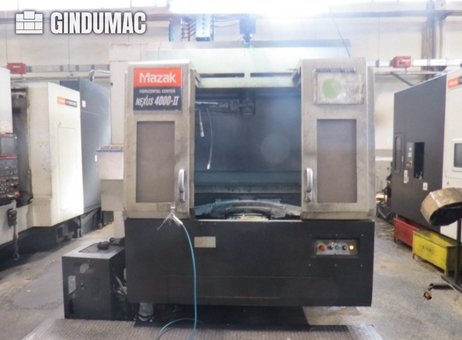

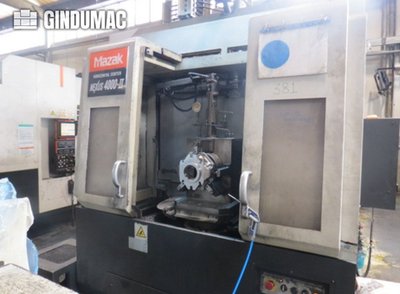

Mazak NEXUS 4000 II CNC lathe

This 4-axis Mazak NEXUS 4000 II was manufactured in 2011. It features an X-axis travel of 560 mm, Y-axis travel of 630 mm, and Z-axis travel of 640 mm. The machine has a maximum workpiece diameter of Ø630 mm and a weight capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the Mazak NEXUS 4000 II horizontal machining centre we have for sale. Contact us for further details. Overview
brand: Mazak
year: 2011
MODEL: NEXUS 4000 II
application type: Milling
Location: Turkey
machine type: Horizontal Machining Centre
Technical Information - Mazak NEXUS 4000 II
Dimensions
Machine Height: 2791 mm
Machine Length: 4463 mm
Machine Weight: 9500 kg
Machine Width: 2160 mm
Movement
Number of Axes: 4
X-axis Travel: 560 mm
Y-axis Travel: 630 mm
Z-axis Travel: 640 mm
Technical Specification
Max. Tool Weight: 8 kg
Spindle Power: 30 kW
Spindle Speed: 18000 RPM
Taper Size: BT 40
Tool Stations: 40
Additional Information
Travels
Rapid traverse (X/Y/Z): 60,000 mm/min
Max. cutting feed: 60,000 mm/min
Workpiece capacity
Max. workpiece diameter: Ø630 mm
Max. workpiece height: 900 mm
Max. workpiece weight: 400 kg
Pallet / Table
Pallet size: 400 × 400 mm
Standard pallet changer: 2 pallets
Pallet change time: 6 sec
Standard B-axis indexing: 1° × 360 positions
B-axis indexing time: 1.3 sec / 90°
Optional NC positioning table: 0.001°
Optional NC rotary table: 0.0001°
Pallet positioning repeatability: ≤4 µm
Spindle (two configurations)
12,000 rpm high-torque spindle
30 kW / 30 min; 22 kW continuous
Max. torque: 300 Nm
18,000 rpm high-speed spindle
35 kW / 30 min; 26 kW continuous
Max. torque: 168 Nm
Spindle speed range: 35–12,000 rpm or 35–18,000 rpm (depending on version)
ATC / Tool magazine
Standard magazine: 40 tools
Optional: 60 / 80 / 120 / 160 tools
Tool holder: ISO BT40
Max. tool diameter: Ø95 mm
Max. tool diameter without adjacent tools: Ø150 mm
Max. tool length: 420 mm
Chip-to-chip time: 2.7 s with tools <6 kg; 3.2 s with tools 6–12 kg
Coolant
Coolant tank: 500 L
Standard flood coolant
Spindle cooling unit included in standard specification
Chip removal
Standard: spiral conveyors on both sides of the table
Accuracy
X/Y/Z bidirectional positioning accuracy: 0.012 mm
X/Y/Z bidirectional repeatability: 0.008 mm
Electrical / air
Voltage (by destination): 200 / 220 / 380 / 400 / 415 / 440 / 460 / 480 V
Frequency: 50/60 Hz
Air pressure: 0.5–0.9 MPa
Standard air consumption: 200 L/min
Additional equipment
Coolant through spindle (CTS) options: 0.8 MPa, 1.5 MPa, high-pressure 6.9 MPa
Chip handling options: side-discharge chip conveyor, back-discharge chip conveyor
Filtration: various coolant/chip filtration systems
