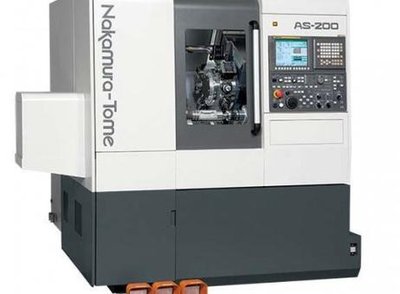

Nakamura AS-200 CNC lathe
385.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 2014 |
| Manufacturer | Nakamura |
| Model | AS-200 |
| Year | 2014 |
| Location | Croatia |
| Category | Lathes - CNC lathes |
| Turning length | 570 mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Ø above transversing slide | mm |
| Length between centers | mm |
| X-axis | mm |
| Z-axis | mm |
| Max workpiece weight | kg |
| Spindle bore | mm |
| Turning speed | 5000 rpm |
| Spindle motor power | 11 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 1660.0 × 1670.0 × 1850.0 |
| Weight | 5000 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Nakamura AS-200 |
| Last availability date | 26/08/2026 |
| Product id | P260806006 |
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 43 |
| Last activity | Aug. 27, 2026 |
| Type of CNC | Fanuc 31i-A |
| Number of turrets | 3 |
| Number of rotating tools | 6 |
| Spindle taper | ASA 6 |
| Number of tools on turret | 12 |
Opis
Nakamura AS-200 Lathe. Year of manufacture: 05/2014. Technical specifications: Travel X (mm): 202.5, Travel Y (mm): +/- 41, Travel Z (mm): 320, Spindle bore (mm): 65, Spindle speed (rpm): 4500, Spindle power (kW): 15/11, Tool changer type: BMT55, No. of tool on turrets: 24, Coolant: Yes, Chip evacuation: Yes, conveyor type, Live tooling (rpm): 6000, Tailstock: Yes, Control unit: Fanuc 0i-TD, Input device: USB / RS232 / PCMCIA. . Power status: Yes. Dimension (cm): 166 cm x 167 cm x 185 cm. Mach. weight (kg): 5000 kg. Installation, Training, Transport: According to local HFO price list. Transport cost is not included. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
