SCHUTTE AF26-8 Multispindle automatic lathe

SCHUTTE AF26-8 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
SCHUTTE
Model
AF26-8
Year
1985
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240410153
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE AF26-8
Multivřetenový automatický soustruh SCHUTTE AF26-8
SCHUTTE AF26-8 Multispindlet automatisk drejebænk
SCHUTTE AF26-8 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE AF26-8
SCHUTTE AF26-8 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE AF26-8
Tour multibroche SCHUTTE AF26-8
Viševreteni automatski strug SCHUTTE AF26-8
SCHUTTE AF26-8 Többorsós automata eszterga
Tornio multimandrino SCHUTTE AF26-8
Daugialypės automatinės tekinimo staklės SCHUTTE AF26-8
SCHUTTE AF26-8 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE AF26-8
Torno automático multifuso SCHUTTE AF26-8
Strung automat cu mai multe arbori SCHUTTE AF26-8
SCHUTTE AF26-8 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE AF26-8
SCHUTTE AF26-8 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE AF26-8
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
26 mm
Max. length
125 mm
Type of CNC
Siemens Sinumerik
-------------------
Length x width x height
4130.0
× 1588.0
× 2800.0
Weight
11100 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a SCHUTTE AF26-8 CNC multispindle automatic lathe, manufactured in 1985. The machine is designed for precision machining tasks with a maximum bar diameter capacity of 26 mm and a maximum bar feeding length of 125 mm under normal conditions. It features a CNC Siemens Sinumerik control system, allowing for complex and automated machining operations.
The lathe offers multiple slide travels: the longitudinal slide has a total travel of 125 mm with a working travel of 100 mm under normal settings, while special settings allow up to 160 mm total travel with 125 mm working travel. The cross slide includes four components with varying travel distances: the upper slide and upper central slide both have 40 mm total travel and 25 mm working travel, the lower central slide also measures 40/25 mm, and the lower slide has 50 mm total travel with 30 mm working travel.
Spindle speeds are versatile, with 49 selectable speeds across two ranges: Range I from 530 to 3750 rpm and Range II from 236 to 1700 rpm. The drive motor delivers 22 kW of power, supporting efficient machining at various speeds. Working cycle times range from a minimum of 0.67 seconds up to a maximum of 170 seconds, with normal operation between 0.95 and 106 seconds.
The machine's physical dimensions are 4130 mm in length, 1588 mm in width, and 2800 mm in height, weighing approximately 11,100 kg. It includes standard accessories such as an electric drawing and control unit, a complete threading device, eight independent frontal slides, and seven lateral slides.

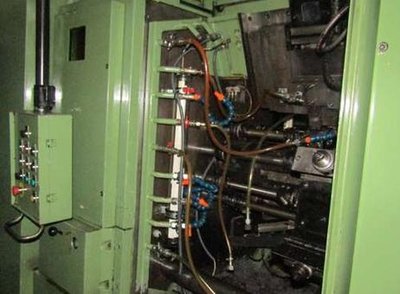

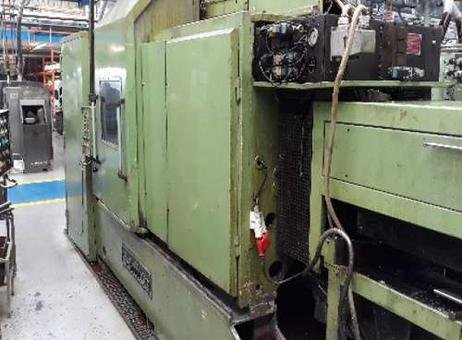

The lathe is housed in a green-painted enclosure featuring an access door and ventilation panels. Electrical components and wiring are located on the upper right side of the machine. The surface shows signs of wear and some dirt accumulation, which is typical for used industrial equipment. Overall, this SCHUTTE AF26-8 offers robust multispindle CNC machining capabilities suitable for various production needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Slide CNC X-Z in 6th position
Slide CNC X-Z to drill/mill
CNC Siemens Sinumerik
Bar size diameter 26 mm
Max bar feeding normal/special 125/315 mm
Longitudinal slide travel (tot. travel/work travel):normal 125 x 100 mm, special 160/125 mm.
Cross slide travel (total travel/work travel): Upper slide 40/25 mm, upper central slide 40/25 mm, lower central slide 40/25 mm, lower slide 50/30.
No. 49 spindle speeds. Spindle speed:Range I 530-3750 rpm, Range II 236-1700 rpm.
Working times: minimum-max 0.67/170 sec, normal 0.95/106 sec.
Drive motor power 22 kw
Length with tubes and stand 6516 mm. Standard accessories. Electric drawing and control unit. Complete threading device, No. 8 independent frontal slides, No. 7 lateral slides.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
