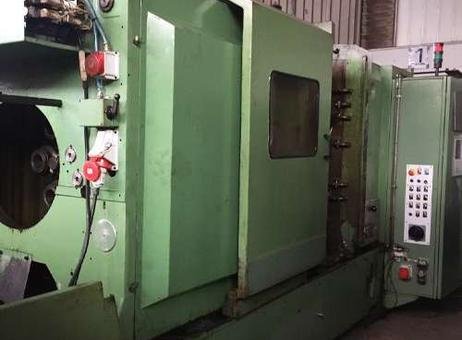

SCHUTTE SF67-6 Multispindle automatic lathe

SCHUTTE SF67-6 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
SCHUTTE
Model
SF67-6
Year
1986
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240410161
Buy this machine
Language
Language
Многошпинделен автоматичен струг SCHUTTE SF67-6
Multivřetenový automatický soustruh SCHUTTE SF67-6
SCHUTTE SF67-6 Multispindlet automatisk drejebænk
SCHUTTE SF67-6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων SCHUTTE SF67-6
SCHUTTE SF67-6 Multispindle automatic lathe
Torno multihusillos automático SCHUTTE SF67-6
Tour multibroche SCHUTTE SF67-6
Viševreteni automatski strug SCHUTTE SF67-6
SCHUTTE SF67-6 Többorsós automata eszterga
Tornio multimandrino SCHUTTE SF67-6
Daugialypės automatinės tekinimo staklės SCHUTTE SF67-6
SCHUTTE SF67-6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski SCHUTTE SF67-6
Torno automático multifuso SCHUTTE SF67-6
Strung automat cu mai multe arbori SCHUTTE SF67-6
SCHUTTE SF67-6 Многошпиндельный токарный станок
Automatski strug sa više vretena SCHUTTE SF67-6
SCHUTTE SF67-6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı SCHUTTE SF67-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
67 mm
Nbr of spindles
6
Max. length
160 mm
Type of CNC
Spindle speed
1400 rpm
Spindle power
30 kW
-------------------
Length x width x height
4610.0
× 1750.0
× 2500.0
Weight
15500 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing is for a SCHUTTE SF67-6 multispindle automatic lathe, manufactured in 1986. It is designed for machining bar stock with a maximum diameter of 67 mm. The machine features six spindles, each powered by a 30 kW motor, capable of spindle speeds up to 1400 rpm. The maximum bar feeding length is 160 mm for normal operation, with a special feeding option allowing up to 400 mm.
The lathe offers precise longitudinal slide travel, with a total travel length of 160 mm and a working travel of 125 mm. For special longitudinal slides, the total travel is 190 mm with a working travel of 150 mm. Cross slides include an upper slide with 80 mm total travel and 50 mm working travel, a central slide with 80/50 mm travel, and a lower slide with 90 mm total travel and 58 mm working travel. The machine operates with a working time ranging from a minimum of 1.4 seconds to a maximum of 560 seconds, and idle times between 1.5 and 2.7 seconds.
The overall machine dimensions are approximately 4610 mm in length, 1750 mm in width, and 2500 mm in height, with a weight of 15,500 kg. The machine length including tubes and stand is about 6830 mm.
The lathe is equipped with a control panel located on the right side, featuring multiple buttons and switches for operation. It has a safety enclosure with a window for monitoring the machining process. The machine shows visible signs of use such as scratches but appears intact. The interior, including the working area with multiple spindles and tooling components, is clean and well-maintained. Pneumatic tubes and metal mechanical parts indicate automation capabilities. This robust machine is suitable for high-precision multispindle turning operations in an industrial setting.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
Bar size diameter 67 mm
Max bar feeding normal/special 160/400 mm
Longitudinal slides travel (tot. Travel/work travel) 160/125 mm
Longitudinal slides special travel (tot. Travel/work travel) 190/150 mm.
Cross slides travel (tot. travel/work travel): upper slide 80/50 mm. Central slideb 80/50 mm. Lower slide 90/58 mm. No. of spindles speed 49
Spindles speed 90/1400 rpm.
Working time: min. 1,4 sec, max 560 sec
Idle time: min 1,5 sec, max 2,7 sec
Drive motor power 30 kw
Length with tubes/stand 6830 mm
The dimension of machine including electric cabinet. Hydraulic box, Case with accessories
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
Bar size diameter 67 mm
Max bar feeding normal/special 160/400 mm
Longitudinal slides travel (tot. Travel/work travel) 160/125 mm
Longitudinal slides special travel (tot. Travel/work travel) 190/150 mm.
Cross slides travel (tot. travel/work travel): upper slide 80/50 mm. Central slideb 80/50 mm. Lower slide 90/58 mm. No. of spindles speed 49
Spindles speed 90/1400 rpm.
Working time: min. 1,4 sec, max 560 sec
Idle time: min 1,5 sec, max 2,7 sec
Drive motor power 30 kw
Length with tubes/stand 6830 mm
The dimension of machine including electric cabinet. Hydraulic box, Case with accessories
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
