TORNOS AS 14-6 Multispindle automatic lathe

TORNOS AS 14-6 Multispindle automatic lathe
Verified seller
Price on request
Make an offer
Manufacturer
TORNOS
Model
AS 14-6
Year
Location
Italy
Category
Lathes - CNC multi-spindle lathes
Product id
P240408067
Buy this machine
Language
Language
Многошпинделен автоматичен струг TORNOS AS 14-6
Multivřetenový automatický soustruh TORNOS AS 14-6
TORNOS AS 14-6 Multispindlet automatisk drejebænk
TORNOS AS 14-6 Automatische Mehrspindel-Drehmaschine
Αυτόματος τόρνος πολλαπλών αξόνων TORNOS AS 14-6
TORNOS AS 14-6 Multispindle automatic lathe
Torno multihusillos automático TORNOS AS 14-6
Tour multibroche TORNOS AS 14-6
Viševreteni automatski strug TORNOS AS 14-6
TORNOS AS 14-6 Többorsós automata eszterga
Tornio multimandrino TORNOS AS 14-6
Daugialypės automatinės tekinimo staklės TORNOS AS 14-6
TORNOS AS 14-6 Meerassige automatische draaibank
Wielowrzecionowy automat tokarski TORNOS AS 14-6
Torno automático multifuso TORNOS AS 14-6
Strung automat cu mai multe arbori TORNOS AS 14-6
TORNOS AS 14-6 Многошпиндельный токарный станок
Automatski strug sa više vretena TORNOS AS 14-6
TORNOS AS 14-6 Flerspindlig automatisk svarv
Otomatik çok milli torna tezgahı TORNOS AS 14-6
Get price & details
+39 3 51…
Show phone
Details
About this seller
Specifications
Max. Ø
14 mm
Nbr of spindles
6
Type of CNC
Spindle speed
6000 rpm
Spindle power
5.59284 kW
-------------------
Length x width x height
2700.0
× 1000.0
× 1650.0
Weight
2200 kg
worked hours
hours under power
state
good
At local norms
---------
status
visible
Last availability date
04/05/2026
Show more
Automatic description (AI-Generated)
This listing features a TORNOS AS 14-6 multispindle automatic lathe designed for efficient and precise machining. The machine is equipped with six spindles, capable of handling bar stock with a maximum round diameter of 14 mm, square bars up to 10 mm, and hexagonal bars up to 12 mm. It accommodates a maximum feeding bar length of 75 mm, making it suitable for a variety of small to medium-sized machining tasks.
The spindle system includes 16 selectable speeds ranging from 900 to 6000 rpm, driven by a spindle motor with a power rating of approximately 5.6 kW (7.5 hp) and a speed motor operating at 1450 rpm. This setup supports up to 22 distinct production cycles, with production rates varying between 4.9 and 72 pieces per minute, corresponding to cycle times from 12.2 down to 0.84 seconds per piece. The machine features six transversal units and three independent travels for versatile machining operations.
Cam ratios are set with fixed and adjustable options: cross slides 1 through 4 have a fixed 1:1 cam ratio, while slides 5 and 6 offer an adjustable cam ratio ranging from 0.8:1 to 1.2:1. The machine includes standard accessories such as a pickup and counter driller, cams, tool holders, gears, a chip conveyor, and a short piece detector.

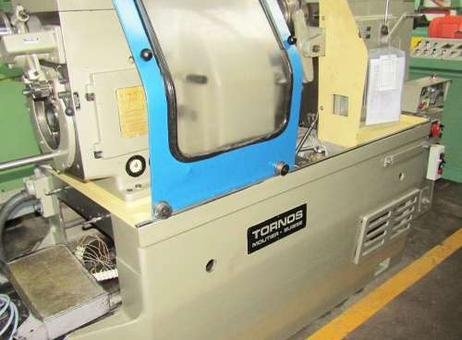

The lathe measures approximately 2700 mm in length, 1000 mm in width, and 1650 mm in height, weighing around 2200 kg. It features a beige and blue enclosure with a protective transparent window on the blue door, allowing safe observation of the spindle area during operation. The machine appears clean and well-maintained with no visible damage, reflecting good overall condition. The TORNOS industrial lathe label is visible on the base, confirming its manufacturer and model.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Show more
Seller's description
6 spindles.
Max bar size diameter: round 14 mm, square 10 mm, hexagonal 12 mm.
Max feeding bar 75 mm.
Spindle: number of speeds 16, 900-6000 rpm. 22 production cycles.
Range of production cycles: pieces/minute 4,9 a 72, seconds a piece 12,2 a 0,84.
N. 6 Transversal units.
Fixed cam ratio with cross slides nr. 1-2-3 e 4 1:1.
Adjustable cam ratio with cross slides nr. 5 e 6: 0,8:1 a 1,2:1.
Motor power 7,5 hp.
Speed motor 1450 giri/min.
N. 3 independent travel.
Machine dimensions for shipment 7.5m£. Pick up + counter driller . Cams. Tool holder. Gears. Chip conveyor. Short piece detector. Standard accessories
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
Show more
Client type
Machinery dealer
Active since
2013
Offers online
98
Last activity
May 6, 2026
ALMA SRL
Verified seller
ALMA SRL is a distinguished Italian company renowned for its innovative solutions in the field of industrial automation and technology. With a commitment to excellence and a passion for engineering, ALMA has established itself as a leader in providing cutting-edge machinery and systems that enhance productivity and efficiency across various sectors. Founded with the vision of transforming traditional manufacturing processes, ALMA SRL specializes in the design and production of advanced equipment tailored to meet the unique needs of its clients. Their extensive product range includes state-of-the-art cutting systems, automation solutions, and software applications that streamline operations and optimize performance. What sets ALMA apart is its unwavering dedication to quality and customer satisfaction. The company prides itself on its ability to deliver customized solutions that not only meet but exceed client expectations. With a team of highly skilled professionals and a robust research and development department, ALMA continuously pushes the boundaries of technology to provide innovative solutions that drive success. As a trusted partner in the industrial sector, ALMA SRL is committed to fostering long-term relationships with its clients, ensuring they receive the support and expertise needed to thrive in a competitive market. Whether you are looking to enhance your production capabilities or implement the latest automation technologies, ALMA SRL is your go-to partner for excellence in industrial solutions.
Seller's description
6 spindles.
Max bar size diameter: round 14 mm, square 10 mm, hexagonal 12 mm.
Max feeding bar 75 mm.
Spindle: number of speeds 16, 900-6000 rpm. 22 production cycles.
Range of production cycles: pieces/minute 4,9 a 72, seconds a piece 12,2 a 0,84.
N. 6 Transversal units.
Fixed cam ratio with cross slides nr. 1-2-3 e 4 1:1.
Adjustable cam ratio with cross slides nr. 5 e 6: 0,8:1 a 1,2:1.
Motor power 7,5 hp.
Speed motor 1450 giri/min.
N. 3 independent travel.
Machine dimensions for shipment 7.5m£. Pick up + counter driller . Cams. Tool holder. Gears. Chip conveyor. Short piece detector. Standard accessories
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
