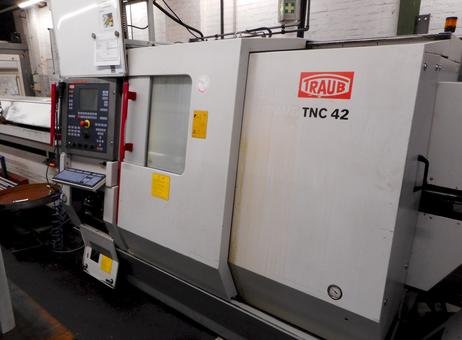

TRAUB TNC 42/65 CNC lathe
33.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Traub |
| Rok produkcji | 2009 |
| Manufacturer | TRAUB |
| Model | TNC 42/65 |
| Year | 2009 |
| Location | France |
| Category | Lathes - CNC lathes |
| Turning length | mm |
| Turning Ø | mm |
| Ø above the bed | mm |
| Type of CNC | TX8H |
| X-axis | mm |
| Z-axis | mm |
| Spindle bore | mm |
| Number of turrets | 1 |
| Number of tools on turret | 12 |
| Number of rotating tools | 12 |
| Turning speed | rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Weight | 5600 kg |
| state | as-is, where-is |
| At local norms | --------- |
| status | visible but unplugged |
| Datasheet | Traub TNC 42/65 |
| Last availability date | 08/09/2026 |
| Product id | P260701057 |
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 15 |
| Last activity | Sept. 9, 2026 |
| Spindle taper | A2-5" |
| Length between centers | mm |
| Ø above transversing slide | mm |
| Max workpiece weight | kg |
Opis
TRAUB TNC 42/65 CNC Lathe
Manufacturer: TRAUB
Model: TNC 42/65
Year of Manufacture: 2009
Technical Condition: Sold as is, on-site
Condition: Visible but disconnected
Weight: 5600 kg
Technical Specifications:
CNC Control Type: TRAUB TX8i
Number of Axes: 8
Y-Axis Travel: +/- 35 mm
Z-Axis Travel: 450 mm
X-Axis Travel: 140 mm
Z-Axis Travel: 520 mm
X-Axis Travel: 140 mm
E-Axis Travel: 450 mm
Spindle Bore Diameter: 42 mm
Maximum Spindle Speed: 5600 rpm
C-Axis Indexing Accuracy: 0.001°
Spindle power: 18.5 kW
Subspindle bore diameter: 42 mm
Maximum subspindle speed: 5600 rpm
Subspindle C-axis indexing accuracy: 0.001°
Subspindle power: 11 kW
Tool holder type: VDI 30
Turrets:
Number of turrets: 2
Number of workstations - Turret 1: 14
Number of motorized workstations - Turret 1: 14
Maximum rotating tool speed - Turret 1: 4000 rpm
Number of workstations - Turret 2: 14
Number of motorized workstations - Turret 2: 14
Maximum rotating tool speed - Turret 2: 4000 rpm
Included equipment:
- Set of Clamping collets
- Tool holder set
- Chip conveyor
- IRCO PROFIMAT ECO 42.6 bar feeder
- KNOLL coolant system
Installed power: 107 kVA
Rated current: 85 A
Supply voltage: 400 V
Technical specifications provided for informational purposes only and are not binding. Shipping available within France and internationally. Truck loading included. More photos and details available upon request. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: TRAUB
Model: TNC 42/65
Year of Manufacture: 2009
Technical Condition: Sold as is, on-site
Condition: Visible but disconnected
Weight: 5600 kg
Technical Specifications:
CNC Control Type: TRAUB TX8i
Number of Axes: 8
Y-Axis Travel: +/- 35 mm
Z-Axis Travel: 450 mm
X-Axis Travel: 140 mm
Z-Axis Travel: 520 mm
X-Axis Travel: 140 mm
E-Axis Travel: 450 mm
Spindle Bore Diameter: 42 mm
Maximum Spindle Speed: 5600 rpm
C-Axis Indexing Accuracy: 0.001°
Spindle power: 18.5 kW
Subspindle bore diameter: 42 mm
Maximum subspindle speed: 5600 rpm
Subspindle C-axis indexing accuracy: 0.001°
Subspindle power: 11 kW
Tool holder type: VDI 30
Turrets:
Number of turrets: 2
Number of workstations - Turret 1: 14
Number of motorized workstations - Turret 1: 14
Maximum rotating tool speed - Turret 1: 4000 rpm
Number of workstations - Turret 2: 14
Number of motorized workstations - Turret 2: 14
Maximum rotating tool speed - Turret 2: 4000 rpm
Included equipment:
- Set of Clamping collets
- Tool holder set
- Chip conveyor
- IRCO PROFIMAT ECO 42.6 bar feeder
- KNOLL coolant system
Installed power: 107 kVA
Rated current: 85 A
Supply voltage: 400 V
Technical specifications provided for informational purposes only and are not binding. Shipping available within France and internationally. Truck loading included. More photos and details available upon request. Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
