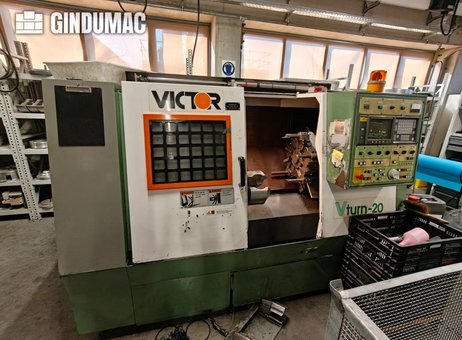

Victor Vturn-20 CNC lathe
34.00 €
Do negocjacji
| Strona główna | gebraucht |
|---|---|
| Producent | Fanuc |
| Rok produkcji | 1997 |
| Manufacturer | Victor |
| Model | Vturn-20 |
| Year | 1997 |
| Location | Netherlands |
| Category | Lathes - CNC lathes |
| Turning length | 630 mm |
| Turning Ø | 390 mm |
| Ø above the bed | 390 mm |
| Ø above transversing slide | 720 mm |
| Length between centers | mm |
| Type of CNC | Fanuc |
| X-axis | 195 mm |
| Z-axis | 600 mm |
| Spindle taper | VDI 40 |
| Spindle bore | 52 mm |
| Number of turrets | 1 |
| Number of tools on turret | 24 |
| Turning speed | 5000 rpm |
| Spindle motor power | kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | 3290.0 × 1500.0 × 1650.0 |
| Weight | 3300 kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Victor VTurn-20 |
| Last availability date | 06/09/2026 |
| Product id | P260305786 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 1990 |
| Last activity | Sept. 9, 2026 |
| Number of rotating tools | 12 |
| Max workpiece weight | kg |
Opis

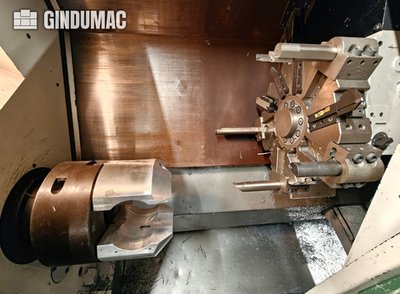

Horizontal turning machine manufactured in 1997. This Victor Vturn-20 features a maximum longitudinal travel of 600 mm and a standard turning diameter of 200 mm. It includes a turret with 10 tool positions and a spindle speed range of 42-4200 RPM. If you are looking to get high-quality turning capabilities, consider the Victor Vturn-20 machine we have for sale. Contact us for further details.Swing over bed/front cover: 450 mm
Standard turning diameter: 200 mm
Swing over carriage: 300 mm
Rapid feed: X 12 m/min, Z 15 m/min
Spindle nose: A2-6
Hole through spindle: 62 mm
Spindle bearing diameter: 100 mm
Spindle inside taper: 1/20
Turret tool positions: 10
Standard O.D. tool size: 20 mm
I.D. tool size (max): 32 mm
Tailstock quill diameter: 75 mm
Tailstock quill stroke: 80 mm
Tailstock quill taper (built-in): MT4
Center distance: 635 mm
Spindle motor (continuous/30 min): AC 10 HP / 12 HP
Feed motor: X 1.4 HP, Z 2.8 HP
Coolant capacity: 87 L
Additional equipment
Hydraulic power chuck: 200 mm (8")
Hole through power chuck tube: 50 mm
Control Brand: FANUC
Control Model: Series O-T
Counter Spindle: no
Driven Tools: no
Machine Height: 1650 mm
Machine Length: 3290 mm
Machine Weight: 3300 kg
Machine Width: 1500 mm
Number of Axes: 2
Number of Tools: 10
Spindle Speed: 4200 RPM
X-axis Travel: 135 mm
Z-axis Travel: 600 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Standard turning diameter: 200 mm
Swing over carriage: 300 mm
Rapid feed: X 12 m/min, Z 15 m/min
Spindle nose: A2-6
Hole through spindle: 62 mm
Spindle bearing diameter: 100 mm
Spindle inside taper: 1/20
Turret tool positions: 10
Standard O.D. tool size: 20 mm
I.D. tool size (max): 32 mm
Tailstock quill diameter: 75 mm
Tailstock quill stroke: 80 mm
Tailstock quill taper (built-in): MT4
Center distance: 635 mm
Spindle motor (continuous/30 min): AC 10 HP / 12 HP
Feed motor: X 1.4 HP, Z 2.8 HP
Coolant capacity: 87 L
Additional equipment
Hydraulic power chuck: 200 mm (8")
Hole through power chuck tube: 50 mm
Control Brand: FANUC
Control Model: Series O-T
Counter Spindle: no
Driven Tools: no
Machine Height: 1650 mm
Machine Length: 3290 mm
Machine Weight: 3300 kg
Machine Width: 1500 mm
Number of Axes: 2
Number of Tools: 10
Spindle Speed: 4200 RPM
X-axis Travel: 135 mm
Z-axis Travel: 600 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
