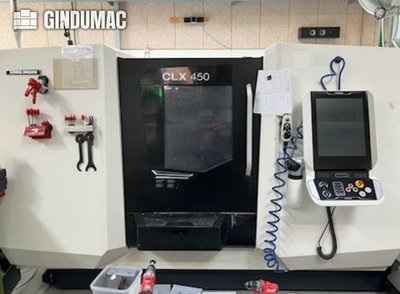

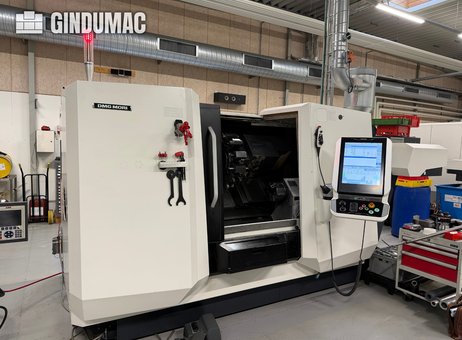

DMG MORI CLX 450 V6 CNC lathe
34.00 €
Договірна
| Стан | gebraucht |
|---|---|
| Виробник | DMG |
| Рік виробництва | 2019 |
| Manufacturer | DMG MORI |
| Model | CLX 450 V6 |
| Year | 2019 |
| Location | Denmark |
| Category | Lathes - CNC lathes |
| Turning length | 185 mm |
| Turning Ø | 170 mm |
| Ø above the bed | 800 mm |
| Ø above transversing slide | 590 mm |
| Length between centers | 890 mm |
| X-axis | 160 mm |
| Z-axis | 32 mm |
| Max workpiece weight | kg |
| Spindle bore | 75 mm |
| Turning speed | 3500 rpm |
| Spindle motor power | 12 kW |
| Tailstock | no |
| Bar feeder | no |
| Length x width x height | - × - × - |
| Weight | kg |
| state | as-is, where-is |
| At local norms | --------- |
| Datasheet | Dmg Mori CLX 450 V6 |
| Last availability date | 05/10/2026 |
| Product id | P261002195 |
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2050 |
| Last activity | Oct. 7, 2026 |
| Type of CNC | FANUC 0iMATE-TD |
| Number of turrets | 1 |
| Number of rotating tools | 12 |
| Spindle taper | ASA 5 |
| Number of tools on turret | 5000 |
Опис
This 4-axis DMG MORI CLX 450 V6 was manufactured in 2019. It features a maximum Z-axis travel of 830 mm and X-axis travel of 750 mm, along with a counter spindle capable of 5000 rpm. The machine includes a bar package, pneumatic workpiece ejection device, and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V6 horizontal turning machine we have for sale. Contact us for further details.Counter spindle: A2-6, 5000 rpm
Tailstock function for counter spindle
Alternating speed cycle (control function)
Hand wheel
Additional equipment

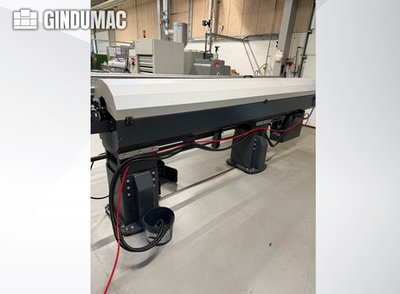

Bar package and bar feeder interface
Hainbuch Spanntop NOVA combi pull-back, size 80 (main spindle collet chuck)
Pneumatic workpiece ejection device for counter spindle
SMW BB-D 210 for counter spindle (chuck)
High-pressure coolant, 12 bar
Coolant spray gun
Marposs manual tool measuring probe
Chip conveyor
Bar feeder (will follow)
All tool holders shown in pictures (will follow)
Control Brand: SIEMENS
Control Model: 840 D Operate 4,7
Counter Spindle: yes
Driven Tools: yes
Number of Axes: 4
Tool Stations: 12
Spindle Speed: 4000 RPM
Taper Size: VDI 40
X-axis Travel: 750 mm
Y-axis Travel: 120 mm
Z-axis Travel: 830 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
